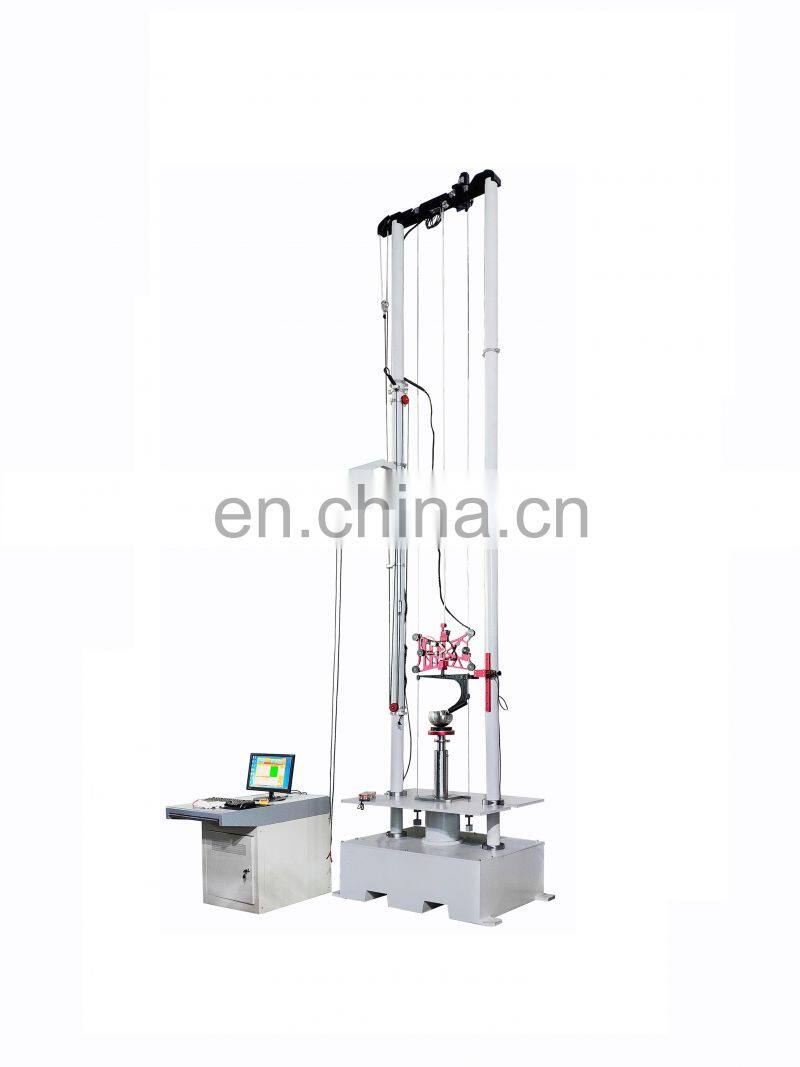

Motorcycle Helmet Impact Attenuation Testing Machine for DOT/JIS 8133/ECE R22.05 Testing

Motorcycle helmet Impact Attenuation Testing machine for DOT/JIS 8133/ECE R22.05 Testing

Advantage :

1. The impact attenuation testing equipment can meanwhile do many testing standard , for example: DOT, ECE R22.05, JIS T8133, IS4151,SLS517 etc testing standard, just change the testing fixture , testing headform and acceleormeter etc , It's can save the costs for the customer, when the customer need do extended test , needn't to extra purchase .

2. The testing system use the computer control , all the testing opeate will in the computer and it's very easy customer to opeate

all the history data will save in the computer, customer will want checking the testing data can direct input the testing NO can checking.

When we do testing, the computer will real time display testing curve , easy customer to checking

Testing purpose

It's for helmet impact test, estimating the impact resistance of a helmet, full computerized, the drop weight raised and lowered to a specified height, the comuter exhibits the changing height with time, acceleration , HIC , action time and impact energy. this machine has good degree of reliability, high accuracy.

The mianly technical Parameter

Testing lab site requirement :

1. Lab room environment temperature: room tempeature 25±2

2. Electricity: 1 phase  220V 50HZ

3. Air source: ≥7kg

4.Lab room height requirement: at least 5.8~6 meter

5.Testing machine Placed position: the better is closer the wall , because the machine is high, we need to do fixed , the machine need connect to wall and fixed , it's let the machine more stable

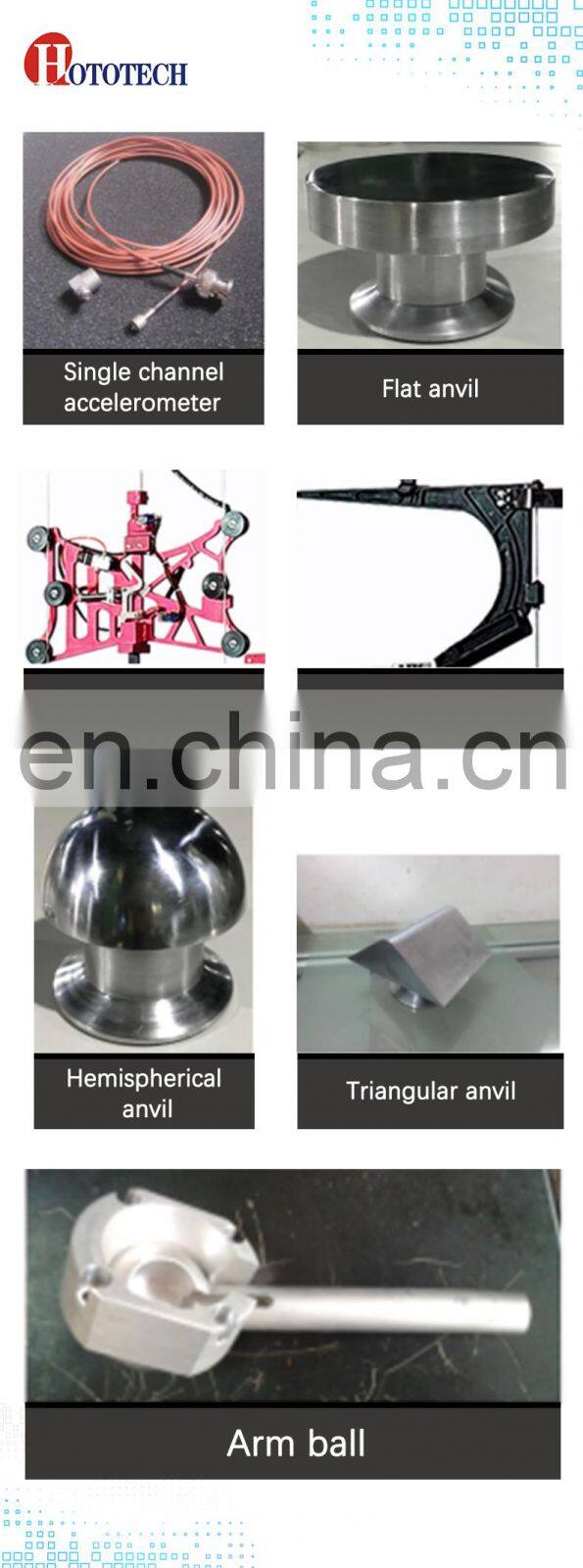

The Mainly Accessories
