Home > Instruments & Meters > Test Instrument > Test Machine > NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment

NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment

NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment photo-1
NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment photo-2
NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment photo-3
NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment photo-4
NEW According to IEC61215 Standard Requirement Wet Leakage Current Testing Machine Wet Leakage Current Testing Equipment photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Other
Year Established:
2014
Annual Export Value:
US$50 Million - US$100 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Product Description



HTPV-07A

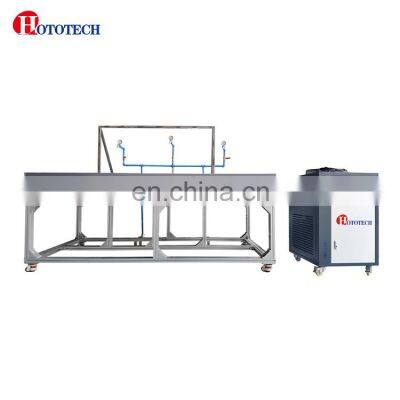

Name :Wet Leakage Current Testing Machine



Standard:According to IEC61215 standard requirement

Purpose:

to evaluate the insulation of the module under wet operating conditions and verify that moisture from rain, fog, dew or melted snow does not enter the active parts of the module circuitry , where it might cause corrosion, a ground fault or a safety hazard

Technical specifications:

Test tank size 2100×1000×250mm(W*D*H)
thickness 15mm
material plexiglass
Temperature control 22±3℃
Liquid resistivity less than 5030Ω·cm
Spray system UL laboratory special nozzle 3 pieces
Programmable insulation withstand voltage tester Output current  0-5000V (adjustable)
 Leakage current limit value:5mA
Output speed rate 500V/S
 Insulation resistance test range 1MΩ~9999MΩ
Leakage current test range 0.001~5.000mA(DC)
Main configuration
 Insulation withstand voltage tester

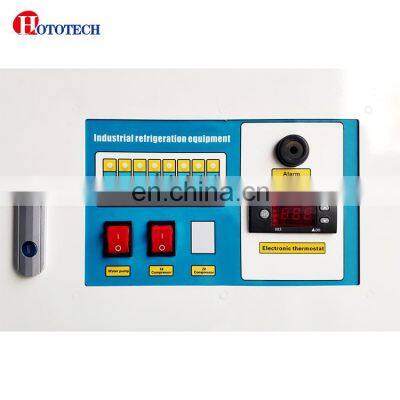

Water constant temperature system (control box)
Spray frame
Insulation water tank
conductivity meter
Sample frame





 NEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipment

about us

NEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipment

company introduce

NEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipmentNEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipmentNEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipmentNEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipmentNEW According to IEC61215 standard requirement Wet leakage current testing machine Wet leakage current testing equipment

Q&A

FQA :

-Can the equipment be customized?

 Provide technical specifications and standards, customized

-About warranty?

 Our quality is trustworthy, but we promise a one-year warranty.

-Worried not to use?
 We will have professional technicians to guide us remotely. If you like, you can also teach on site.
