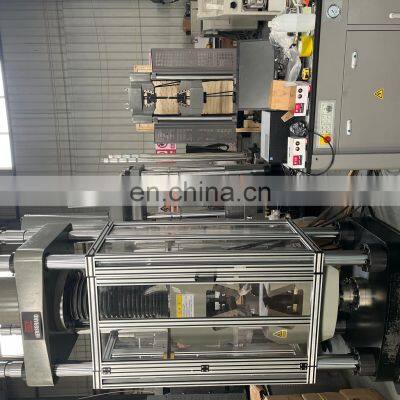

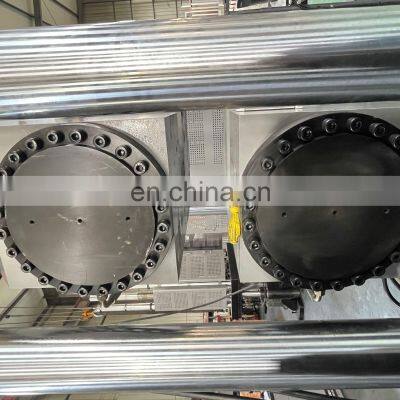

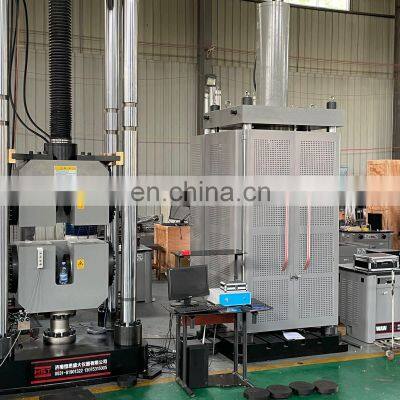

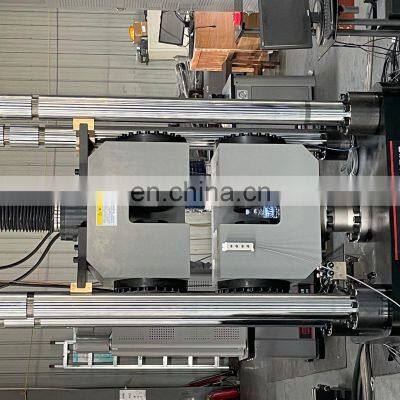

WAW--3000Q 3000kn Computer Automatic Single Pull Tensile Test Equipment

Model

WAW-300F

WAW-600F

WAW-1000F

WAW-2000F

WAW-3000F

Max. Load capacity(kN)

300

600

1000

2000

3000

Structure

Four column

Accuracy of testing load(%)

±0.5

Accuracy of deformation(%)

±0.5

Test Range

1%-100%

Deformation measurement range

1%-100%

Posion rising speed(mm/min)

0-250

0-250

0-150

0-100

0-100

Piston descending speed(mm/min)

0-250

0-250

0-180

0-100

0-100

Test Force Loading Rate Range

0.02%-2%FS/s

Host structure

2

4

4

4

4

Max. Tensile space(mm)

400

580

680

800

800

Max. Compression space(mm)

300

460

520

520

520

Actuator stroke(mm)

370

580

680

800

800

Max. Loading speed(mm/min)

100

100

75

50

100

Distance between columns(mm)

500

490x330

660x400

800x400

900x540

Clamping method

Hydraulic Automatic Clamp With Wedge

Round insert(mm)

10-32

10-40

15-60

15-70

15-70

Flat insert(mm)

2-25

2-30

2-40

10-70

10-70

Compression platens(mm)

120

150

200

240

240

Dimensions of load frame(mm)

880x630x2980

880x630x2980

980x720x3530

1220x880x4180

Weight(kg)

1500

3000

5000

8500

11500
