Product Description

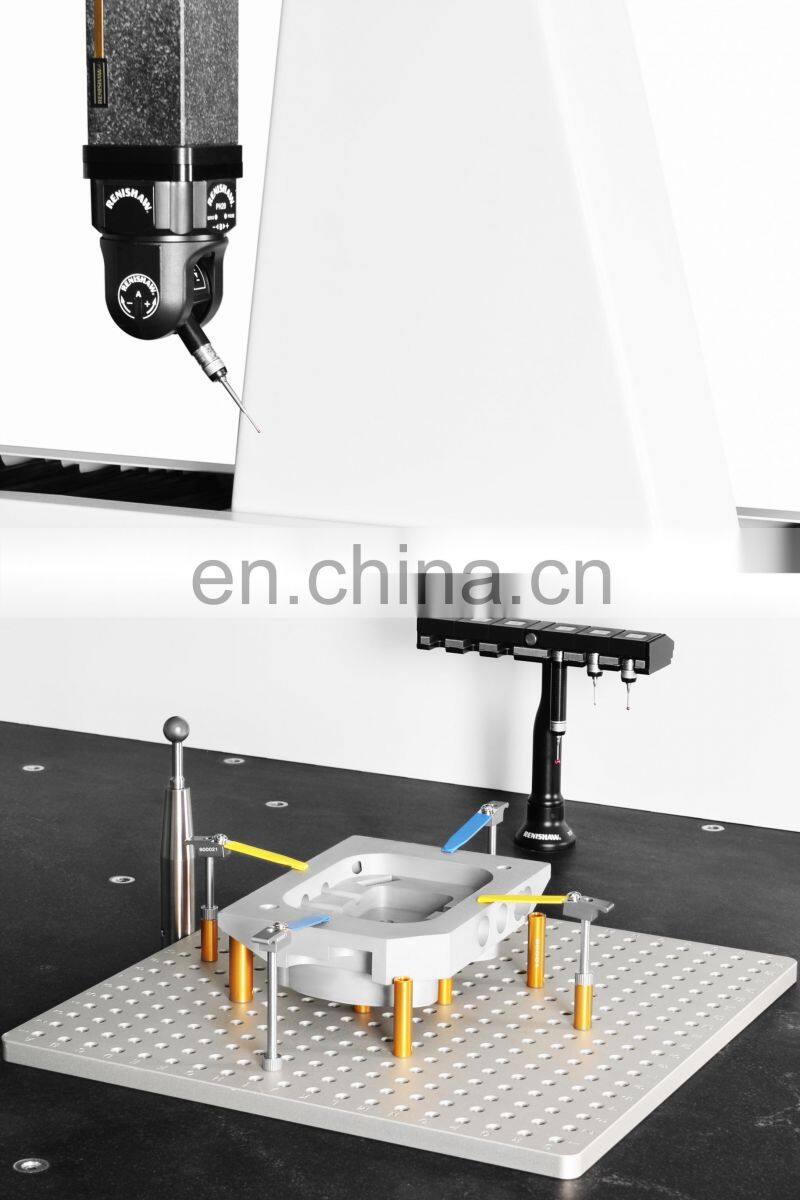

KASON Scale Resolution 0.1um PH20MT Probe 3D Coordinate Measuring CMM Machine
Machine
HST series coordinate measuring machine combines single-point probing and analog scanning in a single high performance measuring machine, can also be equipped with contact and non-contact probe system. Based on the new generation of controller, combines and optimizes temperature and accuracy compensation systems and advanced algorithms to support high-speed, high-accuracy analog open and closed loop measurement.
Design Characteristic
- Granite fixed worktable, all three axes are made of high performance granite, good temperature characteristic, has the same coefficient of thermal expansion.
- Granite worktable with integral "dovetail" guide in X axis, eliminate the pitch and yaw, also provides superior motion stability.
- Z axis air-balance with self-protection, improve motion capability.
- High precise, rigid, and pre-loaded air bearings on all axes, can ensure the guidance never be damped
- RENISHAW steel scale
- Famous parts from all over the world are used in every important sub systems
- High performance granite fixed worktable and all three axes are made in TAIWAN.
- RENISHAW scale and readhead,Resloution:0.5um
- Pneumatic system made
- Pricision filter
- Full screen and high soft cable towline
Specification:
CODE | 20031501 |
Model | YIHUI 575S |
Resloution(um) | 0.5 |
Indication Error(um)* | 3.5+4L/1000 |
Measurement Error(um) * | 3.5 |
Measuring Range(Dx*Dy*Dz, mm) | 500*700*500 |
Load Capacity(kg) | 1000 |
Dimension(Lx*Ly*Lz,mm) | 1217*1788*2466 |
Weight(kg) | approx. 1000 kg |
* All data tested according to Standard DIN EN ISO 10360-2.
