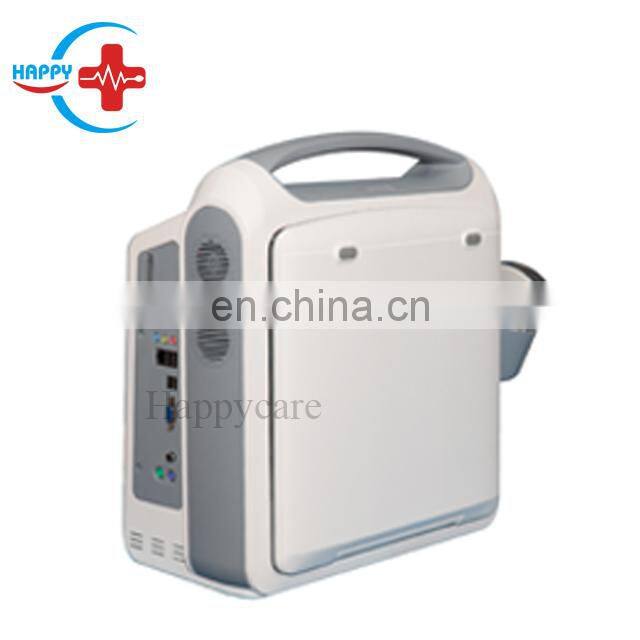

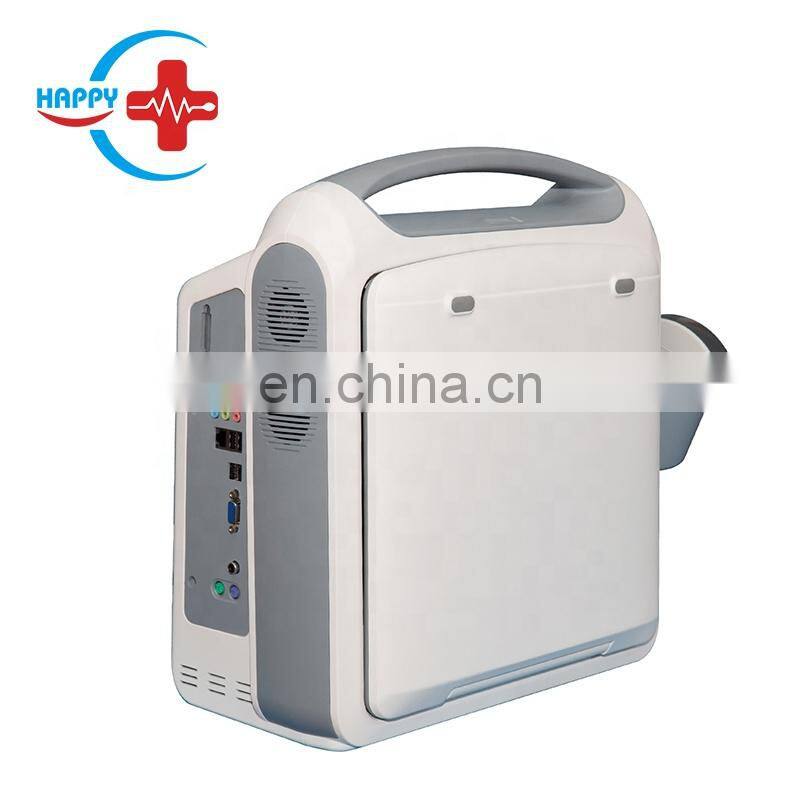

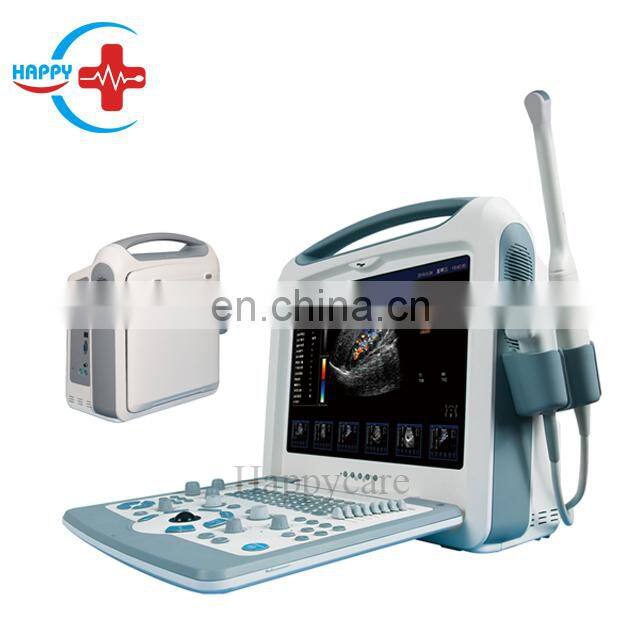

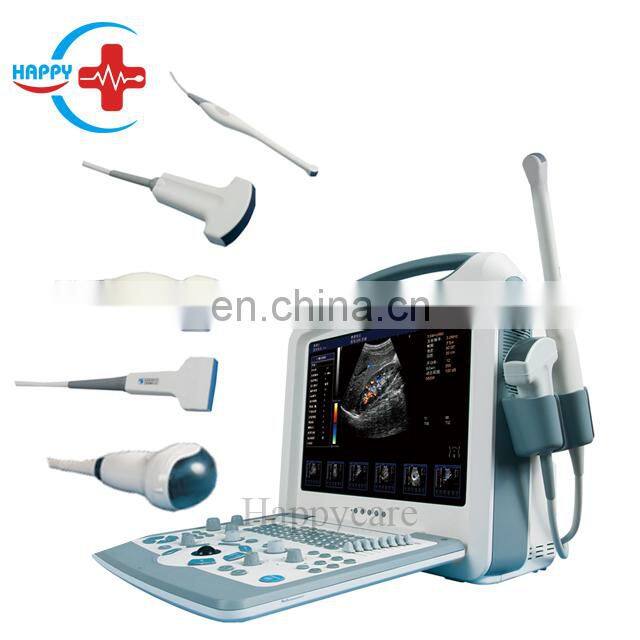

HC-A013 Medical 15 inch LCD color Doppler 2D ultrasound machine Laptop ultrasound scanner with linear probe

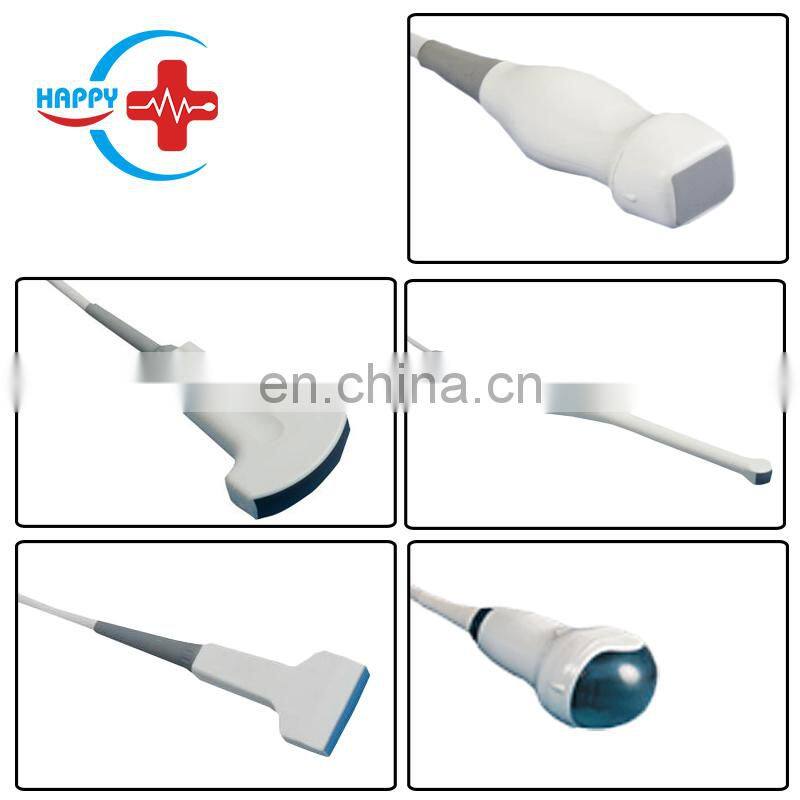

Configuration	Probes	5 Step Multi-frequency	Image
Standard:	3.5Mhz abdominal probe	2,3,3.5,4,5.5Mhz
Options:	3.5MHz phase array probe	2.0,3.0,3.5,4.0,5.5Mhz
	7.5Mhz linear probe	5,6,7.8,9,10Mhz
	6.5Mhz transvaginal probe	5,5.5,6.5,7.5,9Mhz
	4D probe	2.0,3.0,3.5,4.0,5.5Mhz

2.Technical specifications:

Displaying mode

B,BB,4B,BM,M,PW,B/C,B/C/D,B/D,duplex, triplex, part zoom, CFM, CPA

Signal processing:

Full-digital beam forming, dynamic filter, space-time filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, gray scale 256, receiving signals dynamic range≥150, All diginal, real-time dynamic focusing, dynamic apeture in all fields

Image processing

Image persist

THI

Speckle-reduction

Color coder,

Power adjustable

Multi-frequency

Smoothing function

Edge enhancement

Image optimizing disposal

One-key optimization

Probe mark

Image conversion

Up/down conversion

Left/right conversion

Doppler Sound output volume adjustable

Wall filter adjustable

Base line adjustable

Sampling frame adjustable

Area changeable(angle changeable)

Spectrum sampling volume adjustable

Spectrum sampling volume angle adjustable

PRF adjustable

Image processing:

Gain control

TGC, PW Gain, CFM gain

General measurement

B mode-distance, circumference, area, volume, ration, angle, % stenosis, histogram

M mode- distance, time, velocity, heart rate

OB packages:

EDD table :GS ,BPD, CRL,FL,HL,TAD,LV,OFD,NT,AC,HC,AFI

GA and EDD calculated by LMP, BBT calculate GA and EDC, Fetal physiological score, Fetal growth curve

OB measuring and calculation report

Gynecological packages



Uterine measurement (Cervical length, endometrial thickness, uterine volume)

left/right ovary measurement (Length, high, width)

left/right follicular measurement

Gynecological measuring and calculation report

Urology packages:

left/right kidney measurement

vesicant urinary /After voiding bladder measuring

Urology measuring and calculation report

residual urine’s measurement

Anthology packages:

Prostate

Testis

Anthology measuring and calculating report

PPSA,PSAD calculation

Peripheral vascular measurement

% stenosis, Diameter stenosis rate, Peripheral vascular measuring and calculating report

Small parts Measurement

Thyroid,Mammary gland,Mass,Small parts measuring and calculating report

Multiple Births measurement



Orthopedic surgery measurement

Left/right hip

Cardiac Measurement Package

Heart rate, Valve speed, LV, aortic, mitral, ventricular

Doppler Measurement

Time

Heart Rate

Velocity

General Measurement

Doppler automatic measurement

Doppler tracing (auto/manual)

Body mark

Abdominal,Anthology,Cardiology,Gynecology,Musculoskeletal,Obstetrics,Pediatrics

Small parts,Urology

Comment and display

Real time clock,Comment in image area,Scanning density,TI value,MI value

Cine loop

Automatic cine loop frames, Replay of stored screen frames, Selection of replay speed, Frame replay, Replay stored files,

Cancel, replay, pause control

Image storage format

BMP,JPEG,PNG,DICOM,

SSD

60G

Installed work station

OB report,

GYN report

Urology report

Anthology report

Cardiac measurement - LV report

Cardiac measurement - mitral report

Cardiac measurement - Ventricular report

Small parts measuring report

Peripheral vascular measuring report

Diagnostic template

Printing report

Input/output ports:

VGA

USB port

DICOM port(network port)

RS232

Laser printer (option)

Video printer (option)

Standard Configuration

Main Unit, 15 inch high definition color LCD, 3.5MHz multi-frequency, 2 probe connectors, User’s Manual,

Option

Probes, trolley, video printer, laser printer, puncture guide standard



The familiar windows XP system makes the system intuitive and easy to use. Flexible design allows system to be used conveniently.
