VET-A020V Livestock Digital Vet Ultrasound Scanner/Portable Cattle Ultrasound Machine

Features for VET-A020V Livestock Digital Vet ultrasound scanner/Portable Cattle Ultrasound Machine:

 Technical Specification

 *Adopt ARM7 Embedded Control Systems and proprietary miniaturization technology of ultrasonic hardware system.

 *5.7" High resolution color LCD, high brightness, high contrast, wide visual, suitable for outdoor use  Language: Chinese/English switchable.

*Single probe socket, automatically identify the probe, support several optional probes.

* Body mark: 1. general use   2.bovine   3.canine 4.equine 5.feline 6. Cardiology, 7.swine---7 kinds, total 27 pcs of body marks with probe position.

* Display mode:B,2B,4B ,B/M,M, total 5 kinds.

* 8 kinds of Magnification, maximum display depth is 240mm.

* Gain range:0~127dB

* Dynamic range:27~90dB

* Gray:256

 *Cine loop:256 frames.

 * Puncture guiding function( 2 guiding lines, angel and position adjustable)

 *Probe model:electronic convex and linear

 *Elements of probe:80

 *USB port support one-key storage image to USB and color laser printer directly print various image and reports.

 *Dual-mode TV output:PAL/NTSC, connecting to thermal printer and ultrasonic working station.

 *Net weight:1.1kg.

 *Main unit size: 155x180x80mm(length x width x height).

*Intelligent TGC control: near-field and far-field adjustmen

*Adjustable and intelligent focus.

 *Frame frequency:30 frames/second.

Pseudo-color: 8 kinds (incl. B/W).

 *Permanent image storage: 100 frames.

Measurement and analysis:

General measurement:distance,Perimeter, area (trace method, ellipse method), volume, etc.

Other measurement: Automatically calculate the Back fat and Lean percentage of swine .

 OBreport function

 Automatically save the last parameters, customer can directly use it on next time.

 lmage storage:

100 frames permanent image storage, without loss when power off.

USB port support one-key storage image to U disk

Power supply:

Battery: high-capacity lithium Battery( 2400MAh) . Two pcs battery can work  than 5 hours.

 Power:AC110/230 -15%~+10%(self-adaption supply voltage) 60/50Hz±1Hz.

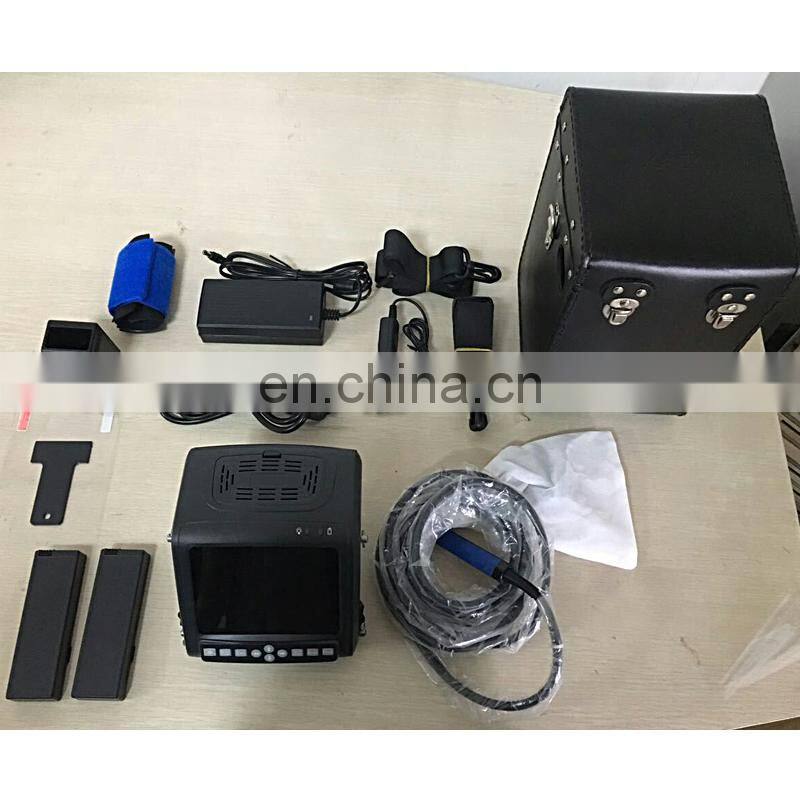

 Standard configuration:

 Main unit: 1 pc

6.5MHz linear rectal probe : 1 pc

 Power adapter: 1 pc

 Internal battery : 2 pcs

The leather Case: 1 unit

Base Charger, belt, bracket, shutter release: 1 pc for each.

Optional configuration:

 Probe:

 4.0Mhz multi-frequency convex rectal Probe

 7.5MHz multi-frequency linear probe

 6.5MHz multi-frequency micro-convexprobe

 3.5MHz multi-frequency convex probe

 6.5MHz multi-frequencytrans-vaginal probe

 goggles

 USB flash disk

 Thermal printer (P93W-Z)

 Battery(2400mAH)

 Mouse

 Black suitcase

 Introducer

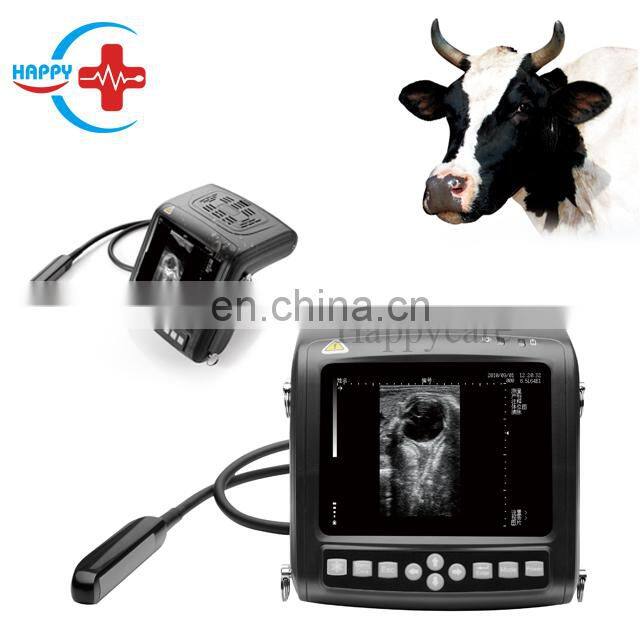

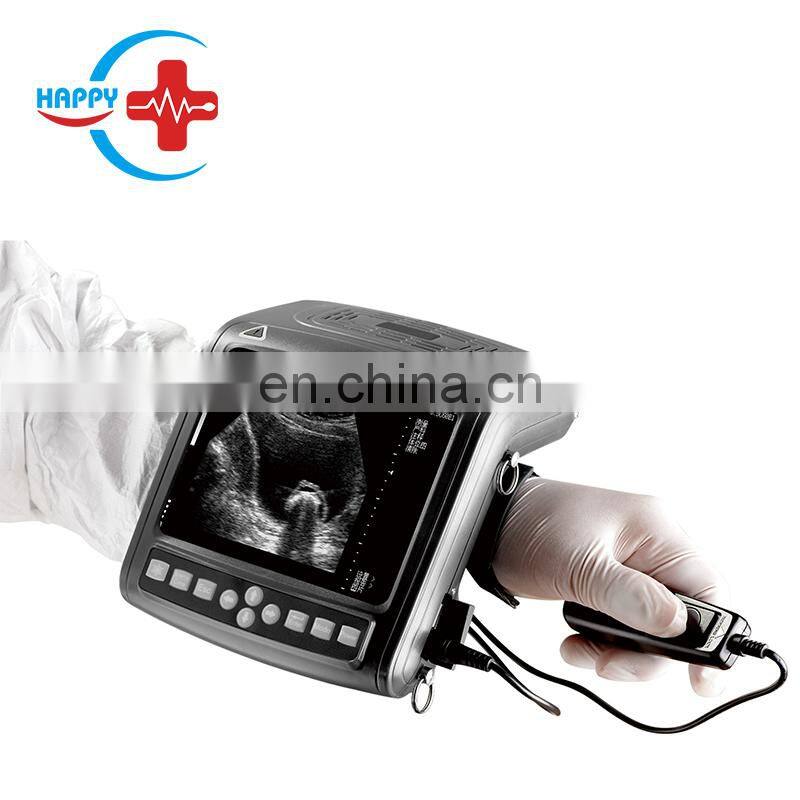

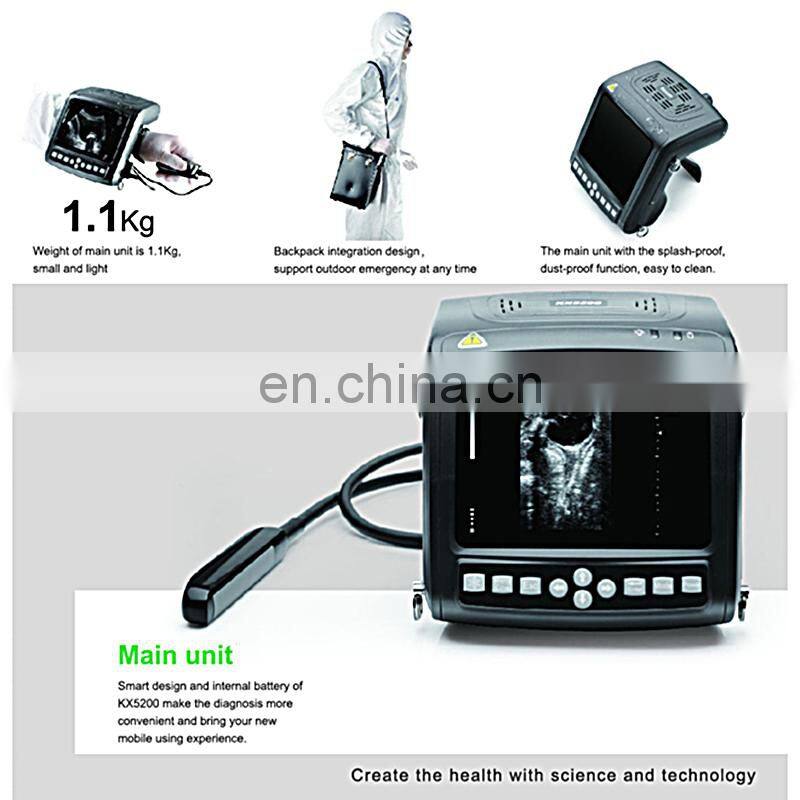

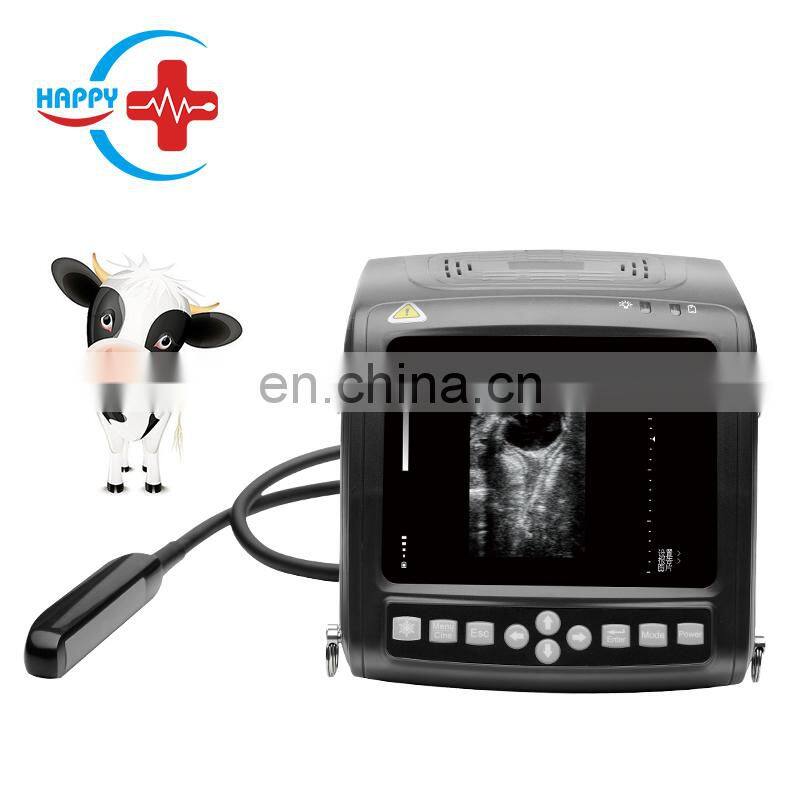

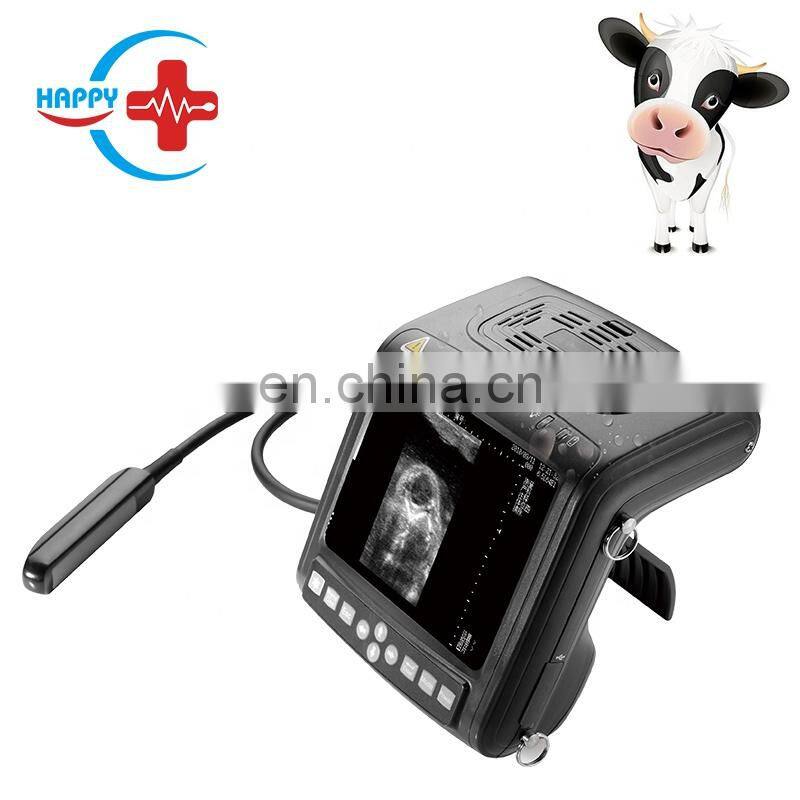

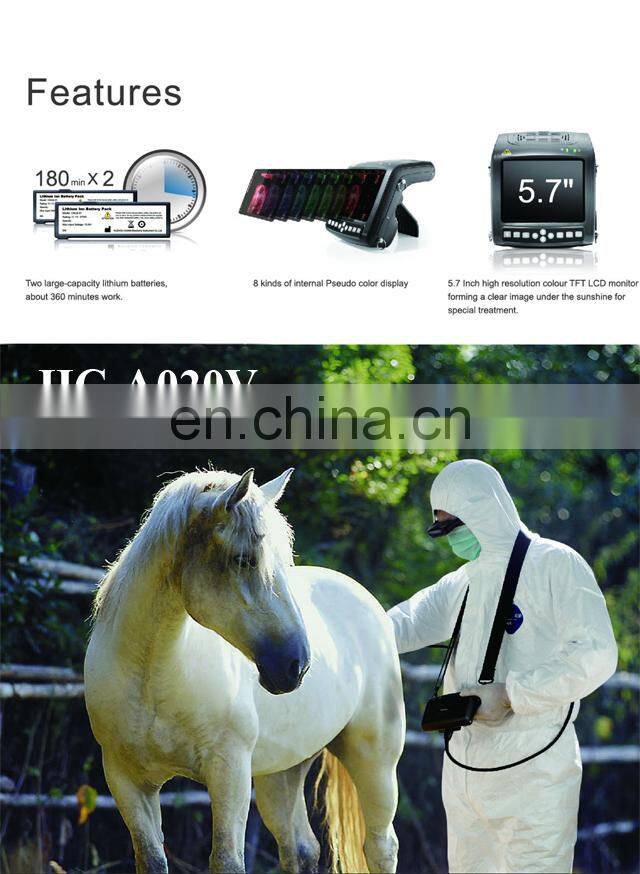

Pictures for  VET-A020V Livestock Digital Vet ultrasound scanner/Portable Cattle Ultrasound Machine:
