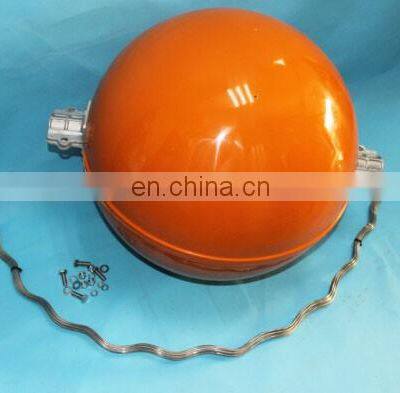

High-voltage Overhead Lines Fiberglass Reinforced Plastic Aviation Warning Balls Aerial Marker Balls photo-2
High-voltage Overhead Lines Fiberglass Reinforced Plastic Aviation Warning Balls Aerial Marker Balls photo-3
High-voltage Overhead Lines Fiberglass Reinforced Plastic Aviation Warning Balls Aerial Marker Balls photo-4
High-voltage Overhead Lines Fiberglass Reinforced Plastic Aviation Warning Balls Aerial Marker Balls photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
2000
Annual Export Value:
US$50 Million - US$100 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description

High-voltage overhead lines Fiberglass reinforced plastic aviation warning balls Aerial Marker Balls

Why should high-voltage overhead lines be equipped with fiberglass reinforced plastic aviation warning balls?

High-voltage overhead transmission lines spread throughout cities and villages, crossing highways and bridges, and passing pedestrians and vehicles at night often lead to vicious accidents due to poor prevention. The lack of warnings on the lines and the lag in equipment technology are important reasons for the numerous occurrences of high-voltage accidents.

fiberglass reinforced plastic aviation warning balls (overhead transmission line warning device) is installed on high-voltage overhead transmission line roads specially used as a night high-voltage warning marker. It is the newest type of high-voltage warning installation in our country, and its performance indicators have been tested and approved by the national authority to reach the domestic leading level. The product is directly installed on the conductor of the overhead transmission line. The eye-catching color enables the passing people and vehicles to be detected early and prevented in time, thereby reducing the occurrence of power grid safety accidents.
Opearation
Visible Distance
1200mm
Voltage Range
35KV-1000KV
Conductor Diameter
6.5-55mm
Working environment temperature:
-40℃-+90℃, can be used in very harsh environments.
Mechanical Structure

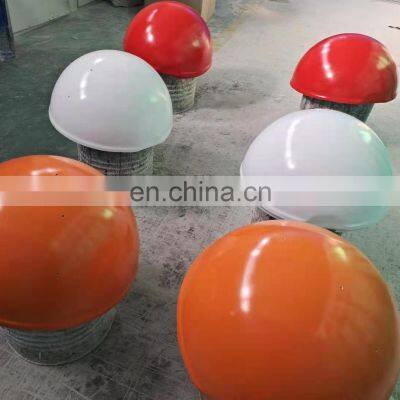

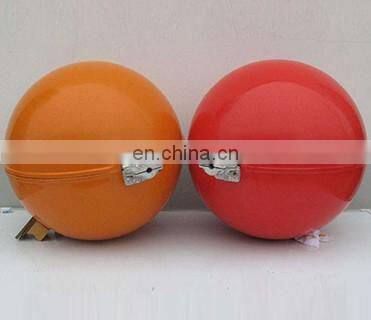

Color
Orange,Red,White,Orange/White,Red/White
Sphere body
FRP(Fiberglass Reinforced Polyester)

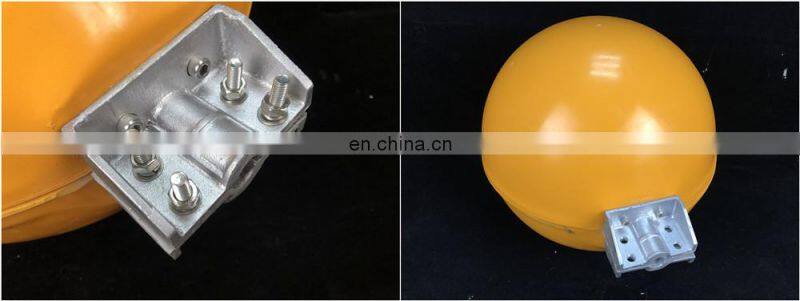

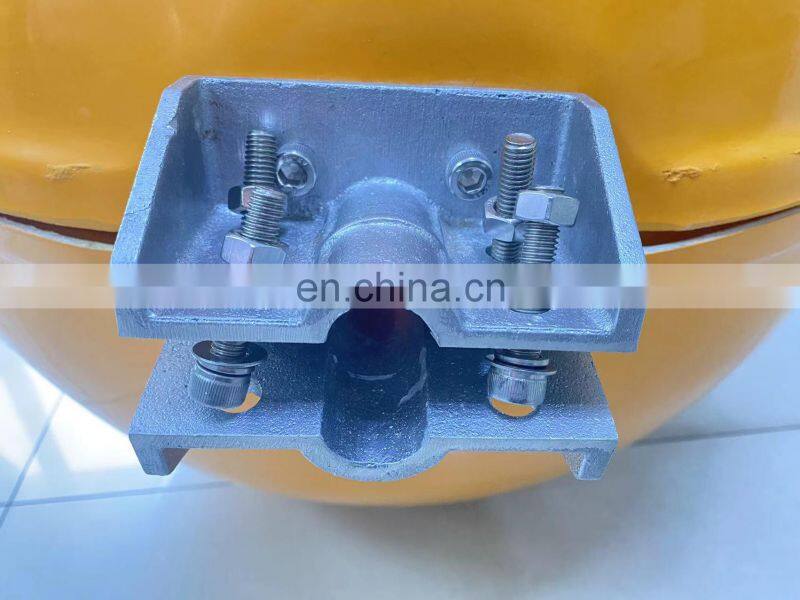

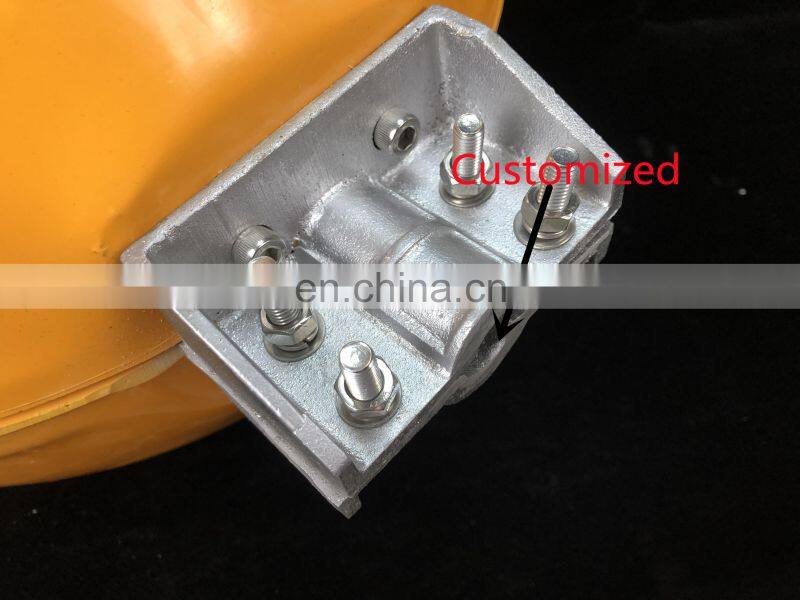

Cable Clamp
Aluminum alloy
Clamp wire Diameter
wire diameter Φ14-Φ30 including Armour rods or customized according to the size.
Bolts/Nuts/Washers
Stainless steel 304
Diameter
•300mm/400mm/600MM/800mm/1000mm/1200MM
•340(Rotational)
Weight
6.9KG/9.0KG
Thickness
3mm
Drain Holes
Yes
Tensile strength
≥128MPa
Bending strength
≥230MPa
Barcol hardness
≥44
Optional

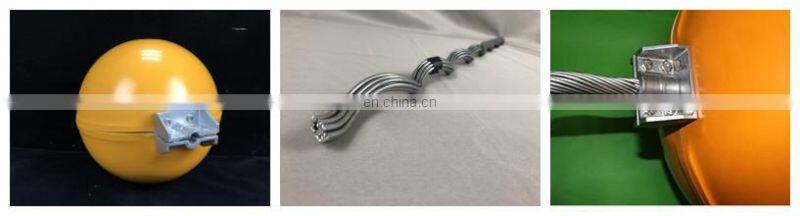

•Prefromed Armor Rods •Reflective Strip
Warranty
2Years
Product Specialties

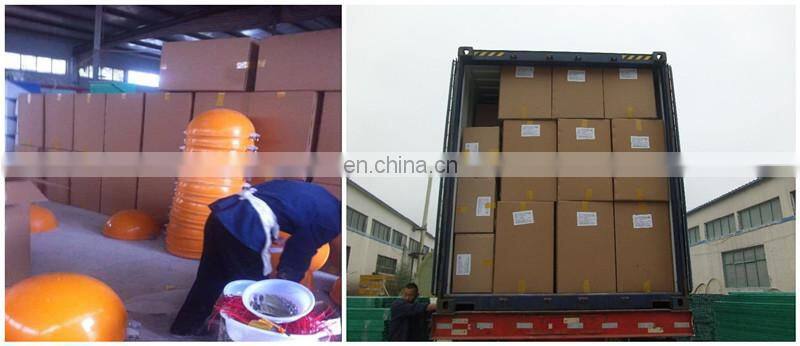

Packing & Delivery
