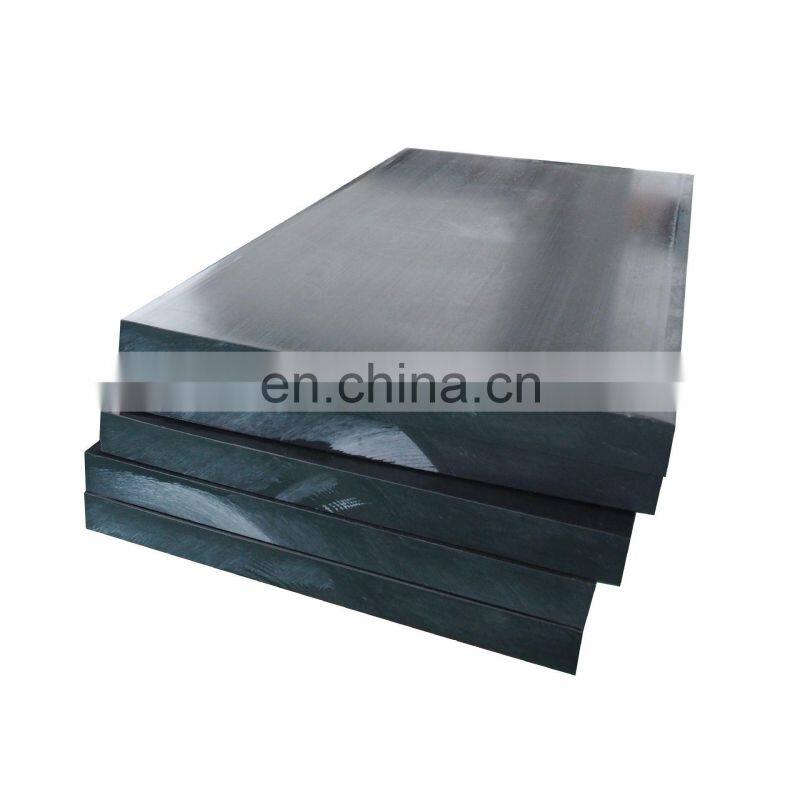

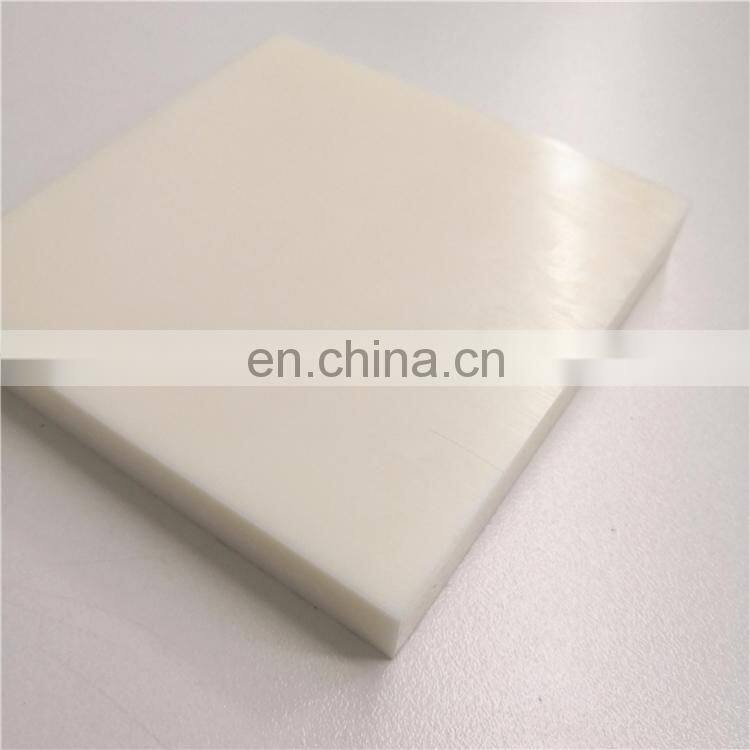

Anti-Static ESD POM Acetal Delrin Sheet ESD POM Sheet
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
White Color Polypropylene PP Welding Plastic Rod
-
PETG Plastic Sheet 3MM
-
Wholesale Factory Directly Economic ODM/OEM Engineering Plastics Copolymer Material Cast POM Sheet
-
Wholesale Hoja de PTFE Factory Direct OEM Machining Parts PTFE Sheet and Rod
-
Wholesale Factory DirectIy Selling ABS Engraving Sheet ABS Double Color Sheet
-
Wholesale Factory DirectIy Selling Traffolyte Laser Engraving Sheet ABS Double Color Sheet Traffolyte Sheet
Product Description
Product Description
Material Introduction:

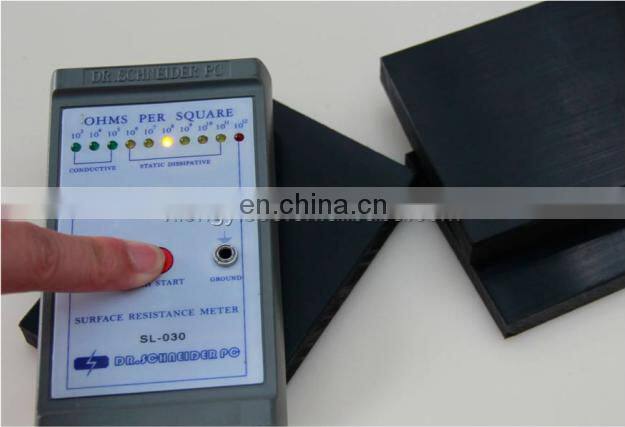

ESD POM is a kind of antistatic materials which is made by POM acetal. The working temperature is -40-100℃.ESD POM provided stable and uniform antistatic value. The surface and volume resistivity value is 106-109Ω. And the antistatic value will not changed after machining or surface grinding. This materials is suitable for automatic lathe machining, especially suitable for the manufacture of precision parts.
Material | POM (Polyoxymethylene, Polyacetal, Delrin) | |||
Thickness | 5-100mm | |||
Size | 600 x 1200mm, or custom size | |||
Color | Natural/Beige, White, Black | |||
Certificate | RoHS, SGS test report | |||
Formation Way | Extrusion | |||
OEM & ODM | Feasible | |||

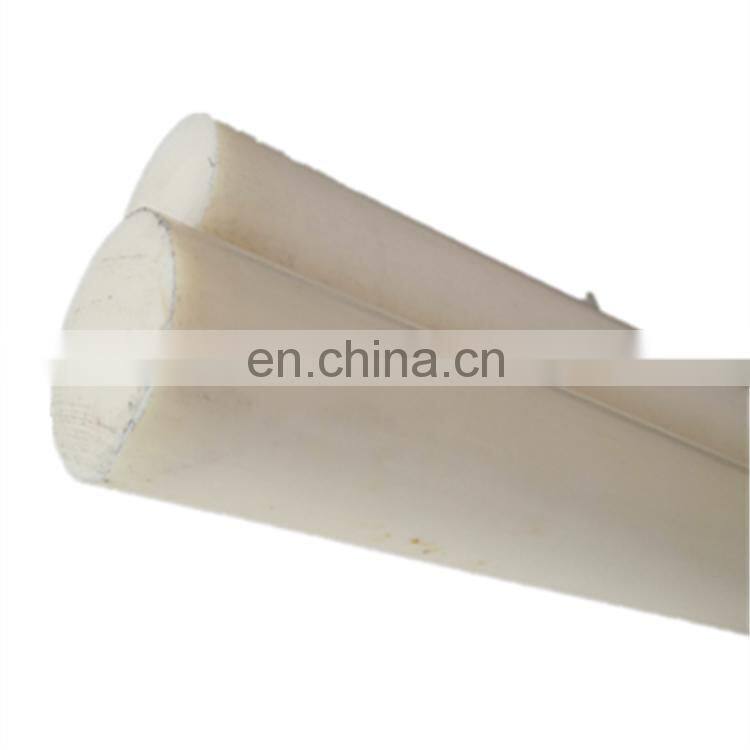

Types | Rods ,sheets | |||
MOQ | 1000kgs per color per spcification per item (no MOQ requirement on stocks) | |||
Advantage | One stop procurement | |||
Advantages:
1. Good wear resistance, high rigidity, high hardness.
2. Good mechanical properties, does not crack during processing.
3. Good self-lubricating properties.
4. Non-absorbent, stable dimension.
5. High creep resistance, Good fatigue resistance.
6. The dielectric constant and dielectric loss only changed a little when working in a wide frequency and temperature range , it
maintained a good arc resistance.
2. Good mechanical properties, does not crack during processing.
3. Good self-lubricating properties.
4. Non-absorbent, stable dimension.
5. High creep resistance, Good fatigue resistance.
6. The dielectric constant and dielectric loss only changed a little when working in a wide frequency and temperature range , it
maintained a good arc resistance.
Applications:
1. Semiconductor test fixture, semiconductor crystal manufacturing equipment parts.
2. The wafer processing jig, sensitive electronic components, the hard disk drive parts.
3. The printed circuit boards, high-precision automated fixtures.
4. The installation of electronic equipment, fixtures, rails, trays, pads, bushings, linings, wheel roller, etc.
2. The wafer processing jig, sensitive electronic components, the hard disk drive parts.
3. The printed circuit boards, high-precision automated fixtures.
4. The installation of electronic equipment, fixtures, rails, trays, pads, bushings, linings, wheel roller, etc.
