High Thermal Conductivity 3240/ FR4/ G10 Fiberglass Sheet
- T/T Credit Card

You May Like
-


Electrical Insulation Materials G10 Sheet /FR4 Fiberglass Epoxy Board
 -


Insulated Materials Fiberglass Epoxy Plate FR4/ G10 Copper Sheet/ Board
 -


Yellow Epoxy Glass Cloth Laminated Board/ 3240 Epoxy Fiber Glass Sheet
 -


Black Fiberglass Epoxy Resin Board FR4/ G10 Sheet
 -


FR4 Copper Clad Laminate Sheet Copper Sheet Fr4 Sheet Prices
 -


0.3mm Mica Plastic Laminate Sheet Mica Board Mica Sheet Prices

Product Description
High Thermal conductivity
FR4/G10/3240 Epoxy resin fiberglass sheet

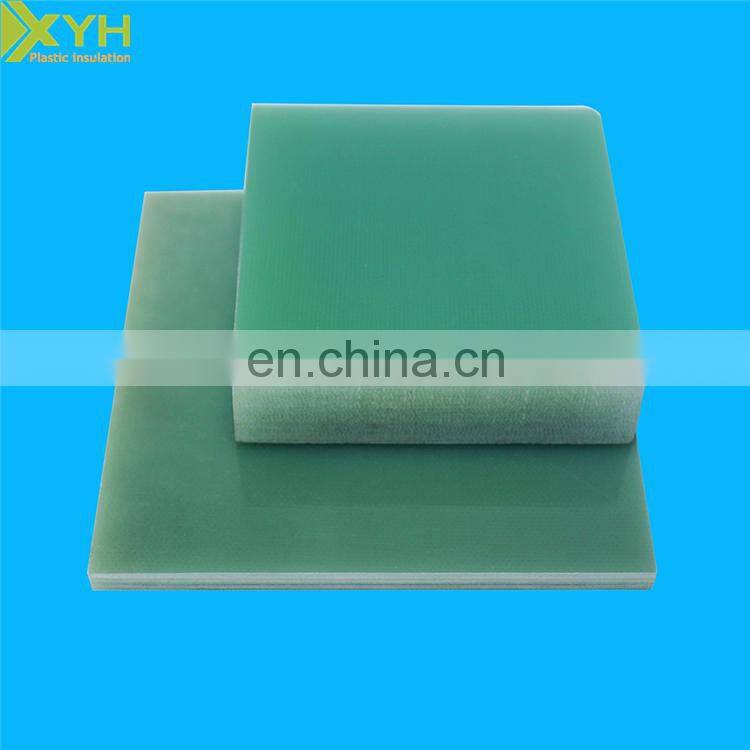

Description of FR4 G10/3240 Epoxy resin fiberglass Sheet:
Epoxy Sheet, also known as insulation sheet, fiberglass sheet, and Epoxy sheet, it is made of alkali-free E-glass cloth impregnated with epoxy resins by processing under heat and pressure. It owns the character of high temperature resistance, High-intensity, Flame-retardant grades to UL94-V0, high mechanical properties and dielectric properties, good heat resistance, good-smoothness, etc.
Product Type: Epoxy fiberglass laminate sheet
Material: Flame- Retardant Epoxy Resin + Fiber glass Fabric


FR-4 insulating fiber glass sheet plastic laminated plate , plastic fiber glass sheet
1) FR-4 Epoxy Glass Cloth was the plate laminated products which made of the special electronic materials such as cloth dipped in epoxy phenolic resin by high temperature, high pressure and hot pressing.
2)Thermal grade: Grade B.
3)Thickness : 0.2-50mm
4)Size: Width/Length(mm) 1020*2040mm ,1020*1200mm

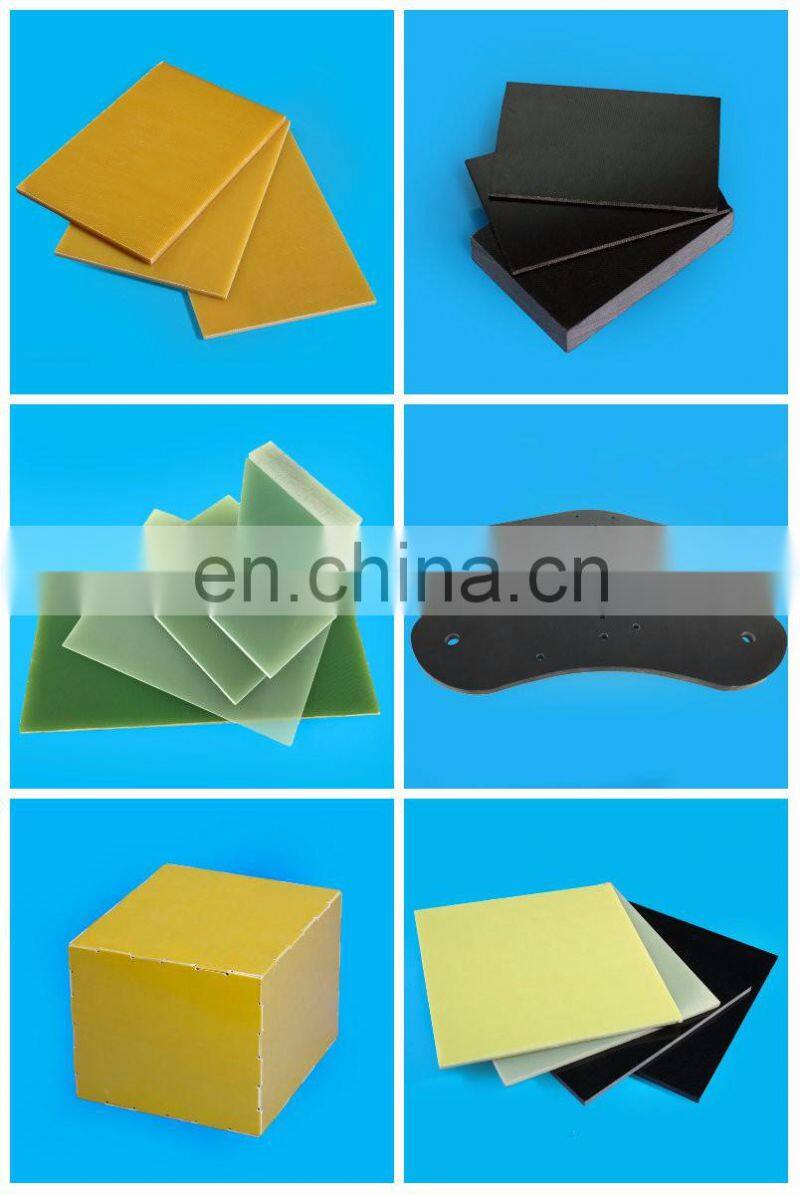

5)Color: Green/black
6)Temperature grade: B grade(130℃), A grade(200-250℃)

Applications of FR4 Epoxy Sheet:
Used in mechanical, electrical and electronic insulation structure parts.
Used in Chemical machine parts.

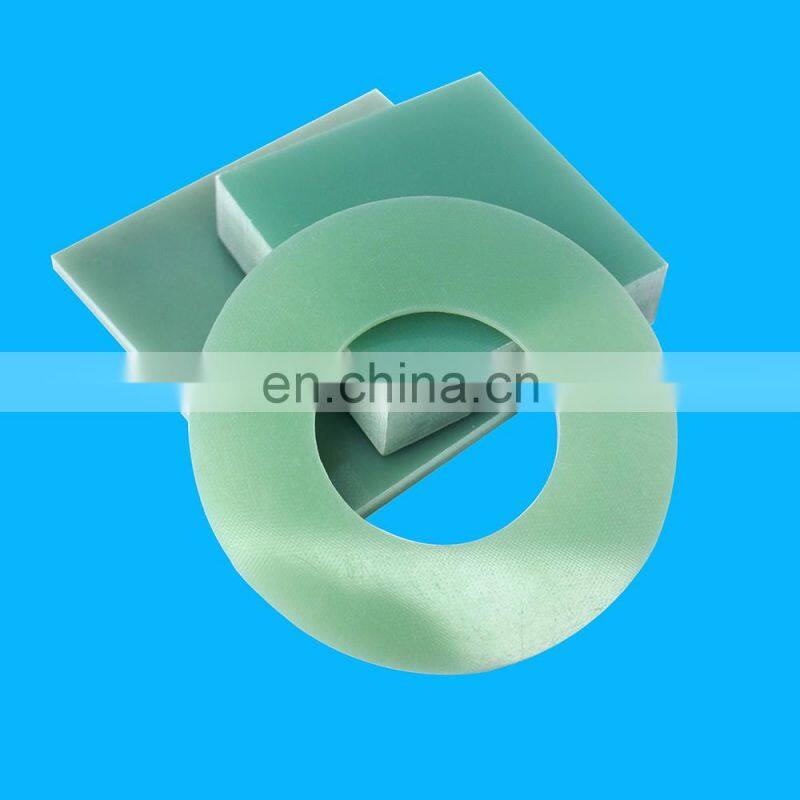

Used in General machines parts and gear, generators, Pads, base, baffle,Generator, transformer, fixture, inverter, motor.

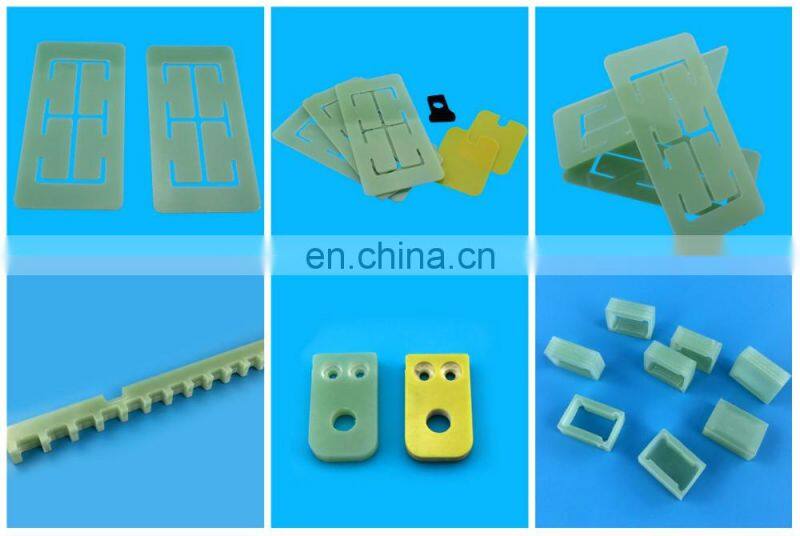

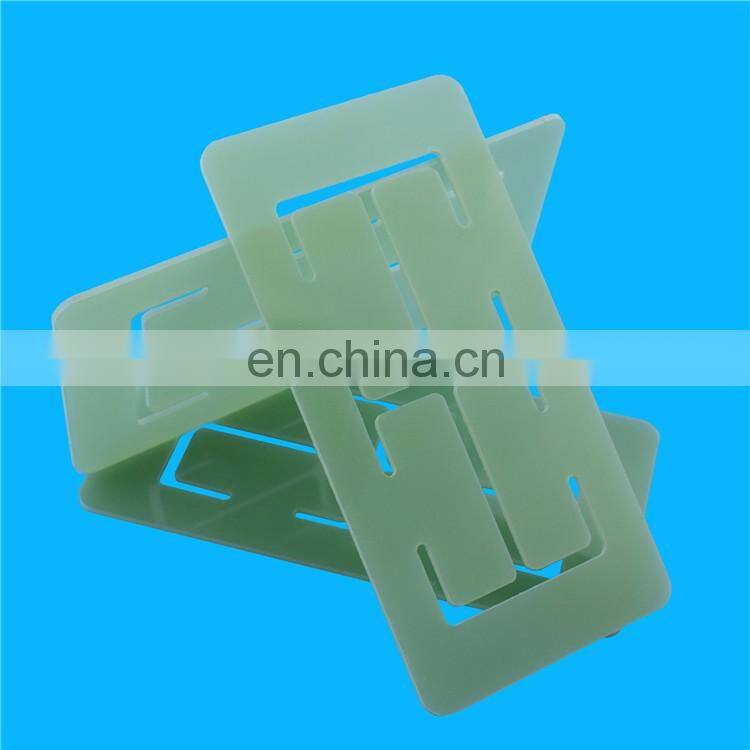

Processing customized of FR4 Epoxy Sheet:
Factory direct sale, different sizes and parts are available.Please contact with our sales department directly with supplied CAD or 3D drawings, our professional engineering team will quote for you.
G10 and FR4 Epoxy glass laminated sheet:
G10 / EPGC201 and FR4 / EPGC202 Epoxy glass laminated sheet are electrical alkali-free glass woven fabric base impregnated epoxy resin binder by processing under pressure and heat, which have extremely high mechanical strength, good dielectric properties, good electric strength properties and fine heat and humidity resistance. In addition, FR4 sheet has anti-fire property.
Technical Data of FR4 G10 Epoxy resin fiberglass Sheet:
ITEM  | UNIT  | G-10/FR-4  |
Density  | g/cm3  | 2.2  |
Application Temperature (controller)  | ℃  | 203  |
Water Absorption  | %  | <1.8  |
Flammability(UL94)  |
  | V-0  |
Vertical Bending Strength  | MPa  | ≥340  |
Vertical Compression Strength  | MPa  | ≥350  |
Tensile Strength  | MPa  | ≥300  |
Insulation resistance≥  | Ω  |
  |
Under normal condition  | 1×1012  | |
After Impregnated In water  | 5×1010  | |
Relative Dielectric Constant≤ (1MHz/50Hz)  | -  | 5.5  |
