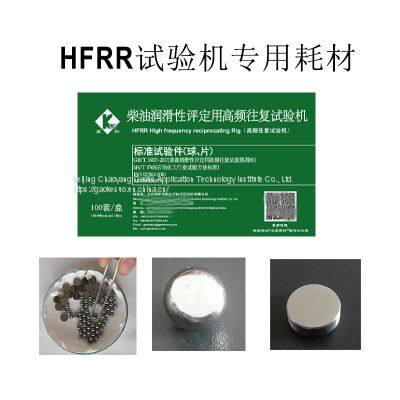

HFRR Specimens (standard Specimen Pack) Are Sold as a Pack of 100 Upper and 100 Lower SpecimensUS$ 1300 - 1500MOQ: 1 Bag
-
Lubricity, HFRRNegotiableMOQ: 1 Set
-
ASTM D6079 HFRR Full Automatic Evaluating Lubricity of Diesel Greasy Property Tester High Frequency Reciprocating RigmethodNegotiableMOQ: 1 Set
GK HFRR has more than 260 systems worldwide and is a rising star in the analysis of diesel lubricity industry. GK is a Chinese manufacturer of HFRR instruments. With more than 10 years of development experience and continuous improvement in design, quality and user experience, we are always at the forefront of the market.
GK instruments are test instruments that meet the following standards: ISO 12156, ASTM d6079 and ASTM d7688.

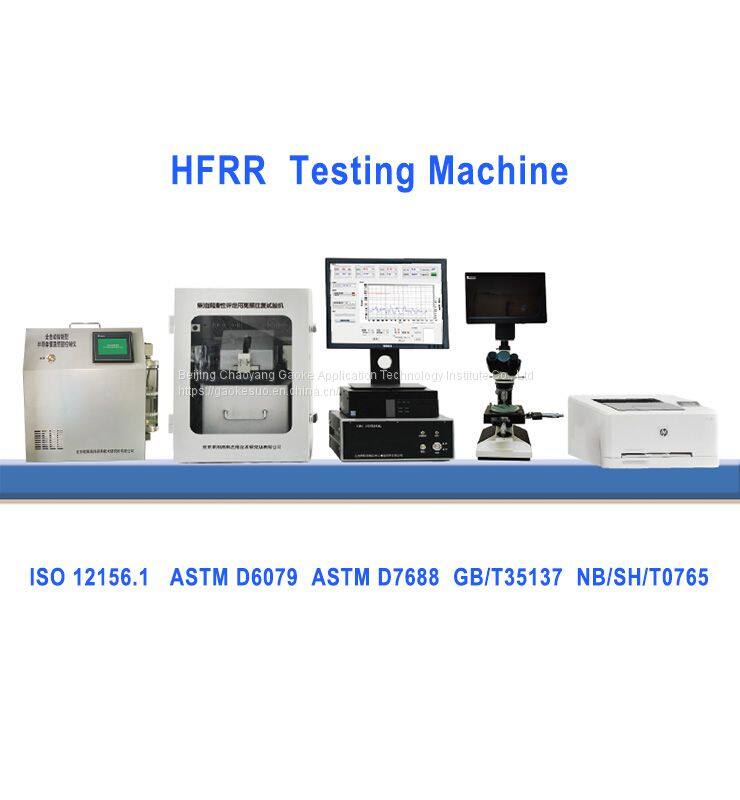

Our latest version of the HFRR allows for fully automated testing. A wide range of accessories are available, including the humidity cabinet and temperature control unit (TCU). These enable labs, operating even in harsh conditions, to meet the requirements of the standard diesel fuel lubricity test methods.
The instrument’s ability to collect continuous friction measurements, the wide range of specimen materials available, and the ability to customise test parameters also make the HFRR a popular choice for tribology research.
Load | 1 - 10 N |
Contact Pressure | Up to 1.4 GPa |
Frequency | 10 - 200 Hz |
Stroke Length | 20 µm to 2.0 mm |
Temperature Range | Ambient to 150°C |
Test Sample Volume | 2 ml |
Power Supply | 100-240 V, 50/60 Hz, 80 VA |
Weight (Control Unit) | 8kg/18lb |
Dimensions (h x w x d) (Control Unit) | 150mm/6" x 305mm/12" x 380mm/15" |
Weight (Mechanical Unit) | 24kg/53lb |
Dimensions (h x w x d) (Mechanical Unit) | 195mm/8" x 150mm/6" x 330mm/13" |
CMS series HFRR lubricity tester has participated in ASTM D6078 proficiency testing provider for many times. The verification result is due to the same type of instrument data.
CMS instrument contact: gaokesuo@gaokesuo.com
