End Caps for Filter Anti-finger Metal Cover for Filters

Air filter cartridge end caps/filters parts/metal stamping parts

Dongjie Manufacturers components to suit for all types filters in sheet metal, pressed, cast, machined and in galvanized, anti-fingerprint and plastic material. We have been specialized in the metal filter end caps for decades. A wide range of end caps for filters, the filtration industrial is our core-business, and we are able to advice customers on the best material proper thickness opt for.

Filter End Caps/Filter Parts/Stamping Parts Specifications

Feature:

(1) Suitable for the filtration of very fine dust type in welding fumes Mechanical processing, pharmaceutical and construction industries And sticky dust collection.

(2) Spun bonded polyester with PTFE membrane, micro-spore Offers 99.99% filter efficiency.

(3) Wide pleat spacing and smooth, hydrophobic PTFE provides excellent particle release.

(4) Excellent resistance to chemical erosion.

(5) Elector-chemical plate/stainless steel top and bottom, no rust Perforated zinc galvanized metal inner core allows good airflow.

(6) Accurate size, beautiful and generous products.

(7) High-quality raw material, a wide range of products, quality stability.

(8) Fast delivery time, after-sale protection.

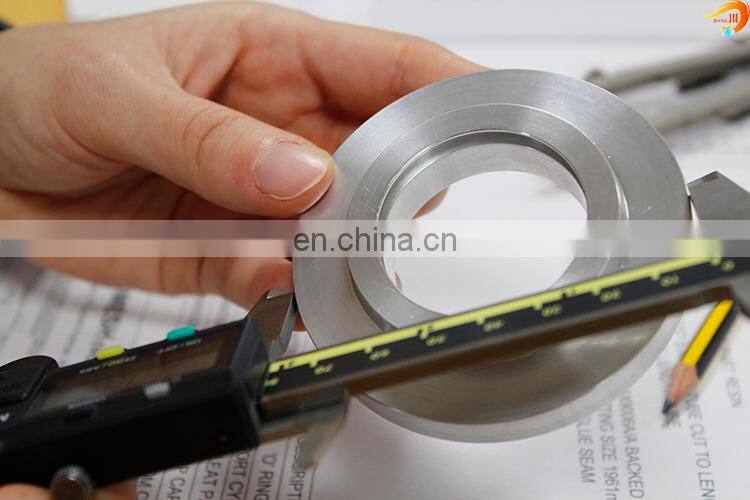

 A part of filter end caps details

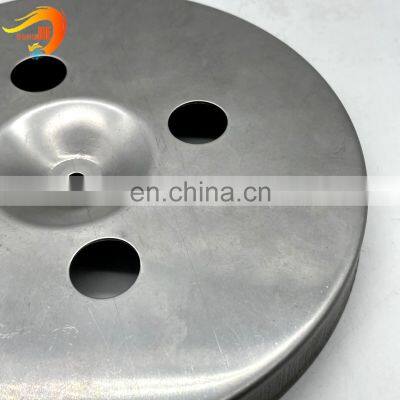

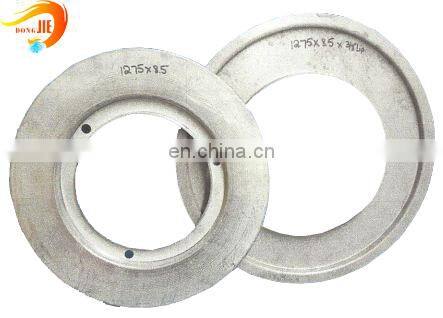

	Open Round End Cap with Tri-Bolt Holes
		Inches	Millimeters
	Outer diameter	12.75	323.85
	Inner diameter	8.5	215.9
	Inner height	0.54	13.716
	Outer height	0.5	12.7
	Inner rim diameter	6.75	171.45
	Open Round End Cap with Outer Lip
		Inches	Millimeters
	Outer diameter	12.75	323.85
	Inner diameter	8.5	215.9
	Inner diameter	0.625	15.875
	Outer height	0.368	9.3472
	Lip	0.375	9.525

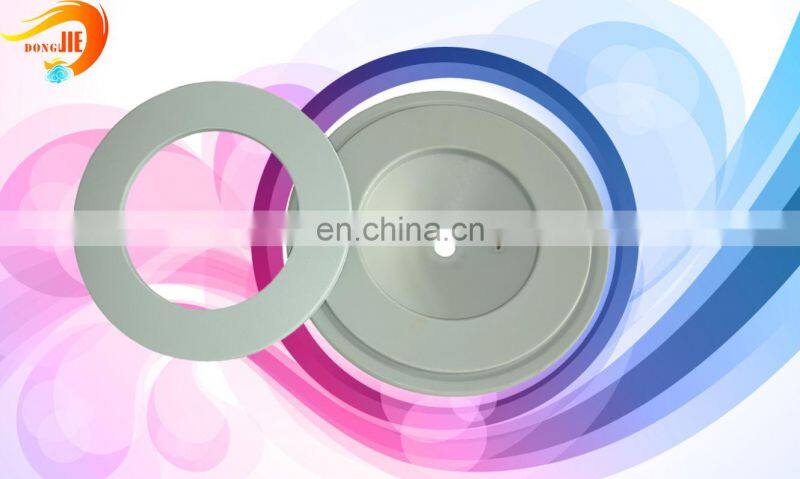

	Open Round End Cap
		Inches	Millimeters
	Outer diameter	12.75	323.85
	Inner diameter	8.5	215.9
	Inner height	0.5	12.7
	Outer Height	0.5	12.7

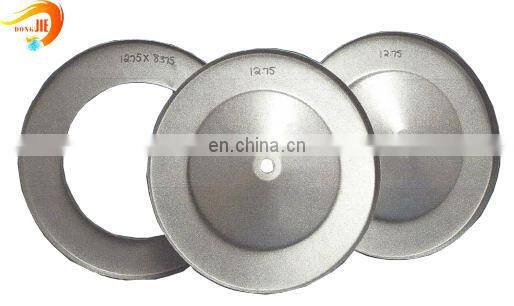

	Closed Round End Cap
		Inches	Millimeters
	Outer diameter	12.75	323.85
	Inner diameter	8.375	212.725
	Inner height	0.5	12.7
	outer height	0.5	12.7

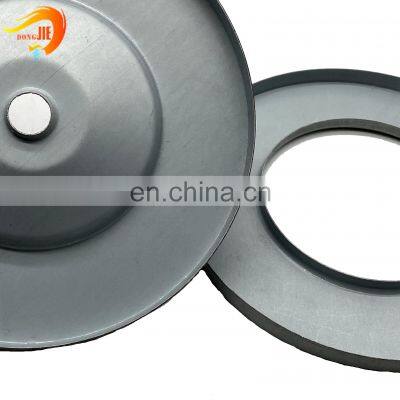

	Closed Round End Cap with Bolt Hole
		Inches	Millimeters
	Outer diameter	12.75	323.85
	Inner diameter	8.375	212.725
	Inner height	0.5	12.7
	Outer height	0.5	12.7
	Bolt Hole	0.625	15.875

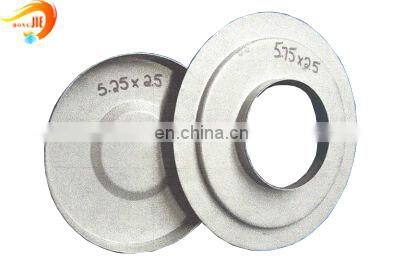

	Open Round End Cap with Flange
		Inches	Millimeters
	Outer diameter	5.75	146.05
	Inner diameter	2.5	63.5
	Inner height	0.5	12.7
	Outer height	0.278	7.0612
	Closed Round End Cap
		Inches	Millimeters
	Outer diameter	5.25	133.35
	Inner diameter	2.5	63.5
	Inner height	0.875	22.225
	Outer height	0.172	4.3688

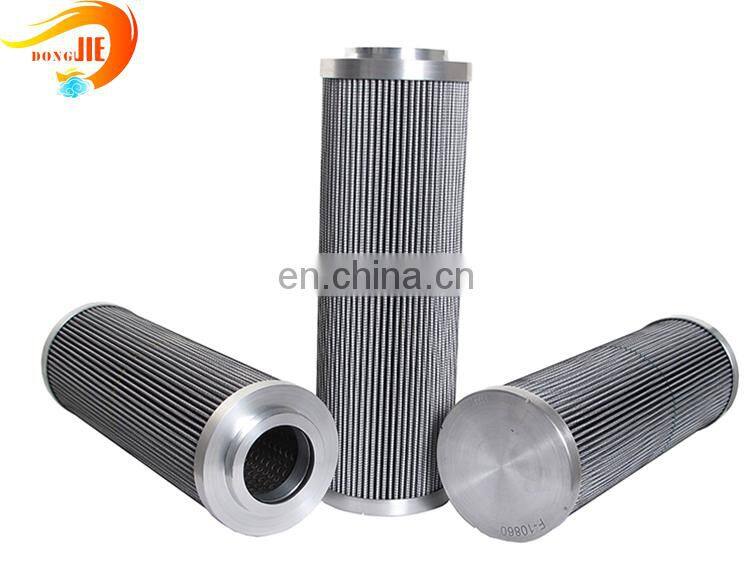

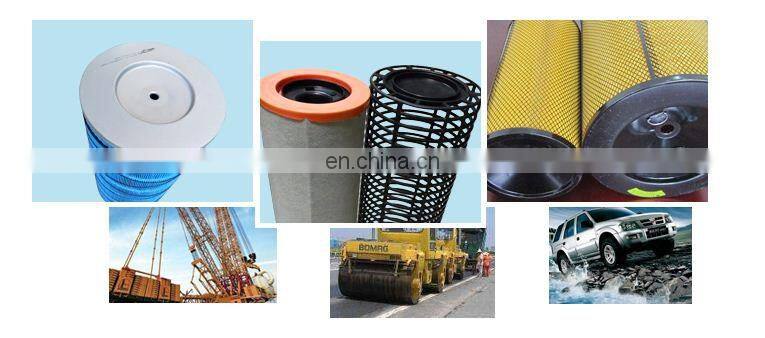

Filter End Caps Applications

⇒The petroleum chemical industry, oil field pipeline filter.

⇒The refueling equipment, engineering machinery equipment fuel filter.

⇒Water treatment industry equipment filter.

⇒The pharmaceutical and food processing areas.

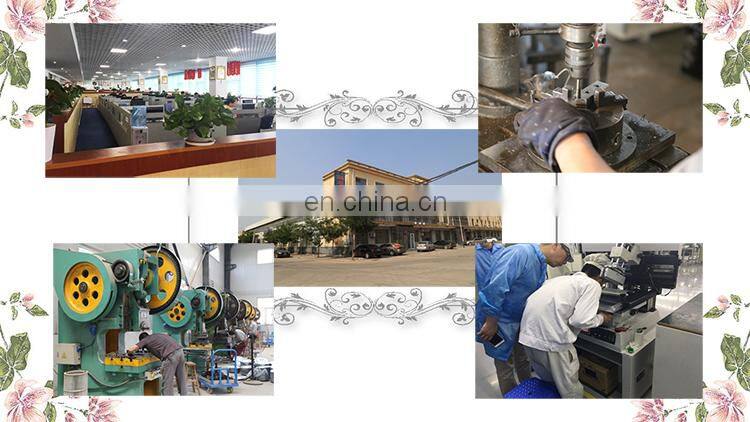

Company File

We are a leading filter end caps manufacturer, we can design and manufacture a range of Hydraulic,, Oil & Air filter end caps for any industrial application. Whether it's a new filter end caps design orreplacement for an existing OEM installation, we have both the expertise and track record to be able to design and deliver your filter end caps requirements. Simply call us or leave message to us and our experienced angineers will contact you for an intial discussion.

Through our Design, Research & Development department and facilities, we can produce absolete and non-standard filter end caps while continually improving our core range. Our Rapid Response Customer Support System provices prompt and comprehensive technical backup around the clock for your peace of mind. In fact, our compete service means your filter end caps needs are in safe hands from start to finish, that's why so many market leading organisationa working under extreme conditiona depend on our filtration solutions day in & day out.

 Filter End Caps Packaging

1. The filter end caps already has a layer of protective film, can reach a good function of caps protection. Especially during the shipping, the caps one by one packed and prevent the caps be scratched.

2. Using the woven bag to packed together the caps.

3. Packed  in the high quality wooden carton, help a fast shipping and convenient for forklift to load and unload.

Our Certifications

 The products not onlu adopted ISO quality system certificate, also meet international standard.
