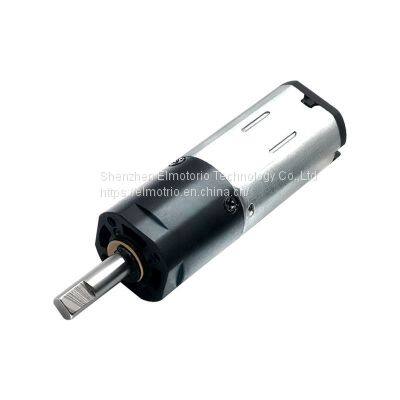

Factory direct sales 12mm high silent multiple variable speed ratio plastic planetary gear motor

Name: Factory direct sales 12mm high silent multiple variable speed ratio plastic planetary gear motor
Brand: Elmotorio
Availability: InStock

FOB Price

USD $1.95 - $3.3 / Piece

1000 Pieces(Min.Order)

Supply Ability 1000000 Piece / Pieces per Month
Port Shenzhen
Payment TermsT/T Credit Card Cash
Delivery Detail25 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Elmotorio	Place of Origin	China
Model Number	LS12PQ	Type	Gear Motor
Usage	Other, Car, Electric Bicycle, Home Appliance, Toy	Construction	Permanent Magnet
Efficiency	IE 1	Protect Feature	Totally Enclosed
Voltage(V)	2.4-12	Output Power	0.5w
Continuous Current(A)	customize	Speed(RPM)	customize
Commutation	Brush

Product Description

Drawing Data

Reference Datasheet

Gearbox Technical Date

Number of stages	1	2	3	4	5
Ratio	4K / 4.75K	16K / 19K / 22.5K	64K / 76K / 90K / 107K	256K / 304K / 361K / 428K / 509K	1024K / 1216K / 1444K / 1715K / 2036K / 2418K
Gearbox Length “A”(mm)	12.2	15.8	19.4	23	26.6
Max. Rated Torque	1.0 Kgf.cm	1.5 Kgf.cm	4.0 Kgf.cm	4.0 Kgf.cm	4.0 Kgf.cm
Max. Gear Broke Torque	3.0 Kgf.cm	6.0 Kgf.cm	12.0 Kgf.cm	12.0 Kgf.cm	12.0 Kgf.cm
Gearbox Efficiency	90%~95%	80%~90%	70%~80%	60%~70%	50%~60%

Gearmotor Technical Date

Gearmotor Model	Ratio	Rated Voltage (V)	No-Load		Rated			Stall
			Speed	Current	Speed	Current	Torque	Current	Torque
			RPM	mA	RPM	mA	N.m / Kgf.cm	mA	N.m / Kgf.cm
GMP16M030-107K	1 : 107	3.7 VDC	92	≤ 80	66	≤ 280	0.035 / 0.35	≤ 700	0.12 / 1.2
GMP16M050-256K	1 : 256	3.7 VDC	56	≤ 200	46	≤ 650	0.12 / 1.2	≤ 3000	0.48 / 4.8

Company

ELMOTORIO is an industry and trade company, established in 2010, which has been specializing in supplying and customizing miniature DC motors for over 12 years, and providing sincere services to solve the procurement needs of our customers. In order to help some of our customers to fulfill their production needs, we also provide related motor accessories.

We have a 3000+ square meter facility and 8 sister motor factories to handle most of our customers’ motor needs. Most of our customers are our long-term partners.

Whether you are a small wholesaler, a large distributor, or a manufacturer, we are ready to help you with your motor-related problems. You deserve a reliable and trustworthy partner.

Estimated Cost

Customize Fee

For some unusual products, additional abrasive costs may be incurred. This cost will need to be priced by our engineers and material supplier’s accounting.

Sample Fee

We can provide free samples of up to five. If you need more samples, you will pay petty expenses. We will credit this sample fee when you place your official order.

Shipping Fee

The shipping fee from the China shipping company warehouse to your company will be paid by you. If you have another way, we will coordinate with you.

Payment Term

30% initial payment should be paid before order materials, and the balance will be paid before shipment.
