Home > Products > Printing Machines and Accessories > UTR480-5 Five 5 Color Automatic Narrow Web Water Based Ink Thermal Heat Transfer Label Flexo Printer for Barcode Ticket Sticker
UTR480-5 Five 5 Color Automatic Narrow Web Water Based Ink Thermal Heat Transfer Label Flexo Printer for Barcode Ticket Sticker
- T/T Credit Card
You May Like
-
UTR320-6 Colorful BOPP PE PP Paper Adhesive Label Flexography Printing Machine, HDPE HDPP Poly Bag Sticker Press Printer
-
UD320 Automatic Medicine Hangtag Hang Tag Label Digital Die Cutting Machine, PAPER PP PE FILM Roll Sticker Rotary Die Cutter
-
UTS420H Turret Type High Speed Automatic Label Cutting Machine, Self-adhesive Sticker Cutter Rewinder
-
UTS370S High Speed Self Adhesive Label Sticker Cutter Rewinding Machine Price With Turret
-
USK320A Automatic Self Adhesive Blank Label Sticker Rotary Die Cutting Slitting Rewinding Machine With Turret
-
UTS450S Automatic Medicine Laser Paper Sticker Cutting Slitting Rewinding Machine, Adhesive Tape Label Cutter Slitter Rewinder
Product Description
UTR480-5 Five 5 Color Automatic Narrow Web water based ink Thermal Heat Transfer Label Flexo Printer for barcode ticket sticker
Video demonstration
Video 01 (4 color): /watch?v=IBrqLdPXVow&t=7s
Video 02 (5 color): /watch?v=giSR9_Ylrm0
Video 03 (6 color): /watch?v=9zj5xVidgjI
Video 04 (7 color): /watch?v=4GeW4o07vYU
Usages:
An ideal machine to print different label materials such as plastic films, aluminum foil, tissue paper, self adhesive stickers, vinyl, pvc and carton weight boards etc.
Features:
1, Adopts the ceramic anilox roller to spread ink.
2, Unwinding and rewinding are controlled by magnetic power brake, clutch, (or by automatic tension controller of Mitsubishi).
3, Each printing unit adopts 360 degree for color registration.
4. Each printing unit has one IR drier.
5. The rubber roller can break away automatically while stopping and running at a low speed in order to avoid ink dried.
6. The main motor is equipped with import stepless regulation of frequency conversion. 7. Unwinding, web guiding, corona treatment,printing, laminating, UV varnishing, IR drying and rewinding can be finished in one process.
8, An ideal machine to print many kinds of self-adhesive label or stickers.
Parameters
Model | UTR320-5 | UTR480-5 |
Printing speed | 60m/min | 60m/min |
Print color | 5(color) | 5(color) |
Max web width | 320mm | 480mm |
Max printing width | 310mm | 460mm |
Max unwinding diameter | 600mm | 600mm |
Max rewinding diameter | 550mm | 550mm |
Printing circumference | 175-320mm | 175-580mm |
Registration | ±0.10mm | ±0.10mm |
Dimension | 2100x1100x2700mm | 2100x1300x2700mm |
Weight | 2400kg | 3200kg |
Power Supply | 3Phases, 380V/220V, 50HZ | 3Phases, 380V/220V, 50HZ |

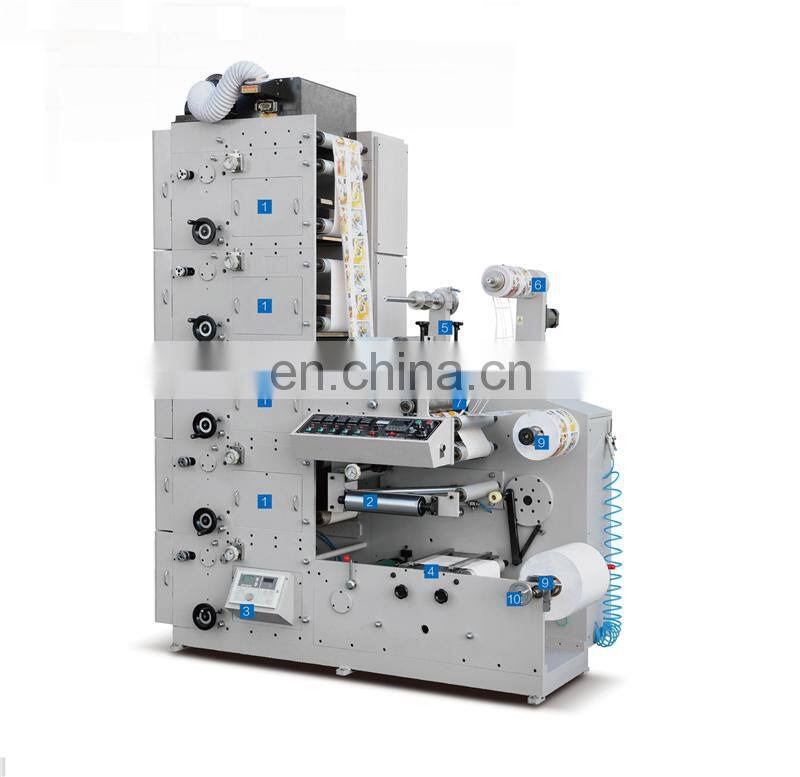

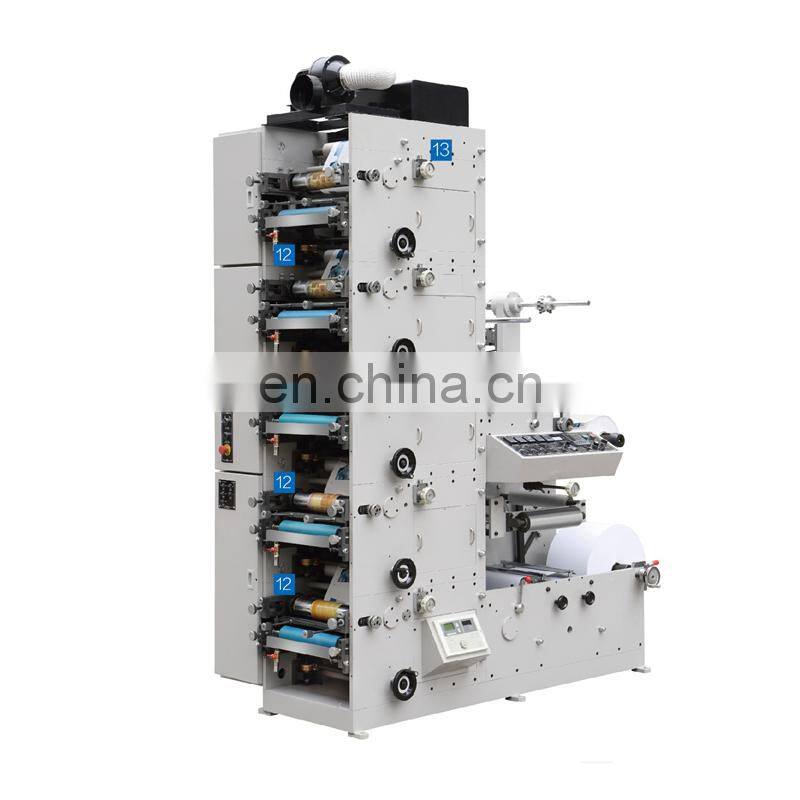

1, IR Hot Air Dryer / UV Dryer 2, Turn Bar 3, Tension Controller (Mitsubishi, Japan) 4, Splicing Table and Web Guider 5, Laminating Unit 6, Waste Rewinder 7, Rotary Die-cut Station 8, Rewinding Tension Controller 9, Air Shaft 10, Ajusting Handle for Left/Right 11, Video Monitor 12, Flexo Print Unit 13, Registration Device
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: What is your Max and Min print size in mm?
B: Material thickness and unwinding width
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
Wooden Case Loading and Transport
YOU ARE WELCOME TO CONTACT US ANYTIME AVAILABLE.
Mobile/Whatsapp/Wechat: +86-18258286679
Email: utecs@ , utecsinter@ , danielsuer@
Skype: danielsuer
Web:
