Home > Instruments & Meters > Test Instrument > Test Machine > Cement Anti Bending and Compression Machine Full Automatic Pressure Testing Machine

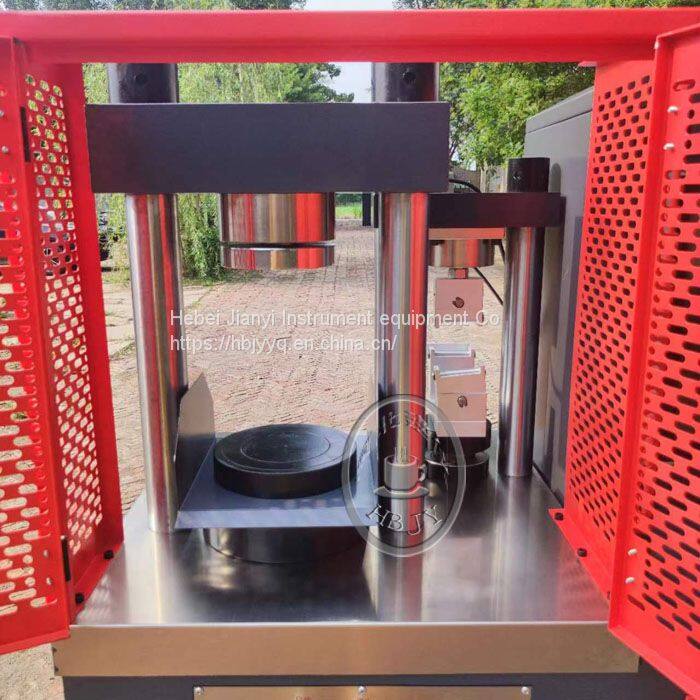

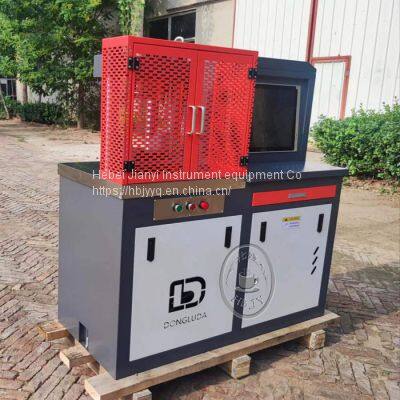

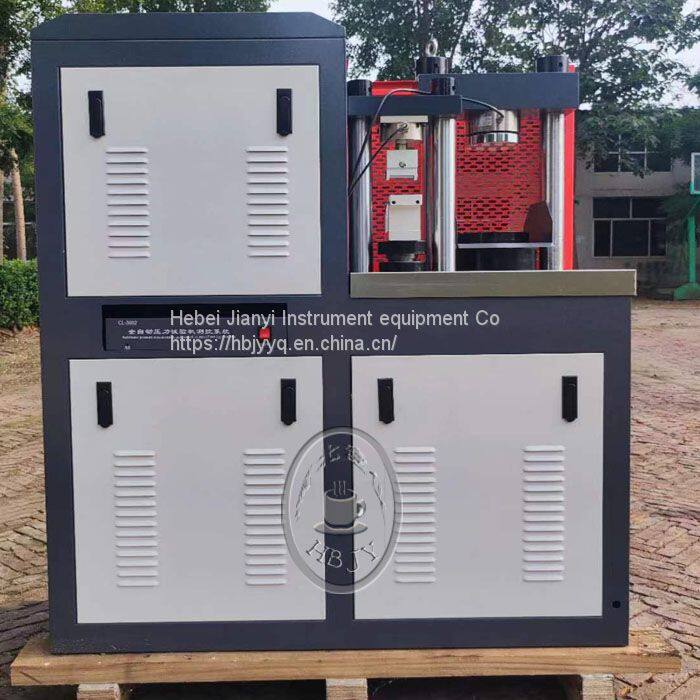

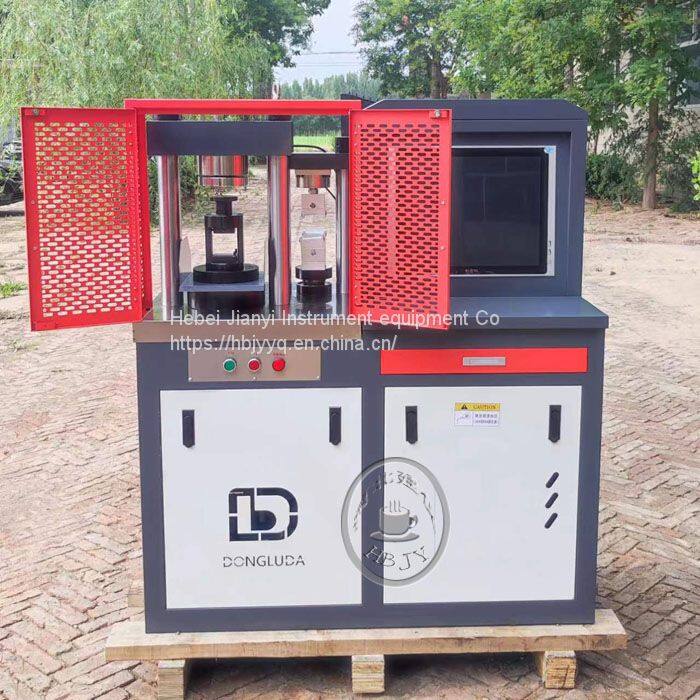

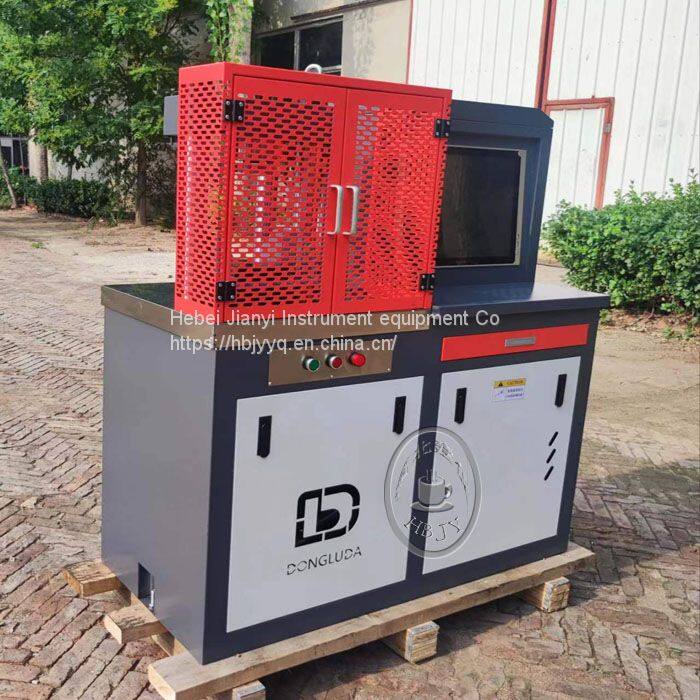

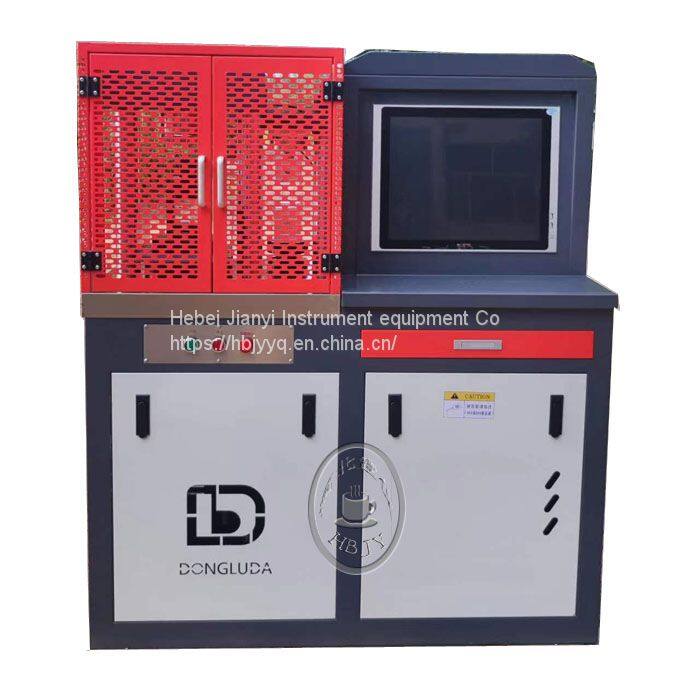

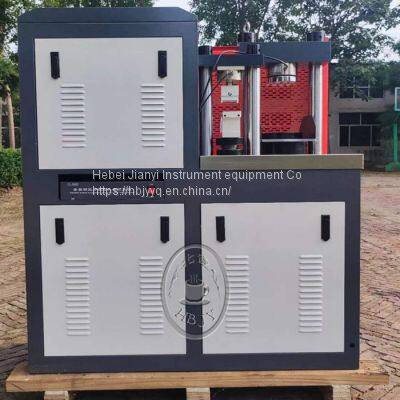

Cement Anti Bending and Compression Machine Full Automatic Pressure Testing Machine
US$ four thousand - four thousand and five hundred
MOQ: 1 Carton
Key Specifications
Get Latest Price
Brand Name:
Hebei Jianyi
Place of Origin:
China
Model Number:
Sfk-300 / 10 type
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
200t Electro-hydraulic Pressure Testing Machine Concrete PressCNY fifteen thousand - eighteen thousandMOQ: 0 Carton -
Servo Hydraulic Fatigue Testing MachineUS$ 20000 - 50000MOQ: 1 Set
-
Low Price Double Acting Electro Servo Electric Push Rod Ram Linear Hydraulic ActuatorUS$ 112.00 - 159.00MOQ: 2 Sets
-
MOOG D638-177-0001NegotiableMOQ: 1 Piece
-
HAWE Electro-hydraulic Pressure Switches Type DG1RFNegotiableMOQ: 1
Brand Name
Hebei Jianyi
Place of Origin
China
Model Number
Sfk-300 / 10 type
Power
Other
Usage
Auto Testing Machine
technical parameter
Name: compressive part and flexural part
Maximum load: 300KN 10kN
Relative error of indication value ≤± 1% ≤± 1%
Piston diameter x maximum stroke Φ one hundred and twenty-five Х 100mm Φ sixty Х 50mm
Pressure plate diameter Φ one hundred and sixty Φ one hundred
Distance between pressing plates: 200mm
Loading speed: 0-10kn / S; 0-100n / S
Test force measurement range: 4% - 100%
Error of applied test force: ± 1%
Input voltage: 380V
Motor power: 0.75kw
Overall dimension (mm): 1220 * 510 * 1280mm
Main engine weight: 300kg
