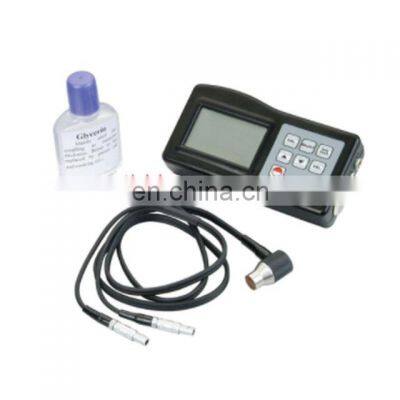

TM-8812 PVC Gauge Thickness Thickness Measurement Tool

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

TM8812 ultrasonic thickness gauge is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.

Specification

Model	TM-8812 Thickness Gauge
Measuring range(Metric Imperial)	1.0~225 mm 0.05~9 inch
Operating principle	ULTRASONIC
Sound velocity	500~9000 m/s
Lower limit steel pipes	Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducer
Calibration block	Included
Resolution	0.1 mm
Accuracy	±(0.5%n+0.1)
RS232C interface	With RS232C
Power supply	4 x1.5V AAA(UM-4)
Battery indicator	Low battery indicator
Operating conditions	10~90% RH

Details Images

Ultrasonic thickness meter’s Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

Standard delivery	Main unit	1
		5M Diameter 10 transducer	1
		Instruction manual	1
		Carrying case	B04
Optional Accessories	6M Diameter 6mm thin Material probe	Measuring range (steel) :1.0~50.0mm
		5M Diameter 12mm high Temperature probe	Measuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature)
		Cable & Software for RS232C interface	Available
