TM-8812 Portable Digital Ultrasonic Thickness Gauge Metal Thickness Gauge Price
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
TM-8812 Pipe Wall Thickness Gauge Plastic Thickness Gauge/Meter
-
TM-8812 Ultrasonic Gauge Thickness Gauge Metal Digital Thickness Gauge Ultrasonic Range Meter
-
TM-8812 Ultrasonic Metal Thickness Tester Pipe Wall Thickness Gauge Thickness Gauge Meter
-
TM-8812 Ultrasonic Thickness Testing Ultrasonic Thickness Measurement Gauge Metal
-
TM-8812 Ultrasonic Thickness Measurement Gauge Thickness Gauge Meter
-
TM-8812 Thickness Tester Ultrasonic Thickness Meter Gauge Tester Thickness Gauging
Product Description
Product Description
TM8812 ultrasonic thickness gauge is used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. in industries of petroleum, shipbuilding, power station, and machine manufacturing. Applicable to measure the thickness of many materials, e.g. Steel, Cast iron, Aluminum, Red copper, Brass, Zinc, Quartz glass, Polyethylene, PVC, Gray cast iron, Nodular cast iron.
Specification
Model | TM-8812 Thickness Gauge |
Measuring range(Metric Imperial) | 1.0~225 mm 0.05~9 inch |
Operating principle | ULTRASONIC |
Sound velocity | 500~9000 m/s |
Lower limit steel pipes | Diameter 15 x2.0mm, Diameter 20 x3.0mm determined by the transducer |
Calibration block | Included |
Resolution | 0.1 mm |
Accuracy | ±(0.5%n+0.1) |
RS232C interface | With RS232C |
Power supply | 4 x1.5V AAA(UM-4) |
Battery indicator | Low battery indicator |
Operating conditions | 10~90% RH |
Details Images
Ultrasonic thickness meter’s Application
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.
Used for measuring thickness and corrosion of pressure vessels, chemical equipment, boilers, oil storage tanks, etc. In industries of petroleum, shipbuilding, power station and machine manufacturing.

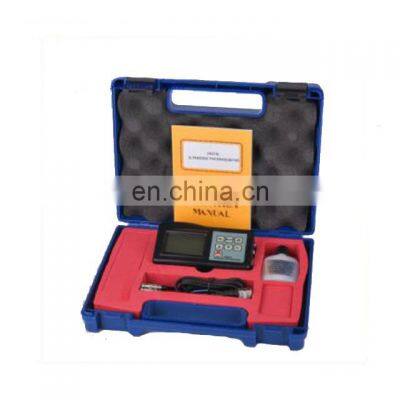

Standard delivery | Main unit | 1 |
5M Diameter 10 transducer | 1 | |
Instruction manual | 1 | |
Carrying case | B04 | |
Optional Accessories | 6M Diameter 6mm thin Material probe | Measuring range (steel) :1.0~50.0mm |
5M Diameter 12mm high Temperature probe | Measuring range (steel):1.0~ 225.0mm (normal temperature) Measuring range (steel):4.0~100.0mm (high temperature) | |
Cable & Software for RS232C interface | Available |
