Ultrasonic Foundation Pile Integrity Tester ZBL-P8000 Series
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
ZBL-P8000 Pit Low Dynamic Pile Tester And Pile Integrity Tester Dynamic Pile Testing Equipment
-
Pile Sonic Integrity Testing Pet - Pile Echo Tester Foundation Pile Dynamic Detector
-
Tmeasurement Dynamic Pile Testing Static Loading Pile Integrity Tester And Wifi Static Pile Load Tester
-
Low Strain Pile Impact Integrity Testing (Pit)
-
P8000 Wireless Foundation Pile Dynamic Tester
-
1~64ms Adjustable Pile Integrity Tester For Low Strain Testing Pile Testing Instruments /Pile Integrity Tester
Product Description
Product Description
Details Images
Product Name | ZBL-P8000 Multi-channel Pile Dynamics Pile Integrity Tester |
Sentinel Magnify(time) | 1.2.4.8.16.32 adjustable |
A/D resoulution(bit) | A/D resoulution(24 bit) |
Sampling time intervals(μS) | 6.4-204.8adjustable |
Max length of sampling | 2048 |
Trigger | Signal trigger |
Noise voltage of the system(mV) | ≤2 |
Dynarnic Range(dB) | ≥144 |
Amplifier frequency range(Hz) | 1~20K |
Time value error | 2048 |
Time resolving power(us) | ≤10% |
Gain Error(dB) | ≤1% |
Work time(h) | >8 |
Number of channels | 1 |
Interference between the channels | ≤1% |
Transducer/Probe Sensitivity (Acceleration mode) (mv/g) | ≥100 |
Frequency range of Probe (Acceleration probe) (Hz) | 0.5~9000 |
Operational Environment | Temperature(℃): -10~+50 |
Humidity (RH) :<90% | |
Power supply | Internal:Built-in Battery |
External: 220VAC/DC |
Features
ZBL-P8000 Wirless Pile Integrity Testing
By using the reflected wave method, the instrument is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing drilled piles and hammer piles. It can also be used for testing the
exposed top surface of constructions such as pillars.
exposed top surface of constructions such as pillars.

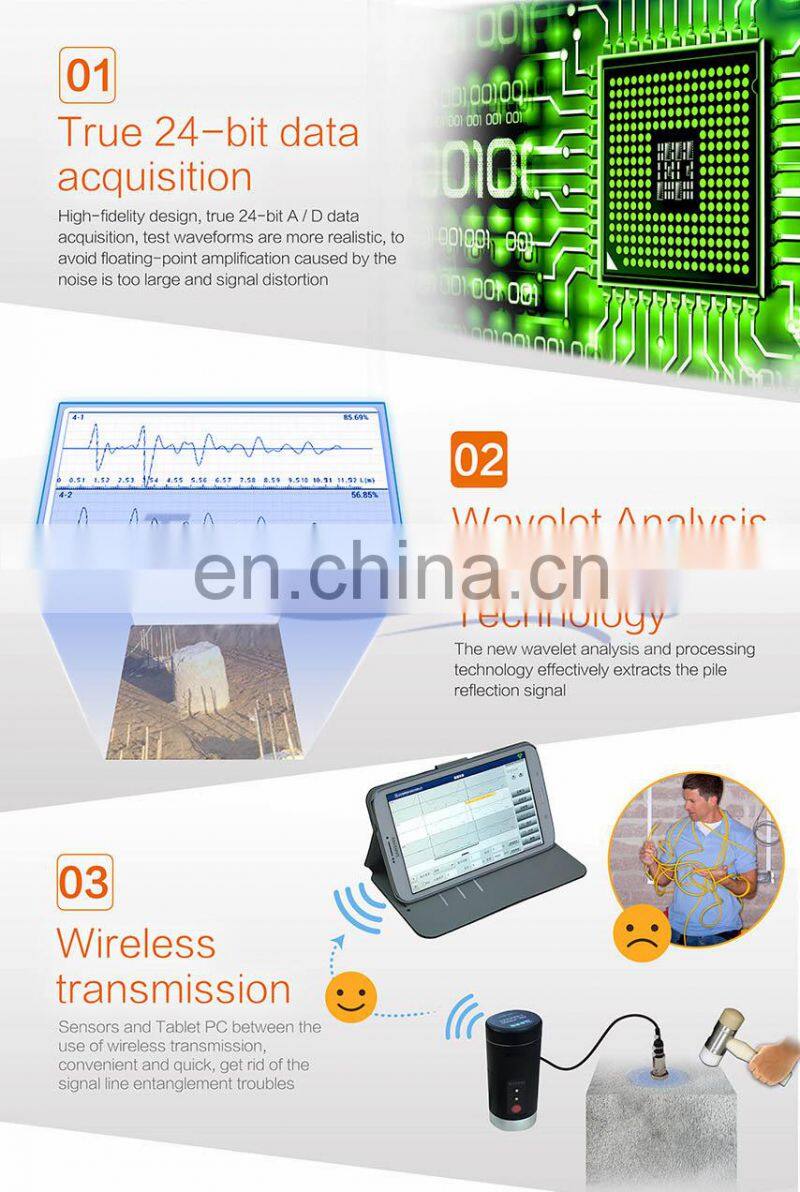

• Intelligent sensor can complete the acquisition work by himself, and upload the data to the computer through the WIFI, get rid of signal wire entanglement, efficient, fast and smooth;
• True 24 bit A/D data acquisition, the test wave form is more real, to avoid the noise and signal distortion caused by large
floating point amplification;
• The real-time analysis of detected waves, a new wave let analysis in complex situations can be more accurate to judge pile integrity;

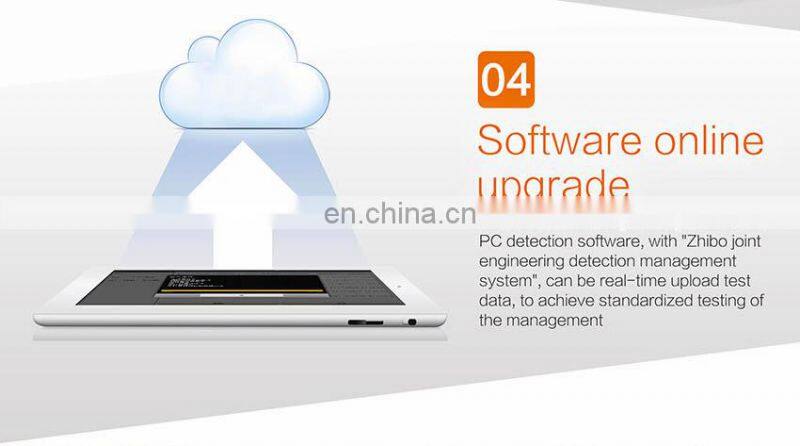

• Intelligent upgrade detection software in the PAD online
• True 24 bit A/D data acquisition, the test wave form is more real, to avoid the noise and signal distortion caused by large
floating point amplification;
• The real-time analysis of detected waves, a new wave let analysis in complex situations can be more accurate to judge pile integrity;
• Intelligent upgrade detection software in the PAD online

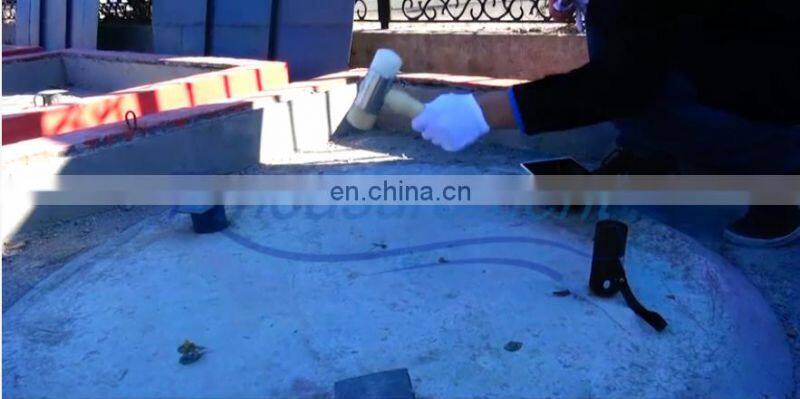

Application

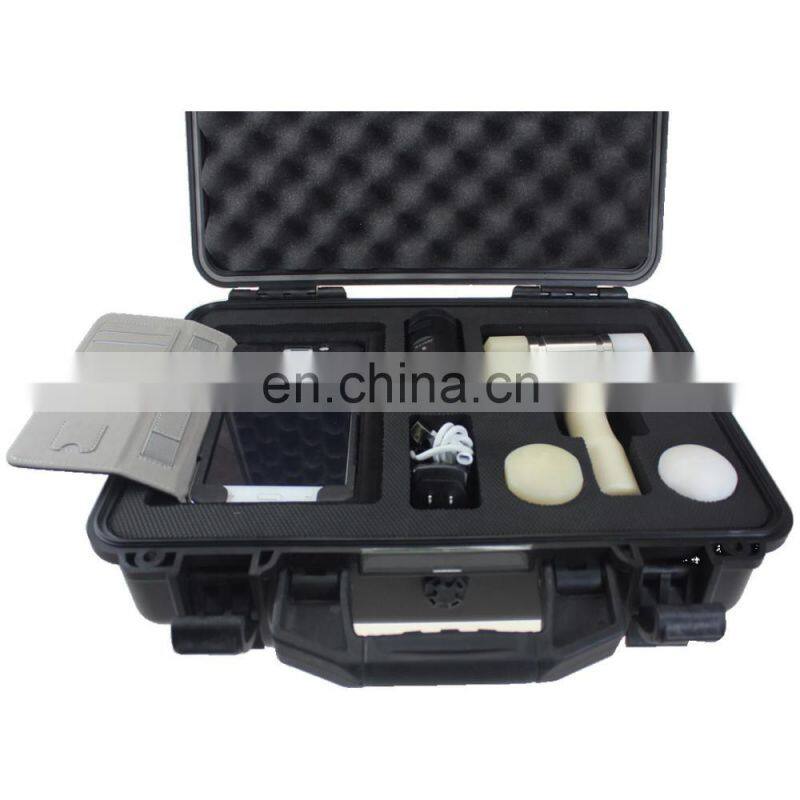

Product packaging
Wireless sensors | 1 unit | |
Pad Samsung Note 7" | 1 unit | |
Hammer stocked with interchangeable tips | 1Unit | |
Battery charger | 1Unit | |
Carrying case | 1Unit |
Related Product

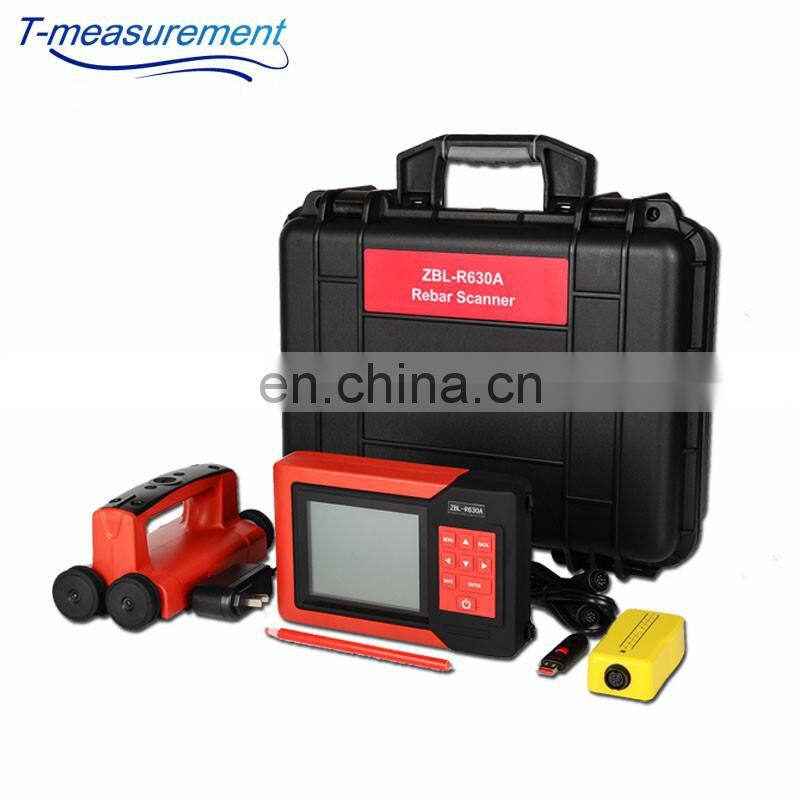

ZBL-R630A Rebar scanner
ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter,
orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.
orientationand distribution of rebar by using an electromagnetic induction method. It also can be used to test the distribution of magneticand conductor such as cables and metal pipes in non-magnetic medium and non-conducting medium.
ZBL-R800 Multifuncational Rebar detector
ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers,measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.
TEM912 Digital concrete test hammer
TEM912 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data.
