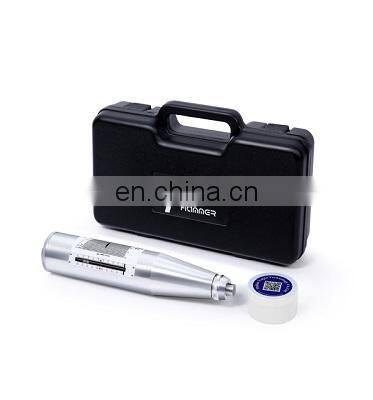

Taijia Sclerometer Concrete Rebound Hammer Test for Concrete Test Hammer for Sale
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia Hot Sale Manual Test Hammer Concrete Test Hammer Rebound Test Hammer
-
Taijia Concrete Strength Test Hammer Brick Rebound Hammer for Sale Schmidt Hammer Price
-
Taijia Concrete Test Hammer Price/Concrete Hardness Tester Schmidt Hammer Price
-
Taijia Hot Sale Concrete Test Hammer/low Price Rebound Concrete Strength Test Schmidt Hammer Price
-
Taijia Portable Brick Testing Resiliometer Rebound Sclerometer Test Hammer
-
Taijia Concrete Surface Strength Test Hammer/low Price Sclerometer Concrete Test Hammer
Product Description

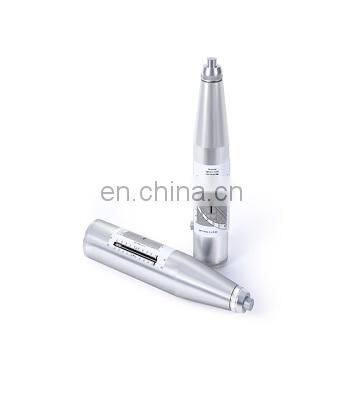

Taijia digital schmidt concrete test hammer rebound hummer tester schmidt rebound hammer test price
Product Description
Silver schmidt price concrete test hammer is applied to test the compressive strength of building concrete components,bridge and so on.
Standard: JGJ/T23-2011;GB /T9138-1988;JJG817-93 ; ASTM C 805

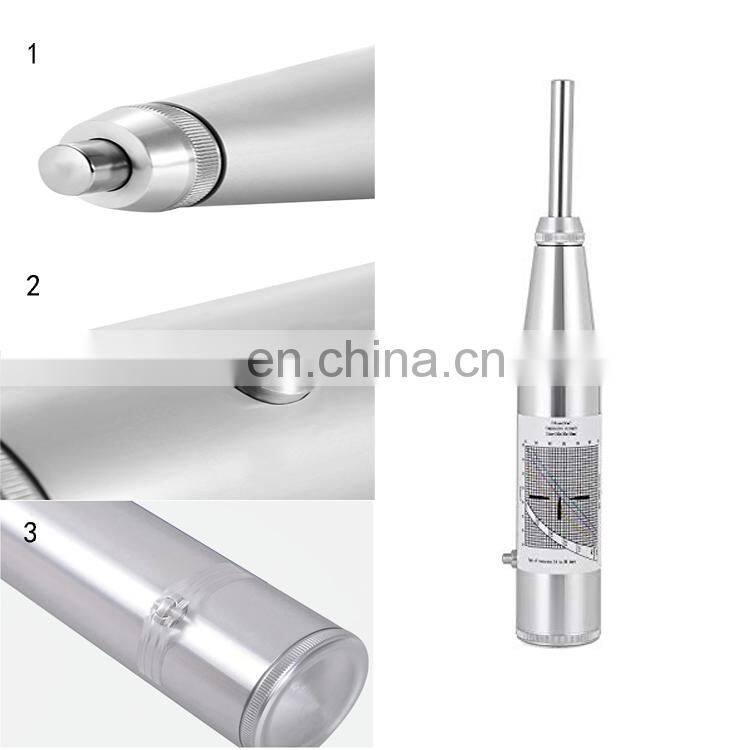

1) Center rod is made from imported material, high accuracy and durable resistance

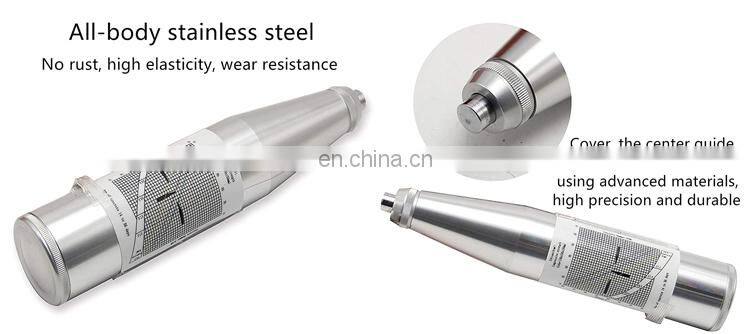

2) The shell is made form high Aluminum or high polymer material in order to perfect
protect instrument from damage and extend use life.
3) Pointer slider is outside structure, its friction can be balance well and easy to be adjusted
so that we can make sure that the instrument is accurate. Compared with other suppliers
in the line of business, the product is more accuracy, good quality, and best price and longer use life
Standard: JGJ/T23-2011;GB /T9138-1988;JJG817-93 ; ASTM C 805
1) Center rod is made from imported material, high accuracy and durable resistance
2) The shell is made form high Aluminum or high polymer material in order to perfect
protect instrument from damage and extend use life.
3) Pointer slider is outside structure, its friction can be balance well and easy to be adjusted
so that we can make sure that the instrument is accurate. Compared with other suppliers
in the line of business, the product is more accuracy, good quality, and best price and longer use life
Technical parameters
Standard impact energy | 2.207±0.1J (0.225Kgf.m) |
The static friction of pointer slider | 0.65N±0.15N |
Length of spring stretch | 75±0.3mm |
Average rebound hammer on steel anvil Rm | 80±2 |
Measuring Range | 10~60Mpa |
Radius of spherical tip | 25mm±1mm |
Working Temperature | -10℃~+50℃ |
Working Humidity | ≤90%RH |
Dimensions | Φ54x280mm |
Net weight | About 1.0Kg |
How to work
How to work with schmidt hammer | ||
1 | Hardness testing of materials schmidt hammerUse a grinding stone to smoothen the test surface | |
2 | Perform a few test impacts with the rebound hammer on this smooth, hard surface before taking any measurements which you are going to evaluate. Perform a consistency check on the test anvil | |

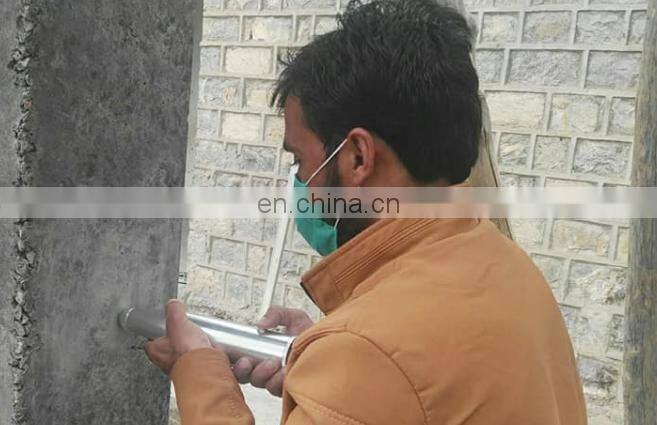

3 | Position the hammer perpendicular to and against the test surface. Push the concrete test hammer adainst the surface at a moderate spped until the impact is triggered. Bes aware that the plunger generates a recoil when it deploys. | |
Related Products
HT-225 Concrete Test Hammer
The concrete rebound hammer are the most widely used portable NDT measuring instruments for a rapid assessment of the condition of a concrete structure
TEM912 Concrete Test Hammer
TEM912&TEM91 Series DIGITAL TEST HAMMER automatically Record, Save, Calculate and Processing data.
ZC3-A Concrete Test Hammer
ZC3-A Concrete Rebound Hammer , in accordance with JGJ/T23-2001 technical regulations, is used for detecting the concrete compressive strength within the range of 10-60Mpa and has the system standard energy of 2.207J
