Home > Products > Other products > Taijia High Quality ZBL-U5100 Multi-channel Non Metallic Ultrasonic Pulse Detector Tester

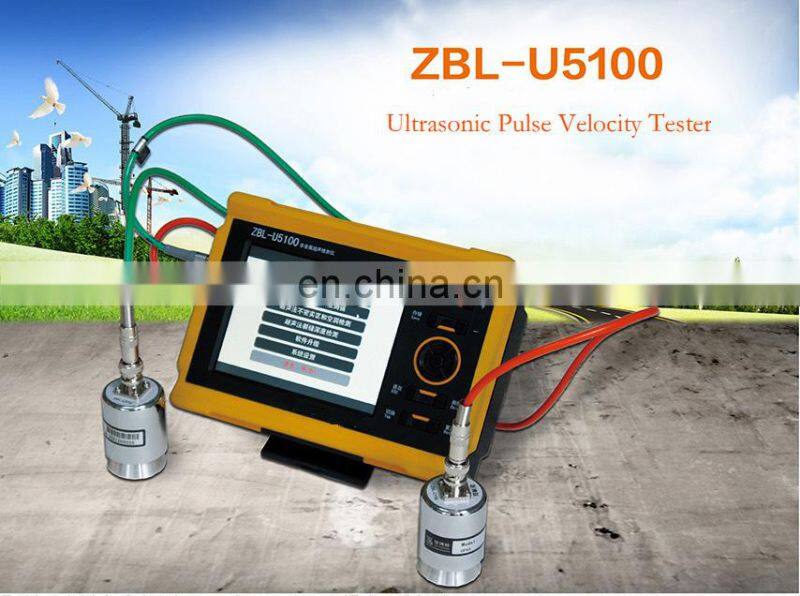

Taijia High Quality ZBL-U5100 Multi-channel Non Metallic Ultrasonic Pulse Detector Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Taijia Internal A8 Industrial Control Board Ultrasonic Pulse Tester Detector
-
Taijia ZBL-U5100 Multi-channel Ultrasonic Pulse Detector Tester Automatic Continuous Collection
-
Taijia Wall Detector Professional Stud Finder Handheld Wall Scanner Industrial Metal Detector With Screen Display
-
Taijia Specialized Tool Manufacturer Metal Detect Tool Professional Stud Finder Handheld Wall/Wood Scanner
-
Taijia High Sensitivity Indoor Professional Stud Finder Wall/Wood Scanner Specialized Tool Manufacturer Metal Detect Tool
-
Taijia MD120 Specialized Tool Manufacturer Metal Detector Professional Stud Finder Handheld Wall/Wood Scanner
Product Description
Product Description

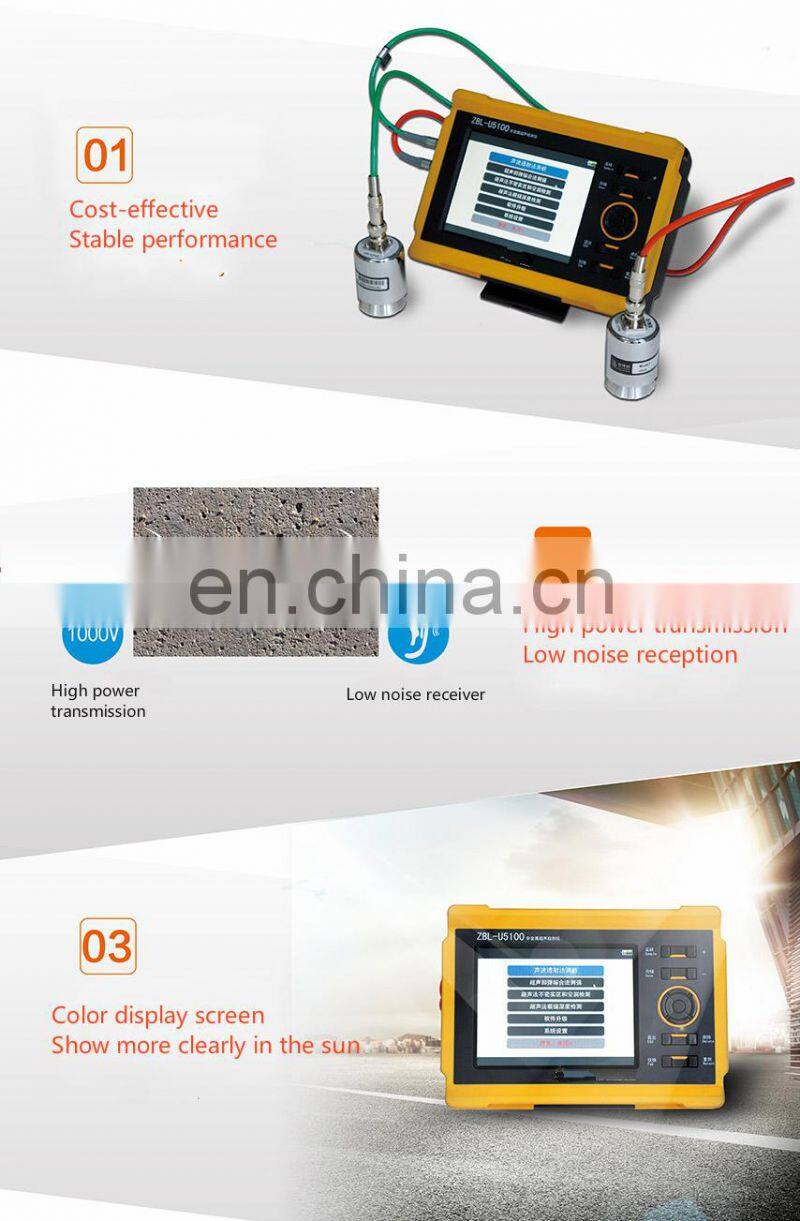

Features of ZBL-U5100 ultrasonic detector pulse tester
1. During the test, the test result is available and the graphic distribution of abnormal points in each profile is shown at any
time. Meanwhile, wave train figure, curve graph and data list of each profile may be shown;
2. During the test, sampling delay and amplification factor may be adjusted at any time;
3. With high definition LCD screen, waveform, wave speed and amplitude of multiple tested profiles may be clearly observed, and
the quality of whole pile in the test is very clear;
4. It adopts touch screen and user-friendly interface, which is simply, easy to learn and convenient to operate;
5. With high-capacity SD card, there is no need to worry about the storage space of test data;
6. Built-in high-performance and capacity lithium battery may satisfy fieldwork for long time;
7. Various USB ports may be used for data transmission or software update within the instrument;
8. Test data of the same project is saved under the folder created with the title of the project for easy and reliable management.
time. Meanwhile, wave train figure, curve graph and data list of each profile may be shown;
2. During the test, sampling delay and amplification factor may be adjusted at any time;
3. With high definition LCD screen, waveform, wave speed and amplitude of multiple tested profiles may be clearly observed, and
the quality of whole pile in the test is very clear;
4. It adopts touch screen and user-friendly interface, which is simply, easy to learn and convenient to operate;
5. With high-capacity SD card, there is no need to worry about the storage space of test data;
6. Built-in high-performance and capacity lithium battery may satisfy fieldwork for long time;
7. Various USB ports may be used for data transmission or software update within the instrument;
8. Test data of the same project is saved under the folder created with the title of the project for easy and reliable management.
Specification
Model | ZBL-U5100 ultrasonic detector pulse tester | ||
Control Mode | Internal A8 Industrial control board | ||
Data storage | Internal | ||
Signal collecting mode | Automatic continuous collection | ||
Trigger | signal | ||
Acoustic transit time accuracy | 0.025μs | ||
Receiver sensitivity | ≤10μv | ||
Data transmission | USB,MiniUsb,Wi-Fi,Bluetooth | ||
Screen | 5.7inch,high brightness TFT LCD screen | ||
Operation Mode | Touch screen and button | ||
Channels | 1 emitter+1 receiver | ||
Sampling interval | 0.025μs~1638.4μs | ||
Acoustic transit time range | ±1677.7ms | ||
Amplifier bandwidth | 3~450kHz | ||
Size(mm) | 210×149×60 | ||
1. “Pile integrity test”: test the integrity of foundation pile according to ultrasonic transmission rule and it can detect the
integrity of long continuous wall;
2. “Concrete strength test” : using the ultrasonic-rebound combined method to test the compressive strength of concrete
structures;
3. “Concrete defect or cavity test”: test the concrete flaw by ultrasonic transmission rule;
4. “Concrete crack depth test” :test the crack depth of concrete by adopting horizontal ultrasonic test method;
integrity of long continuous wall;
2. “Concrete strength test” : using the ultrasonic-rebound combined method to test the compressive strength of concrete
structures;
3. “Concrete defect or cavity test”: test the concrete flaw by ultrasonic transmission rule;
4. “Concrete crack depth test” :test the crack depth of concrete by adopting horizontal ultrasonic test method;
Packing & Delivery
Related products
ZBL-R630A Rebar locator
ZBL-R630A is used to test the location of rebar in concrete, the thickness of the protective layer, and the diameter,
orientationand distribution of rebar by using an electromagnetic induction method.
orientationand distribution of rebar by using an electromagnetic induction method.

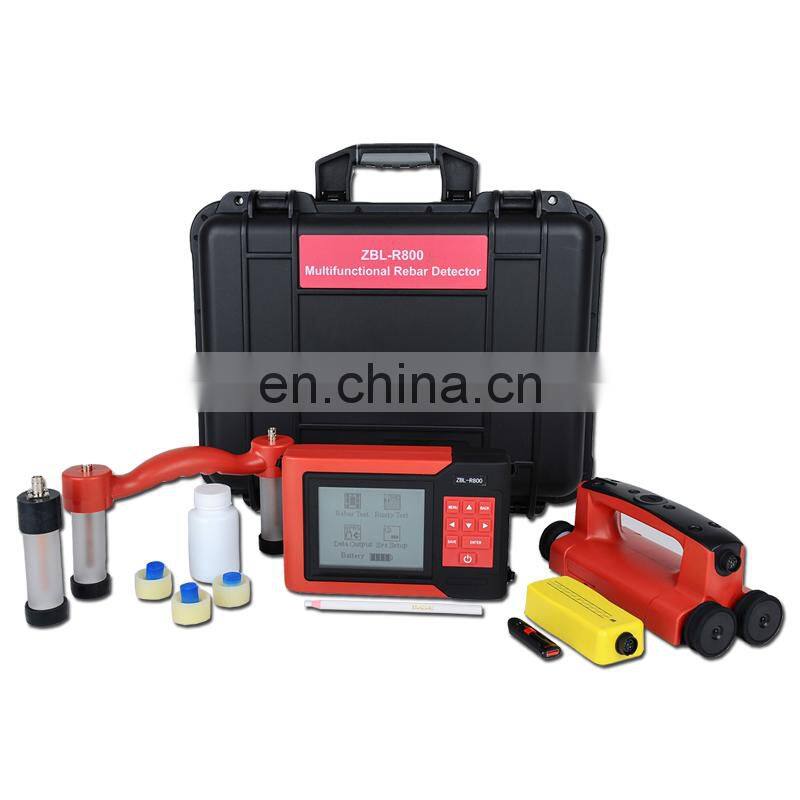

ZBL-R800 Multifunction rebar scanner
ZBL-R800 is a multi-functional integrated rebar detector which can be used for testing the thickness of protective layers,measuring the diameter, location, and distribution of rebar as well as for detecting the corrosion content of a rebar.
TEM912 Digital concrete test hammer
TEM912 Series DIGITAL TEST HAMMER automatically Record, Save,
Calculate and Processing data.
