Manual Modified Proctor Standard Proctor Soil Moulds and Rammers

FOB Price

Negotiable

1 (Min.Order)

Supply Ability 1000 per Month
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Usage and Features

Standard Modified Proctor Moulds And Rammers For Soil

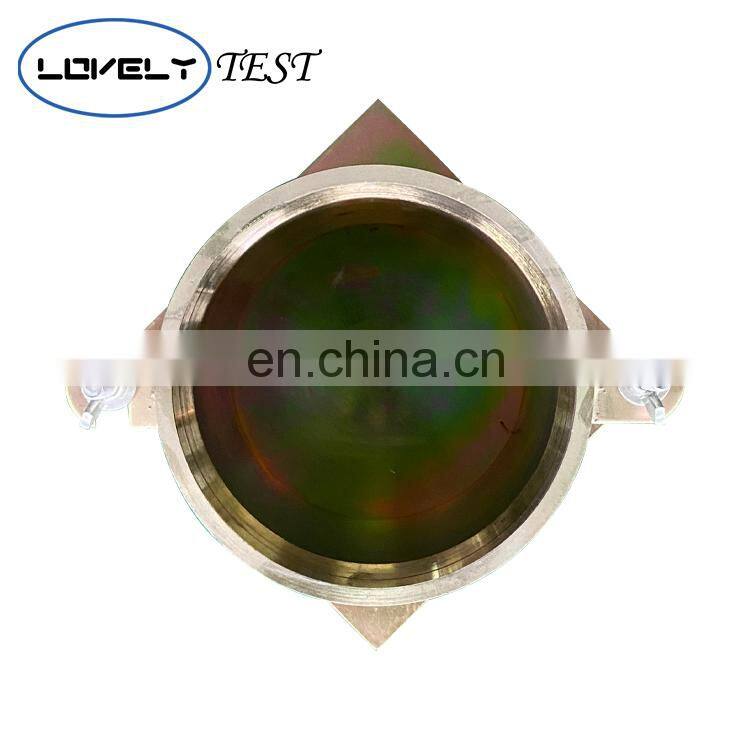

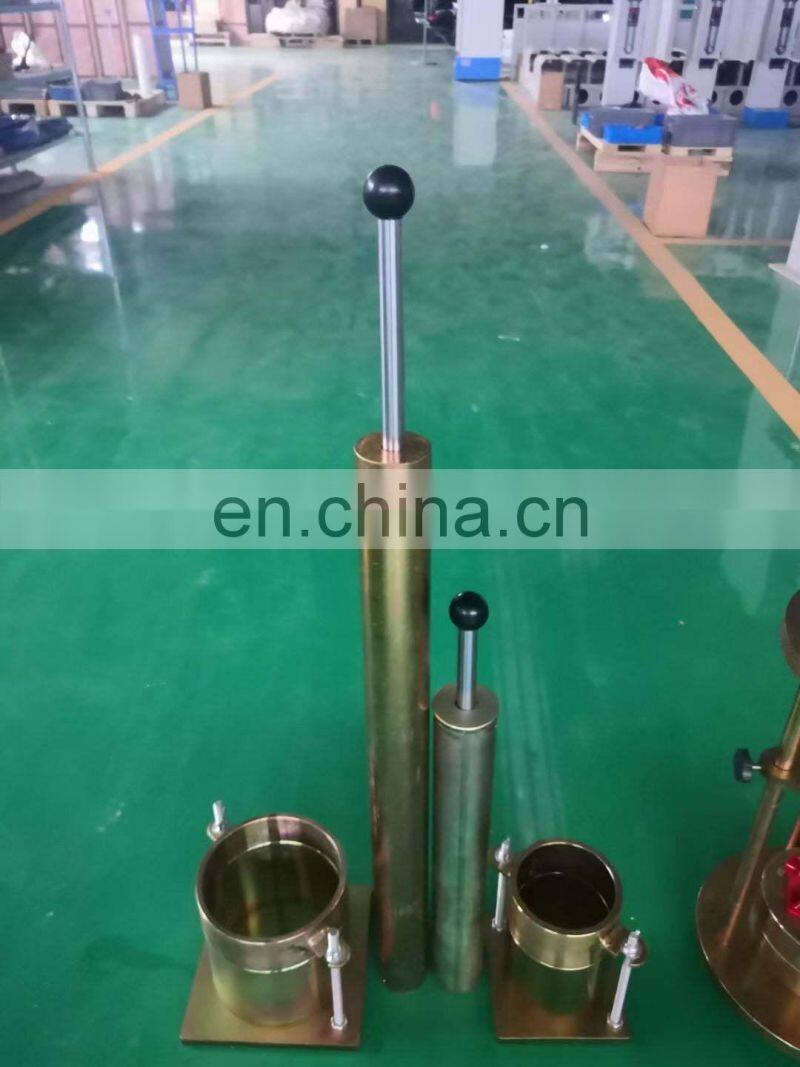

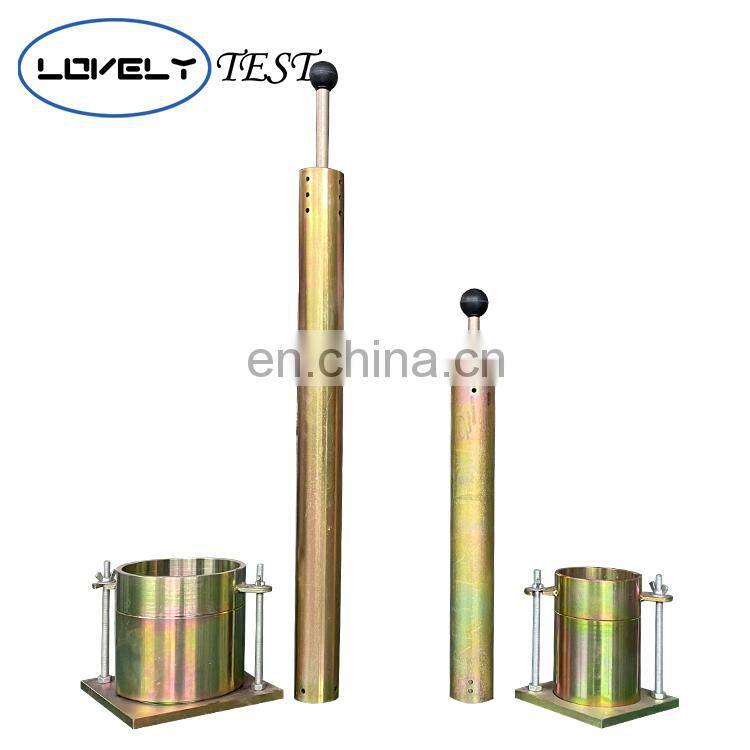

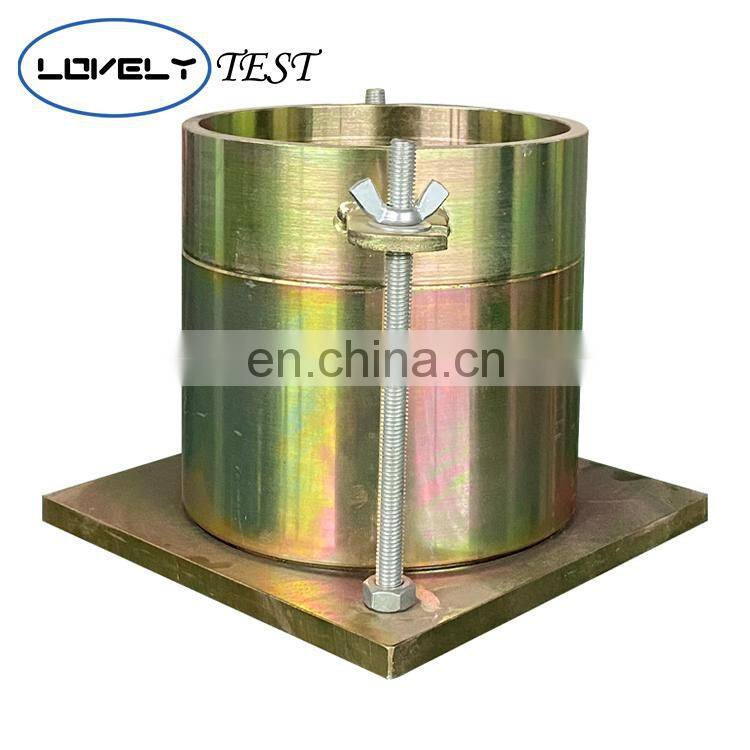

Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.

Detailed Images

Technical Parameters

Standard	Hammer Type	Internal Dia(mm)	Body Height (mm)	Hammer Weight(kgs)	Drop (mm)
ASTM	Light	∅101.6	116.4	2.5	305
	Heavy	∅152.4	177.8	4.54	457

	Hammer Type	Internal Dia(mm)	Body Height (mm)	Hammer Weight(kgs)	Drop (mm)
BS	Light	∅101.6	127	2.5	305
	Heavy	∅152.4	127	4.54	457

	Hammer Type	Internal Dia(mm)	Body Height (mm)	Hammer Weight(kgs)	Drop (mm)
EN	Light	∅100	127	2.5	300
	Heavy	∅152	127	4.5	450

	Hammer Type	Internal Dia(mm)	Body Height (mm)	Hammer Weight(kgs)	Drop (mm)
GB	Light	∅102	116	2.5	305
	Heavy	∅152	116	4.5	457
