Road Markings Line Reflection Tester Reverse Reflection Coefficient Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Motorized Cement Mortar Flow Table Consistency Test Apparatus Flow Table Tester
-
Lab Equipment Slurry Sand Content Tester Mud Test Kit Sand Content Tester
-
Mud Slurry Hydrometer Mud Test Kit Baroid Mud Balance
-
Wholesale Baroid Mud Balance Fluid Density Scale Lab Mud Balance for Sale
-
Baroid Mud Balance Fluid Density Scale for Sale
-
HZ-20 Road Core Concrete Drilling Machine
Product Description

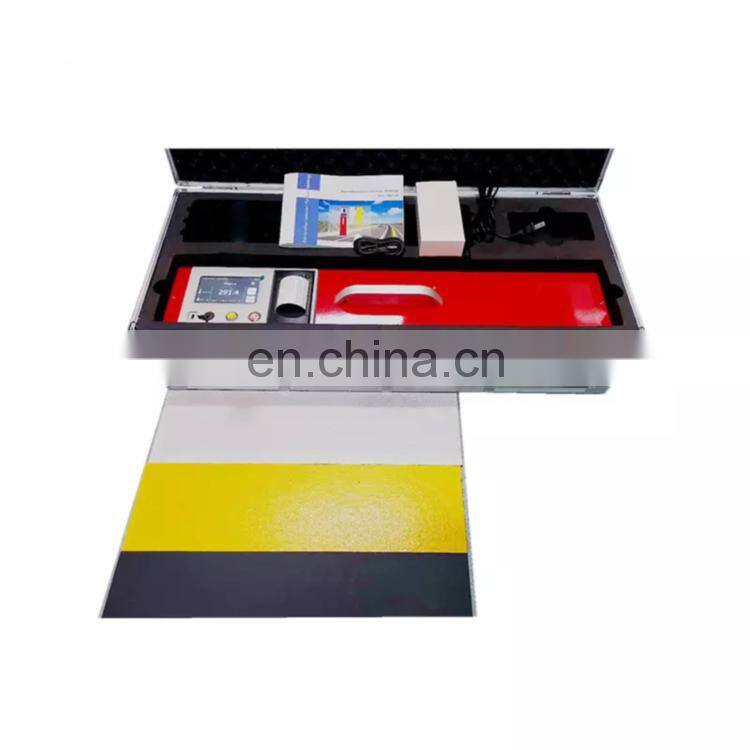

Road Markings Reverse Reflection Coefficient Tester
Usage Overview
The instrument is designed and developed with reference to relevant international technical documents and current national standards and norms in China. It meets the requirements of No. 72 published by the International Lighting Commission (CIE), ASTMD4061-94, DIN67520, 67521 of Germany, GB/T 26377-2010 Reverse Reflectometer of China, GB/T 16311-2009 Quality Requirements and Monitoring Methods of Road Traffic Markings, JJG 059-2004 Verification Regulations of Reverse Reflectometer.
Product Description
Parameter
Observation angle: 1.05 degrees
Incident angle: β 88.76 degrees
Complementary angle:1.24 degrees
Screen: 4.5 "854x480
Computer Connection: TF Storage Card
Charging: 220VAC 50HZ; DC8.4V
Power supply: lithium (6600 mah)
Volume (length x width x height)
450mm x 132 mm x 132 mm
Net weight :5kg
Light Source Color Temperature: 2856K+50K (CIEA Light Source)
Detector: silicon diode + V (lambda) rectifier, meets CIE standard;
Detector: silicon diode + V (lambda) rectifier, meets CIE standard;
spectrophotometric observer spectral optical efficiency V (lambda)
The measurement range of L retroreflective : Coefficient R'is 0-3000 MCD lx-1 m-2
Battery Continuous Working Time: 72 Hours
Data Storage: 10,000 Test Information
The measurement range of L retroreflective : Coefficient R'is 0-3000 MCD lx-1 m-2
Battery Continuous Working Time: 72 Hours
Data Storage: 10,000 Test Information
Protection Level: IP54
Working temperature: - 15 C ~ + 50 C
Operating humidit: 10-90%, no condensation
Working temperature: - 15 C ~ + 50 C
Operating humidit: 10-90%, no condensation
