Digital Rebound Hammer Digital Sclerometer Manufacture Price

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Product Usage and Features

HT225 Integrated Concrete Test Hammer

Usage:

GTJ-HT225 Integrated concrete test hammer is a non-destructive testing and evaluation instrument for the compressive strength of hardened concrete in building structures. It can detect and record parameters such as rebound value, carbonization depth value angle, test surface and so on. The strength estimation results of the component can be given immediately after the detection is completed.

Features:

1.Integrated design, small in size and easy to carry.;

2. The new MOS image sensor is used to subvert the traditional signal acquisition method, and the data is accurate and reliable;

3. Special color screen display, automatic recording of detection time and date;

4.The parameters of angle, test surface, pumping and carbonization can be set on site;

5. Voice reading function, noisy environment can also be equipped with headphones to monitor;

6. Mini-printer to print test results on site (Optional);

7. Ultra-low power design, continuous use of power supply for 8 to 10 hours;

8. The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient.

Parameters

Model	GTJ-HT225
Sensor	MOS image sensor
Data Acquisition Terminal	Input mode	Automatically record rebound value
		Data processing	Automatic date vevision, calculation and analysis
		Display mode	LCD
		System capacity	200,000 Measuring points
		Power mode	Rechargeable large capacity lithium battery
		Wolume	1235525mm
		Weight	200g
Mechanical Rebound Tester	Range of strength measurement	10~60 Mpa
		Nominal kinetic energy	2.207J
		Stiffness of spring strike	7.84N/cm
		Hammer stroke	75mm
		Indicative Consistency error	＜0.5
		Calibrated rebound value of steel anvil	80±2
		Volume	5555270mm
		Weight	1.0KG
Working environment requirements	Temperature: -10℃ ~ +40℃ Humidity：＜90%RH
Packing Specification	Material: engineering plasticVolume:420140335mm Weight: 6Kgs

Detailed Images

Special color screen display, automatic recording of detection time and date;

Mini-printer to print test results on site (Optional);

Ultra-low power design, continuous use of power supply for 8 to 10 hours;

The upper computer software saves the data in Excel format, and can directly generate word report format. The later software processing is simple and convenient.

Application

Cangzhou Lovely Technology Co., Ltd. is specialize in Nondestructive Test Instrument and Material Test Machine over 12 years, With advanced technologies and best customer service, Our product has exported to more than 100 countries and regions, which win favorable comments from customers worldwide.

We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.

We have has strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.

Our Customers and patent certificate

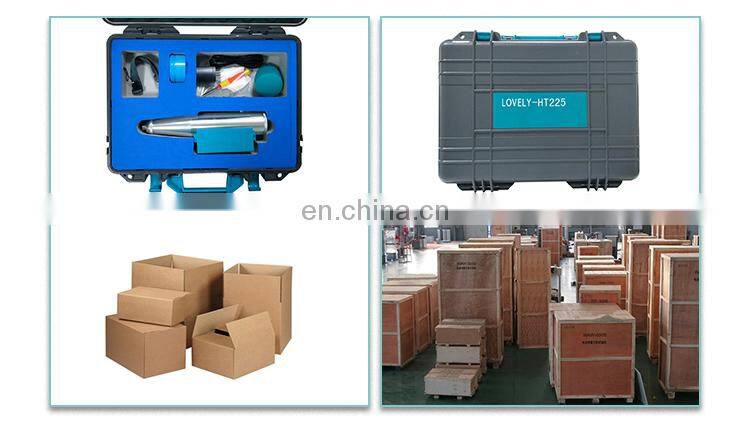

Packing & Delivery

Why Choose us ?

Q1:Are you a factory or trading company? A:We are a factory specializing in testing equipment used for evaluating construction and civil engineering materials. We also deal with various related equipment based on customer's requirement. Q2:Where is the nearest loading port? A:Qingdao port or Tianjin port. Q3:What’s the MOQ of the product? A: One set. Q4:Did your factory pass the ISO 9001? A: YES. Q5:How long is the production cycle after ordering? A:Based on the order. Generally it is about 3-10 days. Q6:What is the payment method? A:T/T payment, West Union, L/C payment ect. Q7: Do you support customizing service? A: Yes, we could customize the out package, machine's color, Logo and Voltage as request.
