Crack Width Tester/Ruler Measurement for the Concrete
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
DIGITAL CRACK MONITOR Measurement for the Construction
-
NDT Concrete Wireless Crack Width Gauge for Wholesale
-
Wireless Concrete Crack Width Gauge for Sale
-
Crack Depth Gauge for the Construction Test
-
Ultrasonic Crack Depth Measurement of Surface Concrete
-
Ultrasonic Pulse Velocity Testers for Pile and Concrete
Product Description

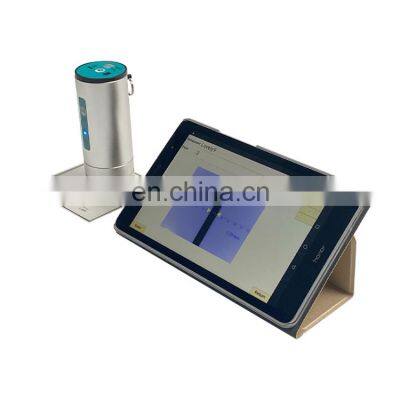

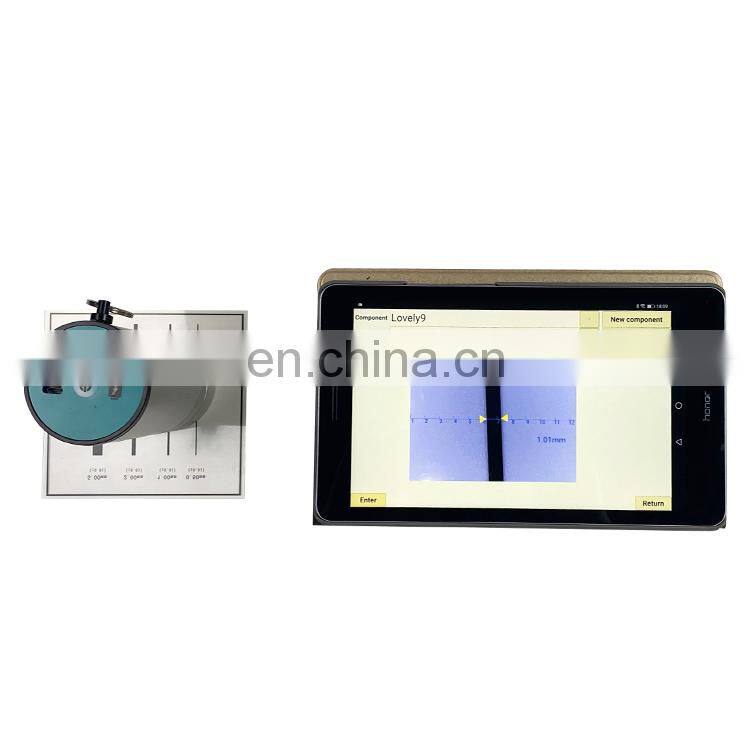

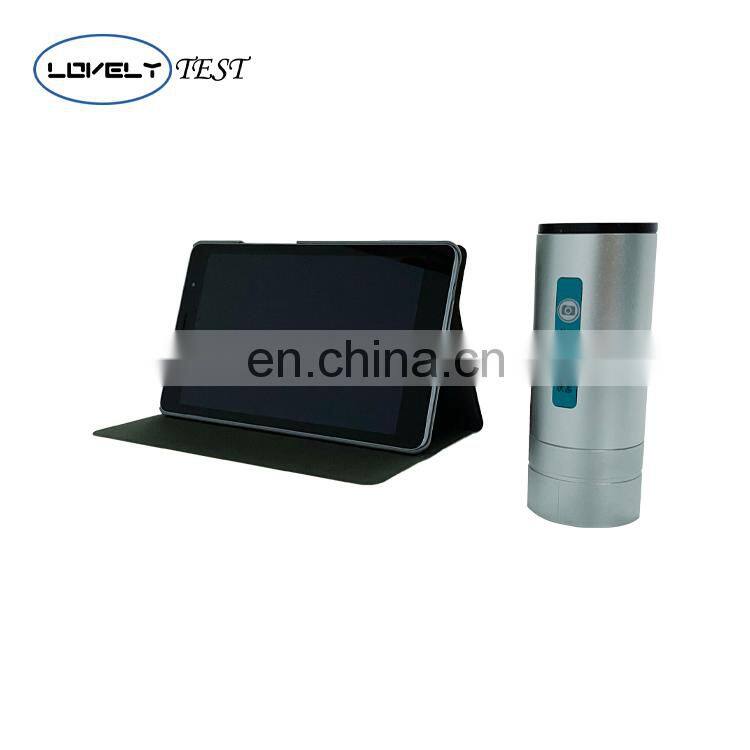

F230 Wireless Concrete Crack Width Gauge

Product Description
F230 Wireless concrete crack width gauge is used to measure crack width in concrete buildings such as houses, roads and bridges.

Main Features
1.Newly upgraded wireless cloud transmission function;
2.Original wireless camera probe, quick shot button easy to operate;
3.The host adopts Android tablet computer, Chinese full touch operation;
4.Intelligent interpretation of oblique cracks, without vertical;
5.The image can be enlarged and reduced, and the interface display scale can be manually assisted to interpret;
6.Tablet and TF card storage, large capacity without limit, copying data is convenient and fast;
7.The data analysis and report form are included in the main unit, which can be owned without transferring to the host computer.
2.Original wireless camera probe, quick shot button easy to operate;
3.The host adopts Android tablet computer, Chinese full touch operation;
4.Intelligent interpretation of oblique cracks, without vertical;
5.The image can be enlarged and reduced, and the interface display scale can be manually assisted to interpret;
6.Tablet and TF card storage, large capacity without limit, copying data is convenient and fast;
7.The data analysis and report form are included in the main unit, which can be owned without transferring to the host computer.



Parameters
Item | F230 |
Host system | Andriod system tablet |
Test scope | 0-10mm |
Measurement accuracy | 0.01mm |
Estimable accuracy | 0.01mm |
Magnification | Digital 60 times |
Width Detection | Stand by |
Timing monitoring | not support |
Storge capacity | 32G(expandable) |
Data transmission mode | Wireless cloud transmission (optional) |
Probe powder supply mode | Built-in rechargeable lithium battery |
Operational mode | Touch screen + shortcut |
Connection mode | Wifi connection |
Interpretation method | Automatic interpretation/manual interpretation |
Working environment | Temperature: -10℃~40℃ Humidity: <90%RH |
Packing specification | Material: engineering plastic Volume: 420x140x335 Weight: 4.5kg |


Application


Contact US

Cangzhou Lovely Technology Co., Ltd is specialize in NDT Testing Equipment and Material testing machine over 10 years,Withour advanced technologies and best customer service, Our product has exported to more than 100 countries and regions,which winfavorable comments from customers worldwide.

We adhere to the high standards of product quality, strict requirements, adopting the world-class production equipment, advanced management and production experience, developing the high-quality testing equipment.

We have strong sales team and a comprehensive service process to serve end customers around the world.If you have any inquiry or concern,Sales and after service department will reply you within 24 hours.
Our Customers and patent certificate



Packing & Delivery


Why Choose us ?
Q1:Are you a factory or trading company?
A:We are a factory specializing in manufacturinf all kinds of tester.
Q2:Where is the loading port?
A:Qingdao port or Tianjin port.
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001.
Q5:How long is the production cycle after ordering?
A:General it is about 7-20 days.
Q6:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
A:Qingdao port or Tianjin port.
Q3:What’s the MOQ of the product?
A:Different item has different MOQ.normally one stand is preferred.
Q4:What certificates do you have?
A:We have ISO 9001.
Q5:How long is the production cycle after ordering?
A:General it is about 7-20 days.
Q6:What is the payment method?
A:T/T payment is preferred and other payment terms is accepted.
