RBL Scanning Reinforcement Protection Layer Tester
Usage Overview

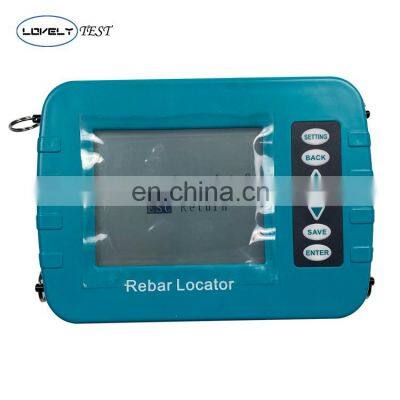

The Rebar locator is a portable non-destructive testing instrument, which can be used for the detection of the construction quality of reinforced concrete structures. It can measure the position of steel bars on concrete surface and detect the thickness of the protective layer of the steel bars and the diameter of the steel bars; In addition, the position of magnets and conductors in concrete structures can also be detected, such as cables and plumbing pipes inside walls. The detection before construction can effectively avoid damage to these facilities and reduce accidents.
Product Description
Specification
Product model | RBL&RBL+ | ||
Applicable range of protective layer thickness(mm) | ∅6mm~∅50mm | ||
First range | 6mm-90mm | ||
Second range | 6mm-200mm | ||
Maximum allowable error of second range protective layer thickness | ±1(mm) | 6-80mm | |
±2(mm) | 81-119mm | ||
±4(mm) | 120-200mm | ||
Applicable scope of diameter estimation | ∅6mm~∅32mm | ||
Maximum error of diameter indication | ±1 specifications | ||

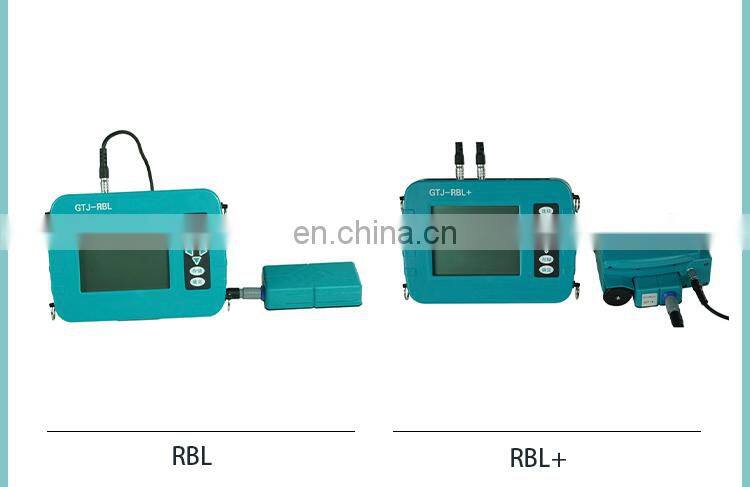

Section grid | RBL: Not support; RBL+:Graphics+Digital Display | ||
Storage quantity | 2000 components*1000 measuring points | ||
Data transmission mode | USB, Wireless clod transport()options | ||
Power supply mode | Lithium battery | ||
Host parameters | Waterproof parameters:IP65 | ||
Screen size: 5 inches | |||
Resolving power: 320x240 | |||
Volume: 195x140x45mm | |||
Weight: 0.8kg | |||
Powder supply | Large capacity lithium battery for more than 12 hours | ||
Working environment requirements | Temperature:-10℃~40℃ | ||
Humidity: ＜90%RH | |||
Other requirements | There is no corrosive gas in the air, No strong electromagnetic interface There should be no major shocks or shocks instruments to avoid direct sunlight | ||
Packing Specification | Material:Engineering plastics Volume: 420x140x335mm Weight: 5.5kg | ||
Product Features
1.Upgraded wireless cloud transmission function
2.Adopt three anti-shell design, waterproof, dust-proof and shock-proof
3.Large screen high resolution LCD screen, the interface
has Chinese prompts, more intuitive display content
has Chinese prompts, more intuitive display content
4.Built-in large capacity memory card, storage capacity upgrade
5.USB transmission simulates the host computer as a U disk and reads data as easily as a U disk
6.Real-time display of protective layer thickness and steel signal image, minimum automatic locking
7.Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth
8.Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work 9.Professionaldata analysis software, so you’re your post-processing data and report generation work can be easily completed

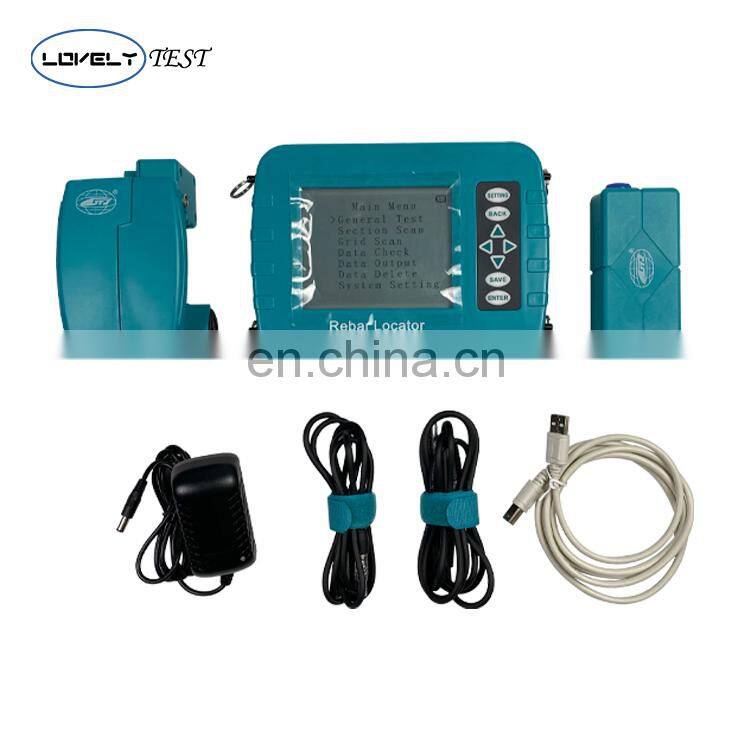

Unpacking display
Our Advantages
Installation and training
· If buyers visit our factory and check the machine, we will teach you how to installand use the machine, and also train your workers/technician face to face.
· Without visiting, we will send you user manual and video to teach you to install and operate.
After Service
· One year guarantee for whole machine.
· 24 hours technical support by email or calling
Any questions, please contact me without hestitation, welcome your inquiry!Price can be negotiated
