ASTM D5397 Geomembranes Notched Constant Tensile Load Testing DeviceNegotiableMOQ: 1
Product Application.
It is mainly applicable to the geomembranes used on the landfill site. Dumbbell shaped notched test specimens from a polyolefin sheet are subjected to a constant tensile load in the present of a surface-active agent and at an elevated temperature. The time to failure of test specimens is recorded and the results of a series of such tests conducted at different stress levels are presented by plotting stress level against failure time for each stress level on a log-log axis.
STANDARDS | ||||||
ASTM D5397 | ||||||
Note: This environmental stress cracking resistance tester can conform to but not limit to all the standards above, for more standards conformance, please contact us. | ||||||

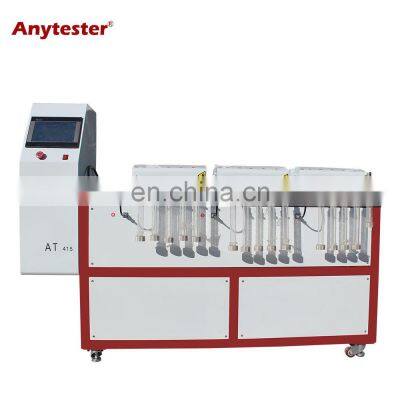

SPECIFICATIONS FOR AT415 NOTCHED CONSTANT TENSILE LOAD TESTER | ||||||
No. of test unit | 6 or customize | |||||
Working position | 5pcs per test unit | |||||
Load range | 200~1370g | |||||
Tube weight | 196±3g | |||||
Tube bearing weight | 600g | |||||
Timing range | 1s~9999h59min59s | |||||
Timing accuracy | 1s | |||||
Timing deviation | 1min | |||||
Volume of bath | 125L | |||||
Temperature control range | RT~80℃ | |||||
Display resolution | 0.1℃ | |||||
Temperature accuracy | ±0.5℃ | |||||
Clamp axis diameter | Φ6 | |||||
Operation temperature | 10~35℃ | |||||
Heating power | 3.0kw | |||||
Power supply | Single phase, (187~242) VAC, 50Hz, 4.5kw | |||||
Dimensions | 1900×500×1400mm (L×W×H) | |||||

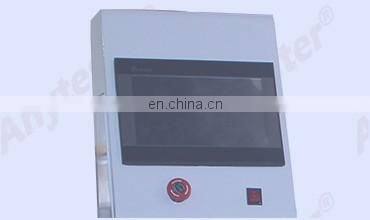

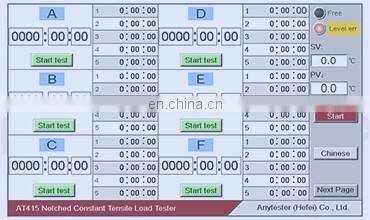

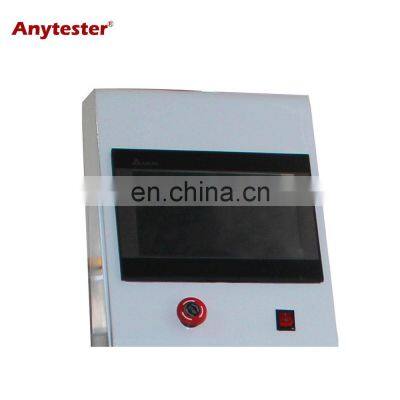

Touch Screen Control
> Large LCD display
> Touch screen control make the operate simple
> Modularization desigmake after sale service easy
Modularization Design
> English and Chinese language changeable
> Remote control for software update anytime
> Historical date date query and print available
> Test report can be output and store on PC

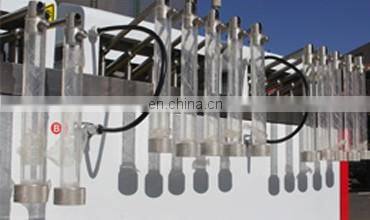

High efficient performance

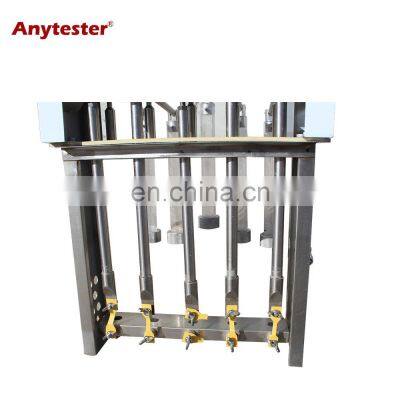

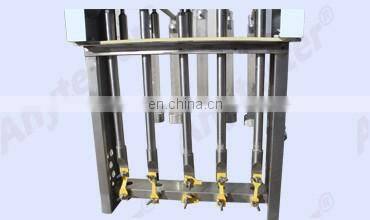

> 6 test units can work separately
> 5 working positions per test unit
> test 30 specimens at the same time
High quality material
> High quality stainless steel make the machine long life
> Good machinery technology perform nice appearance

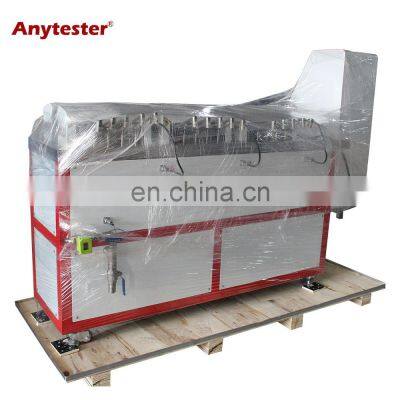

Packaging | ||
Size | 85 (L) * 51 (W) * 94 (D) | |
Weight | 60Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
ERIC QIN | ||
Website | ||
Mobile Phone | +86 188 5510 5986 | |
Whatsapp | +86 188 5510 5986 | |
Skype | eric-qlk | |
Wechat | +86 188 5510 5986 | |
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
