Notch Making Machine for Izod & Charpy Impact Tester

Anytester (hefei) Co., Ltd.
Notch Making Machine for Izod & Charpy Impact Tester thumbnail-1
Notch Making Machine for Izod & Charpy Impact Tester thumbnail-2
Notch Making Machine for Izod & Charpy Impact Tester thumbnail-3
Notch Making Machine for Izod & Charpy Impact Tester thumbnail-4
Notch Making Machine for Izod & Charpy Impact Tester photo-1
Notch Making Machine for Izod & Charpy Impact Tester photo-2
Notch Making Machine for Izod & Charpy Impact Tester photo-3
Notch Making Machine for Izod & Charpy Impact Tester photo-4
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Product Description


AT403 Automatic Notch Making Machine is used for specimen preparation for impact testing of plastics and related materials.

Standard
ASTM D256
ISO 179, 180
GB/T 1043, 1843
JB/T 8761


Note: For more standards, please contact us

Specification of AT403
Operation mode
Automatic
Maximum specimen thickness
25mm
Motor speed
1440r//min

Cutter types
A: 45°±1° R0.25
B: 45°±1° R1.0
Notch types
Type A, type B
Power supply
AC220V, 50Hz
Dimensions
316*366*450mm
Weight
30kg
Details & Features


Over view

> Make 5 samples each time

> Small size, easy to move

> high quality material and painting process, nice appearance



High quality stainless steel working table

> Stainless steel make the machine long lifetime
> Nice appearance



Notch depth can be adjustable

> equipped with micrometer to adjust the notch depth




Smooth notch

> Special design cutter
>High speed rotation reach to 1440RPM, the other’s only 500RPM

>Smooth notch make the test result more accurate

Our Company

History

Since 1982 with more than 20 years’ experience

Warranty

Two Year Warranty for whole product

Training

Video and user manual for training

Onsite service

Installation and training service is available

Testing service

Free sample testing before order is available

Lead time

15 working days lead time for most product

Certifications

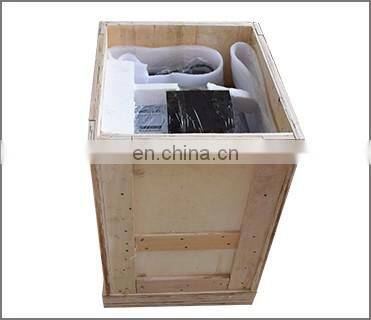

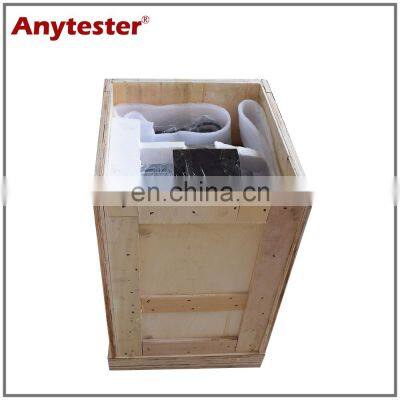

Packing & Delivery
Packaging
Size
43(L) * 48 (W) * 67 (D) Cm
Weight
50Kg



Packaging Details
1. The equipment is covered with film is protect it from water vapour during the trip.
2. The box is filled with foam to protect the equipment from impact.
3. Exported wooden box made from plywood, don't need fumigated.
Payment




Payment Term


T/T
EXW

30% T/T in advance, paid the balance before shipment
FOB
CFR(C&F)

30% T/T in advance, paid the balance against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
West Union

Amount lower than 5000usd
West Union
Delivery Time
7~10days after receiving payment for one container
