Product Description

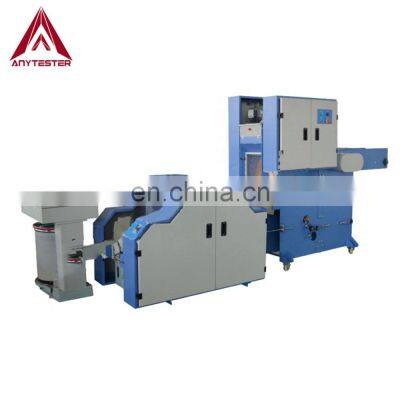

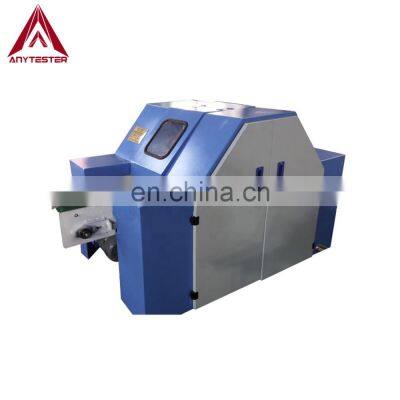

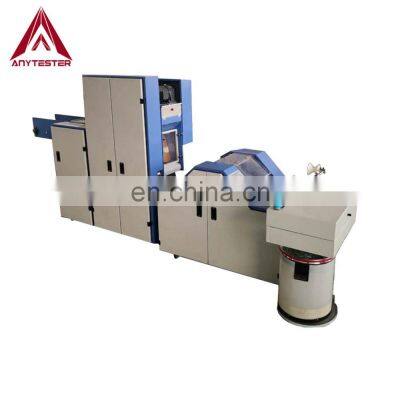

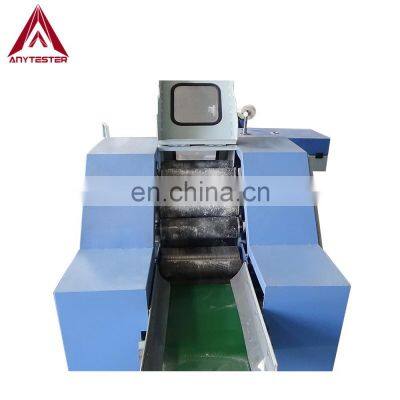

AT202 Laboratory Carding Machine for Wool is part of the mini spinning system. It’s mainly used in university, researching center etc. It is used to disentangle, clean and intermix fibers to produce a continuous web or sliver suitable for subsequent processing. By passing the fibers between differentially moving rollers covered with card clothing, it breaks up locks and unorganized clumps of fiber and then aligns the individual fibers to be parallel with each other.
Specification
Model | AT202 |
Cylinder width | 360mm |
Cylinder diameter | Φ270mm |
Doffer diameter | Φ160mm |
Licker-in roller diameter | Φ60mm |
Work roller diameter | Φ60mm |
Stripping roller diameter | Φ60mm |
Feeding roller diameter | Φ60mm |
Speed | Adjustable(Frequency converter control) |
Villus bucket power | 1.5KW |
Output capacity | 5-10kg/h |
Maine machine power | 220V/380V, 50/60Hz, 2.2KW |
Dimension | 1350mm*950mm*900mm(main machine) |
900mm*900mm*1200mm(villus bucket) | |
Weight | 800kg |
Details & Features
★ Imported frequency converter control, high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for wool fiber or chemical fibers
★ Can equipped with villus bucket or hopper to improve the quality of output sliver/web
★ This machine can output both sliver or web according to customer’s request.
Our Company
History
Since 1982 with more than 20 years’ experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Packing & Delivery
Packaging | ||
Dimensions | 1400*900*1600mm | |
Weight | 200kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
