Home > Manufacturing & Processing Machinery > Textile Machinery & Parts > Spinning Machine > 12 Spindles Available Mini Laboratory Wool Yarn Twisting Frame
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2012
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Lab Yarn Ring Spinning System Twisting MachineNegotiableMOQ: 1 -
Lab Scale Yarn Doubling And Twisting MachineNegotiableMOQ: 1
-
Lab Scale Melt Spinning Machine Accessories Spinner PlateNegotiableMOQ: 1
-
Lab Scale Melt Spinning Machine Accessories FilterNegotiableMOQ: 1
-
Lab Scale Melt Spinning Machine Accessories Spinner PackNegotiableMOQ: 1
Product Description

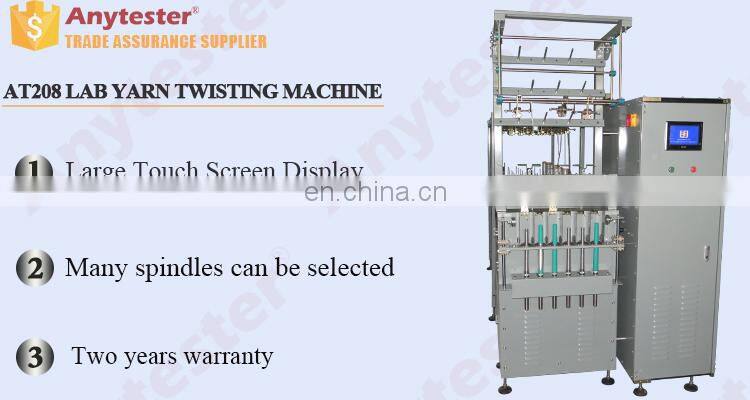

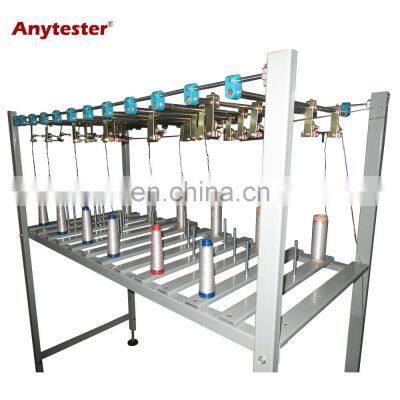

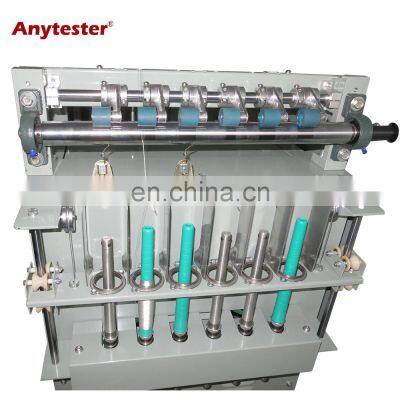

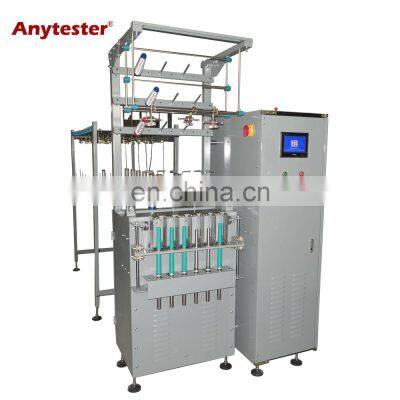

AT208 Laboratory Twisting Machine is part of the mini spinning system. It’s mainly used in university, researching center etc. and
it is used to twist plied yarn into folded yarns through ring spinning and twisting.
Features
★ It adopts touch screen and PLC control.
★ Imported frequency converter of high efficiency.
★ Mini type machine, save researching cost and easy to operate and maintain.
★ Can be used for cotton fiber or wool fiber (alternative) with different parts
Specification
Model | AT208 | ||
Spindle number | 12 | ||
Spindle length | 205mm | ||
Spindle speed | 5000~20000 RPM | ||
Spindle gauge | 42mm | ||
Roller diameter | 25mm | ||
Ring diameter | 38/42/45mm | ||
Output capacity | 0.25 ~ 1kg/h | ||
Max. output speed | 42m/min | ||
Twist range | 1200 ~ 2000 twist/m | ||
Power | 220V/380V, 50/60Hz, 850W | ||
Dimension | 1200*800*1600mm |
Packing & Delivery
Packaging | ||
Size(mm) | 1300 (L) * 900 (W) * 1800(D) | |
Weight | 400Kg | |
Packaging Details | 1. The equipment is covered with film is protect it from water vapour during the trip. 2. The box is filled with foam to protect the equipment from impact. 3. Exported wooden box made from plywood, don't need fumigated. | |
Contacting us
ERIC QIN | ||
Website | ||
Mobile Phone | +86 188 5510 5986 | |
Whatsapp | +86 188 5510 5986 | |
Skype | eric-qlk | |
Wechat | +86 188 5510 5986 | |
Payment
Payment Term | T/T | EXW | 30% T/T in advance, paid the balance before shipment | ||
FOB | |||||
CFR(C&F) | |||||
CIF | |||||
L/C | L/C amount above 50,000 usd, we can accept L/C at sight | ||||
West Union | Amount lower than 5000usd | ||||
West Union | |||||
Delivery Time | 7~10days after receiving payment for one container | ||||
Our Company
History
Since 1982 with more than 20 years' experience
Warranty
Two Year Warranty for whole product
Training
Video and user manual for training
Onsite service
Installation and training service is available
Testing service
Free sample testing before order is available
Lead time
15 working days lead time for most product
Related Products
AT205 lab roving machine | HY1002 Lab carding machine | HY1004 Lab drawing machine | HY1007 Two for one twister |
