Sauce Filling Machine Oil Filling Machine Pouch Packing Machine

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Multi-function Automatic Liquid Fruit Juice Jam Vertical bag standing pouch Packaging Machine food beverage

Products Description

Application

>What can this machine pack?

Fill free flowing liquid, such as water, sauce, edible oil, cream, seasoning sauce, honey,

tomato sauce,shampoo,shower gel and many more.

Machine Information

The machine is equipped with inverter, PLC, servo motor, voltage regulator, etc. to ensure the stable operation of the machine.
Cooperate with Mitsubishi, Delta, Schneider, Omron, Siemens and other brands.

Machine Parameters

Machine Host Model	320L	420L	520L	620L	720L	820L
Film Width (mm)	Max.320	Max.420	Max.520	Max.620	Max.720	Max.820
Bag Length (mm)	80~240	80~300	80~350	150~350	100~450	80~500
Bag Width (mm)	50~150	60~200	80~250	200~350	100~350	180~400
Filling Range (ml / g)	150~800	150~1500	150~2000	150~4000	150~4000	150~6000
Packaging Speed (bags/min)	5~70	5~60	10~50	5~50	10~40	5~30
Machine Powder	220V 50/60HZ 2KW	220V 50/60HZ 2.2KW	220V 50/60HZ 3KW	220V 50/60HZ 3KW	220V 50/60HZ 3.6KW	220V 50/60HZ 3.6KW

Main Features

1）Imported PLC full computer control system, color touch screen, easy to operate, intuitive and efficient.

2）Impoted servo film transport system, imported color code sensor, accurate positioning, excellent overall performance and beautiful packaging.
3）A variety of automatic alarm protection functions to minimize losser.
4）Flat cutting, pattern cutting, linking cutting can be realized by changing the tools;easy operation with smooth bags.
5）Bag-making equipment can be changed according to specific requirement of customers and products.
6）Optional English or other languages screen display, easy and simple operation. Both packaging speed and bag length can be set with one click.
7）All machines have CE certification and ROSH certificate.

Why Choose Us

JIKE BEE MACHINERY has a professional team to provide customers with various packaging solutions. Fully understanding the needs of customers,engineers design the most suitable solution. We have our own processing and assembly workshop and quality inspection and debugging process to ensure the quality of the machine.

After acceptance by the customer, they are packed in international standard wooden cases and shipped.

Machine Working Process

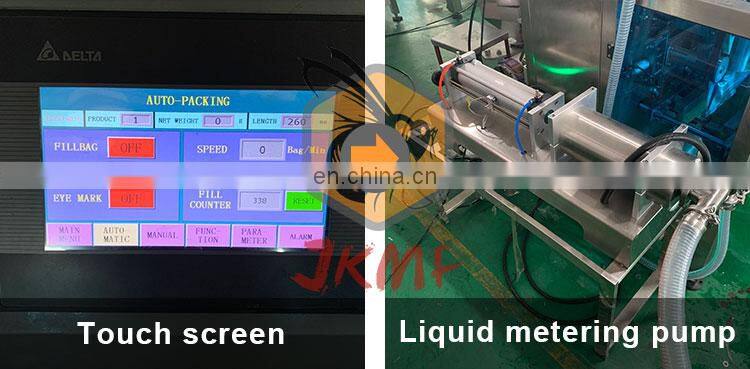

1st step: Setting the parameters you want by touch screen.

2nd step: The Liquid metering pump automatically measures and fills according to the set parameters.

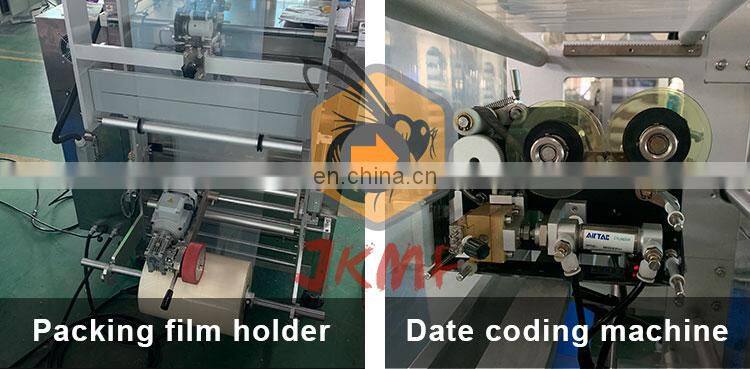

3rd step: The motor automatically pulls the film quickly, and the date printer prints the date at the same time.

4th step: The bag former will make the bag automatically.

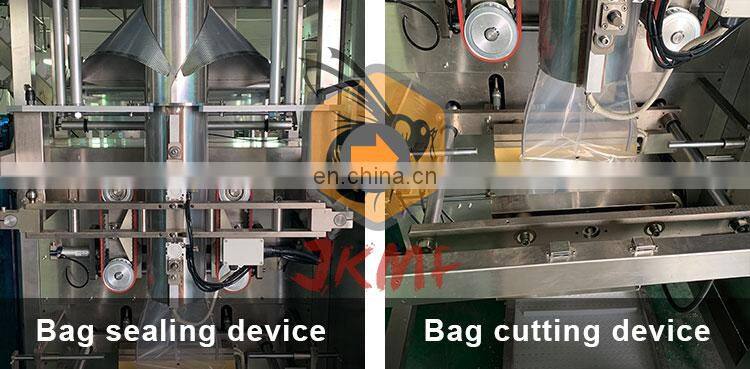

5th step: The horizontal and vertical cutter device will seal the middle and of the bag.

6th step: You will get the nicely paper or plastic bag type.

Company Profile

Foshan Jike Bee Automation Equipment Co., Ltd. is a manufacturer of automatic packaging equipment.We are a production-oriented enterprises focused on product innovation, factory direct sales and perfect after-sales service in one.The automatic packaging equipment for granule, powder, liquid and sauce produced by the Jason company is at the advanced level of the industry,it can be customized production automatic material packaging line for all kinds of products .Mainly applicable to: food, hardware, drugs, daily chemicals, pesticides, fruits and vegetables, cosmetics, other industries.The company has its own patent and product technical certification, which can bring customers high quality equipment and worthy of customer trust.

Customer Photos

Our customers have covered more than 80 countries around the world.And give us unanimous praise.

Certifications

FAQ

Q1:Do you have manual or operation video for us to know more about the machine?
Yes, not only manual or operation video, 3D drawing also available to make as per your design,also the video we can make of testing the material from our packaging machine if your packing goods easier for us to find from our local market.
Q2:How can I trust you for the first time business ?
Please note our above business license and certificate. And if you don't trust us, then we can use trade assurance service, guarantee your money, and guarantee your machine's on-time delivery and machine quality.
Q3:Is engineer available to serve oversea?
Yes, but the travel fee is paid by you. So actually to save your cost, we will send you a video of full details machine installation and assist you till the end.
Q4:How can we make sure about the machine quality after we put the order?
Before delivery, we will send you the pictures and videos for you to check the quality, and also you can arrange for quality checking by yourself or by your contacts in China.
Q5:Will you provides the door to door service?
Yes. Please offer us your final destination, we will check with our agent to see if it available, and most of the area is ok for us to clearing and sending in your countries.
