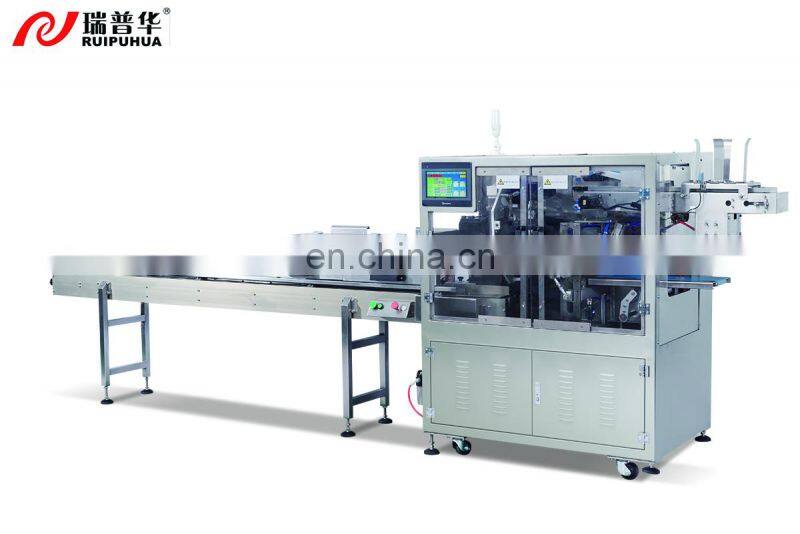

Preformed Bag Automatic Bread Cake Biscuit Filling Sealing Packing Machine

Application

Suitable for customers that have high requirements to packaging. This machine uses preformed bag instead of plastic film, manual feeding or directly connect to bread/cake/biscuit production line, then feed into sealing machine to finish packaging. High speed, high efficiency.

Technical Parameter


Main performance and structural characteristics:

1. The whole machine adopts linear feeding method, which has a small footprint, saves workshop space and improves space utilization.

2. The whole machine is designed with a 4-station structure and compact design. The operation is controlled by PLC and large-screen touch screen, which is simple and convenient to operate.

3. Supporting fault automatic alarm tracking system, real-time display of operating status.

4. Adopt high-sensitivity electric eye to detect materials and open bags, realize no bags without pushing materials, anti-air bags, and effectively reduce the defective rate.

5. The main transmission system adopts servo positioning control, with accurate positioning, stable operation and low failure rate.

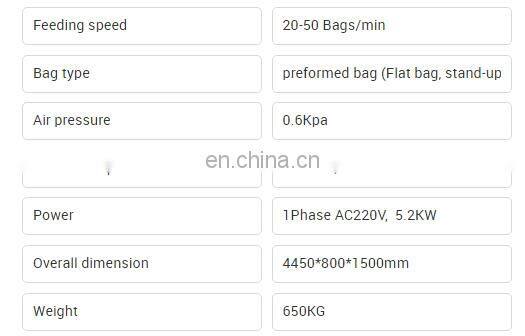

Equipment performance parameters:

1. Model: TD150

2. Packaging speed: 20-50 bags per minute (speed varies according to product size)

3. Packaging form: prefabricated bag (flat bag, stand-up bag, zipper bag, M bag, etc.)

4. Air source: air pressure: 0.6Kpa air consumption: 1.1 cubic meters per minute

5. Whole machine weight: about 650Kg

6. Power: Power: single-phase AC220V, whole machine power: 5.2Kw

7. Overall size: 4450×800×1500mm
