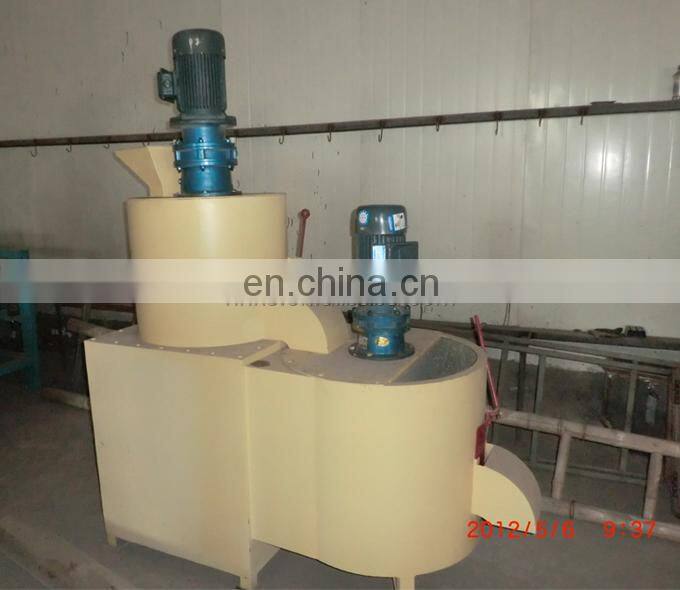

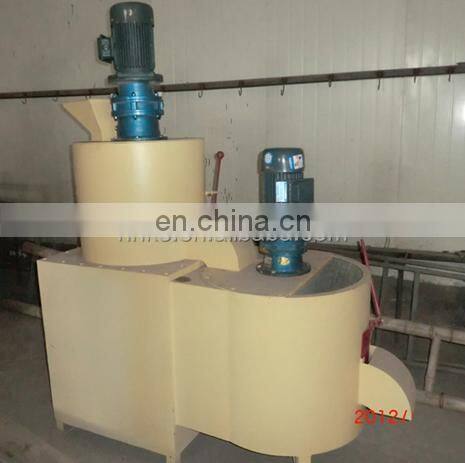

Stainless Steel Automatic Sesame Hulling Machine , Sesame Seeds Peeling Machine, Sesame Seeds Hulling Machine

stainless steel automatic sesame hulling machine , sesame seeds peeling machine, sesame seeds hulling machine

1.APPLICATIONS

Applied for sesame soaking, sesame skin removing, sesame skin and kernel’s separating.

Collect all process together.

2.MECHANICAL STRUCTURES

Mainly include body, composite stirrer, separator, locator, inlets and outlets, and deceleration gear box,etc.

3.OPERATION PRINCIPLES

I.   Soaking

The special stirrer, which is driven by decelerator, puts upward the peripheral sesame seed and the center sesame will continuously move downwards, in this way, the sesame will move up and down, later the sesame soak in water totally.

II. Skin removing

The stirrer driven by decelerator makes the soaked sesame rotating rapidly up and down.  The hull will removed from the kernel by the friction between sesames and the rotating force from the stirrer.

III. Skin and Kernel’s SepErating

The hull and kernel are pushed continuously by the stirrer driven by decelerator to move in radial and axile directions.  The hull is discharged through the holes on the plate, while the kernel is sustained by the plate with holes, and thus they are separated from each other.

4. Specifications

5. Characteristics

An assembly equipment combining processes of soaking, hull removing, and hull separating from kernel.

Easy transport, large output within a short period of time.

High hull removing rate ≥98%

Vertical displacement, compact structure and large output

Easy to operate and with less maintenance.
