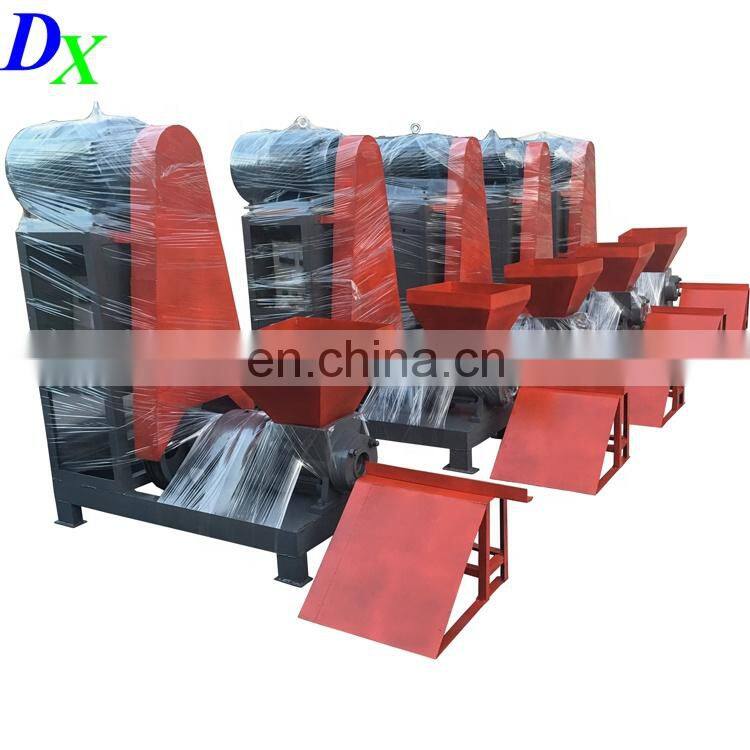

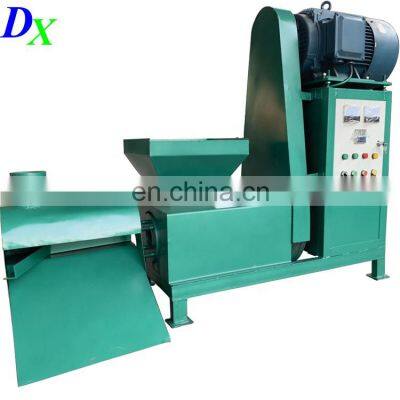

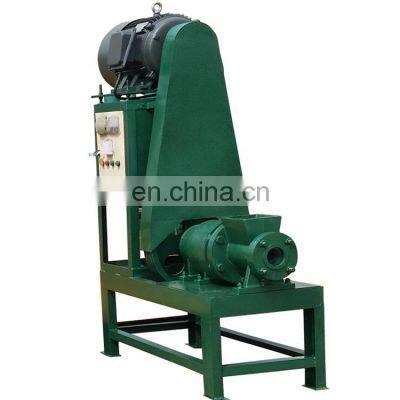

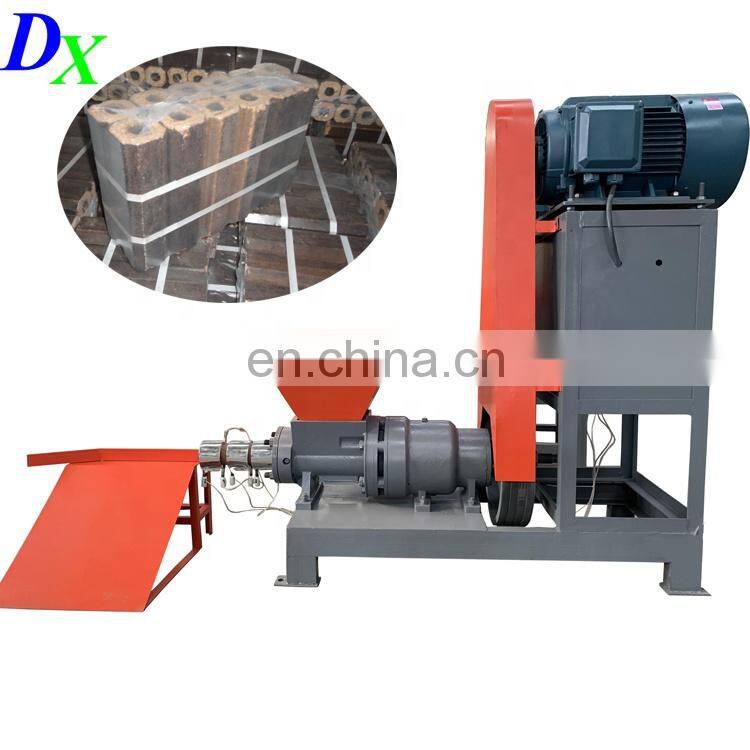

China Manufacture Used Machine to Make Sawdust Briquettes

China manufacture used Machine to make sawdust briquettes

1.machine to make sawdust briquettes takes olive hust,wood, rice husk, peanut shell, plant stalk, and other woodiness carbon containing materials as feeding materials ( no any additives) to make stick shape briquettes under the condition of high pressure and temperature.

 2. The outlet briquettes has the features of high density, small volume, good flammability, which can take place of fuel wood and coal.

 3.The common diameter of briquettes is 50-80mm, and the shape can be square, rectangular, round with a hole in the center.

 The materials requirements of machine to make sawdust briquettes:

 1. The inlet size of raw materials should be less than 5mm. If the raw materials are bigger size, they must be crushed firstly.

 2. The inlet moisture of raw materials must be less than 12%, otherwise, the outlet briquettes are easy broken and have crevice. So before briquetting, the wet materials should be dried.

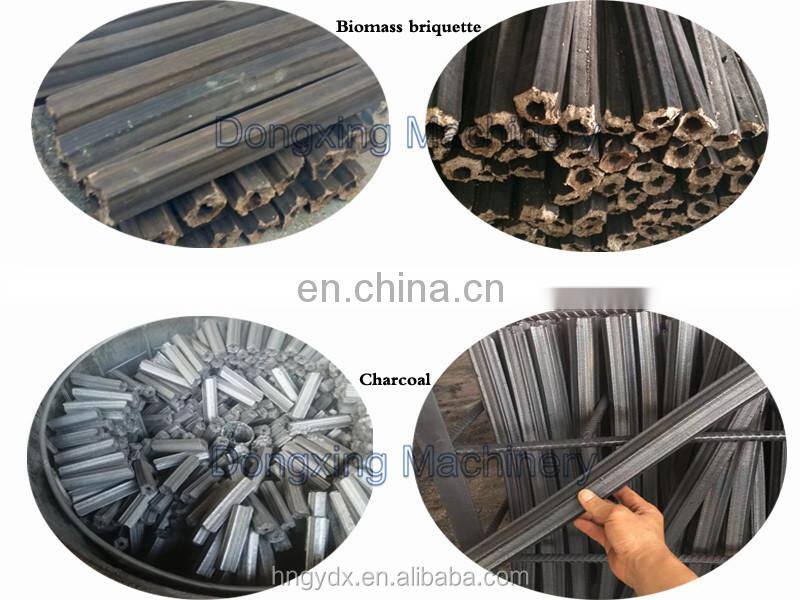

Final briquettes from machine to make sawdust briquettes:

 1. The shape: the outlet briquettes of wood briquette machine can be round, rectangular, hexagonal stick shape.

2. The size: diameter of ourlet briquettes can be 50-80mm, and the length can be 15-80cm

 Spare parts of machine to make sawdust briquettes:

 The parts of machine to make sawdust briquettes have been improved quality which are durable and long time using.

1. Heating ring: The quality material of heating ring is the stainless steel, and inner is the electric heating wire. The role of heating ring is to make the surface of briquette rods hardening. Each wood briquette machine has three heating rings, and its working temperature is more than 350 celsius degree.

2. Propeller: Propeller of wood briquette machine is to propel the raw materials for briquetting.

3. Shaping Drum: Each wood briquette machine has one shaping drum

Parameters of machine to make sawdust briquettes:

 The production line related to machine to make sawdust briquettes:

The production line of machine to make sawdust briquettes to make charcoal is: Crusher (crush the wood into less than 5mm particles) --> Dryer (the dryer can be rotary dryer or sawdust dryer which are drying the small particles to less than 12% moisture) --> energy-saving wood sawdust briquetting presses machine (make the small dry particles into wood briquettes) --> Carbonization furnace (carbonize the wood briquettes into charcoal briquettes).

briquette heating :
