Product Description

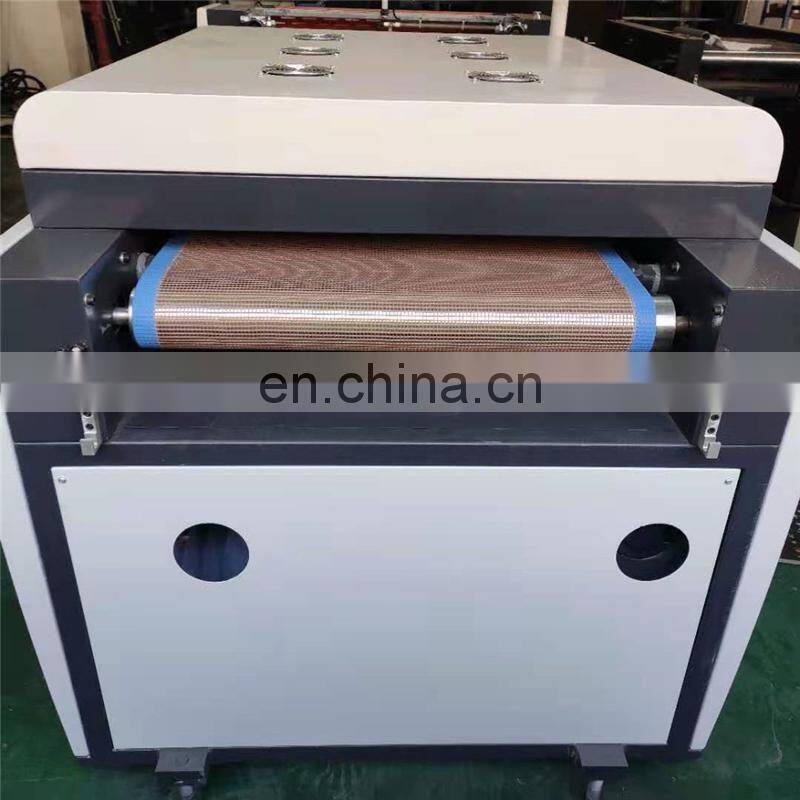

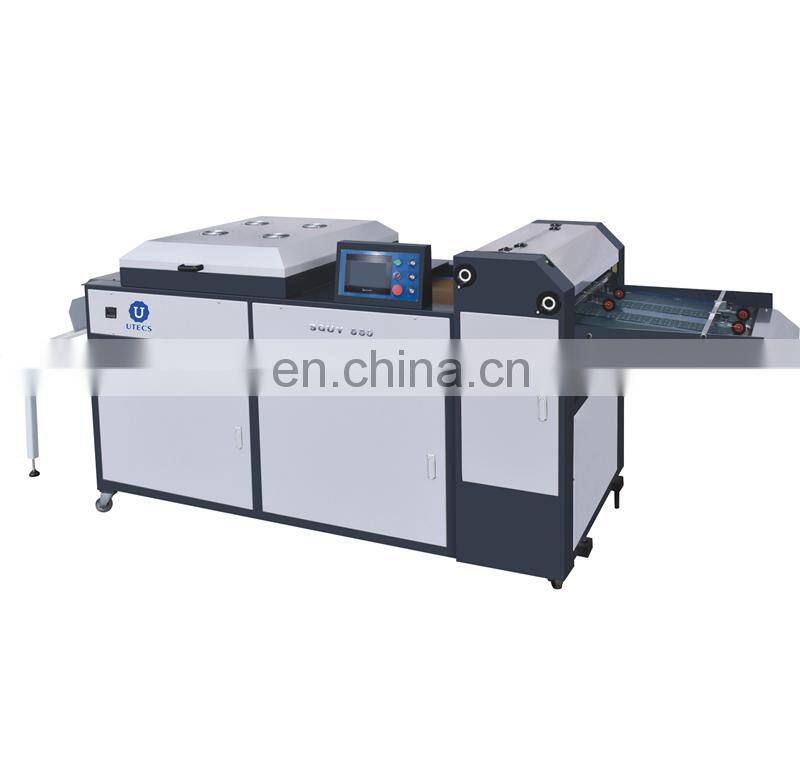

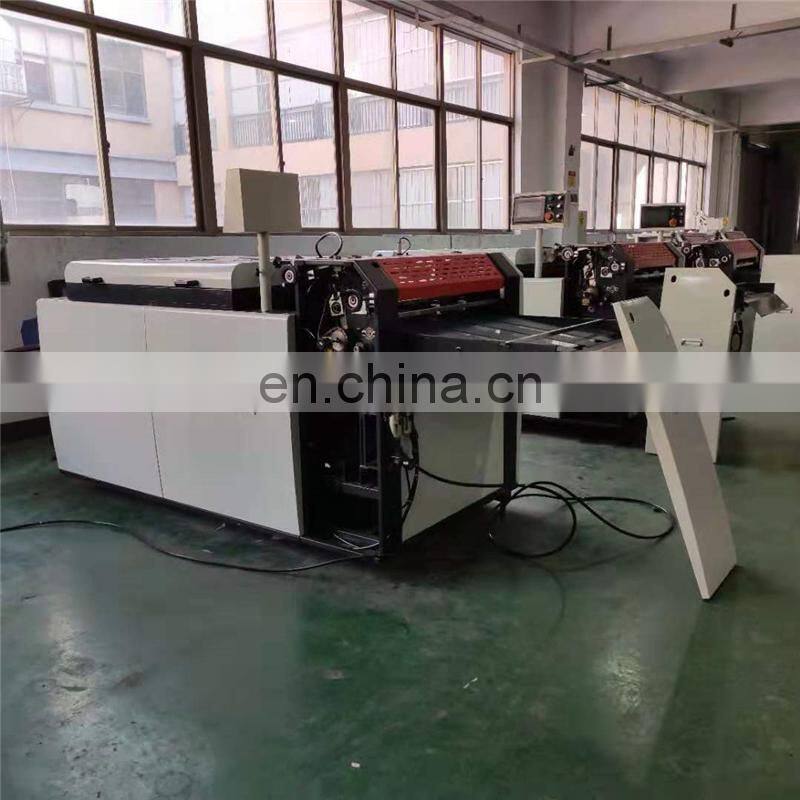

SGUV620 Two Purpose Manual paper UV Coating Machine card board varnishing equipment with IR tunnel oven dryer
Video demonstration only for reference
Video 01: /watch?v=bhPAi90PfIU
Video 02: /watch?v=Cpu0Ecpxv7M
Features:
1, Equipped with UV curing and IR drying system online.
2, Speed control by Digital frequency converter and independent conveyor driven.

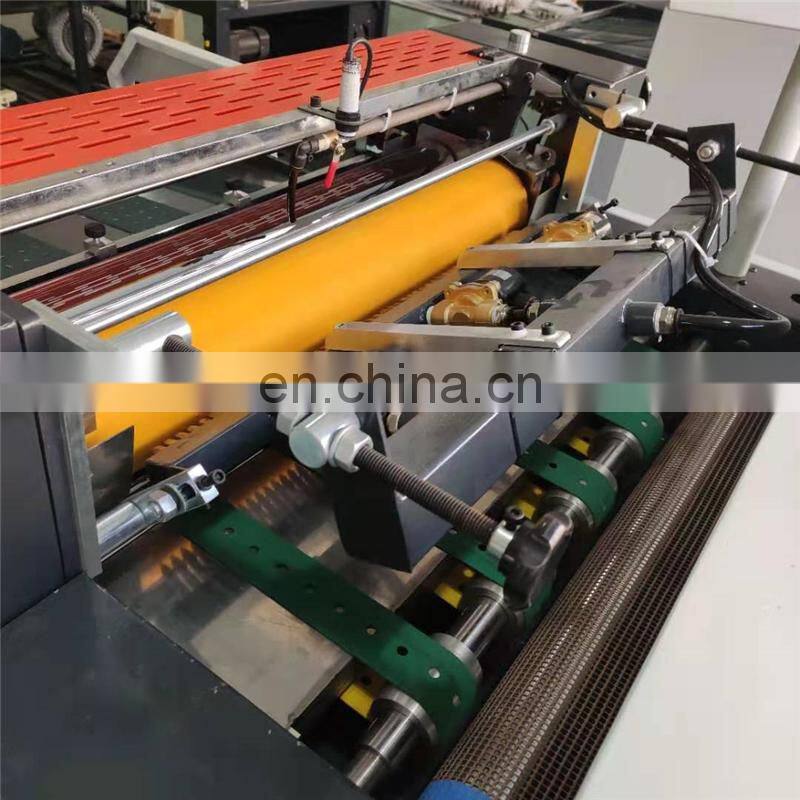

3, Larger diameter coating rollers makes the coating effect smoother & brighter.
4, Full coverage splash covers to protect from splashing.

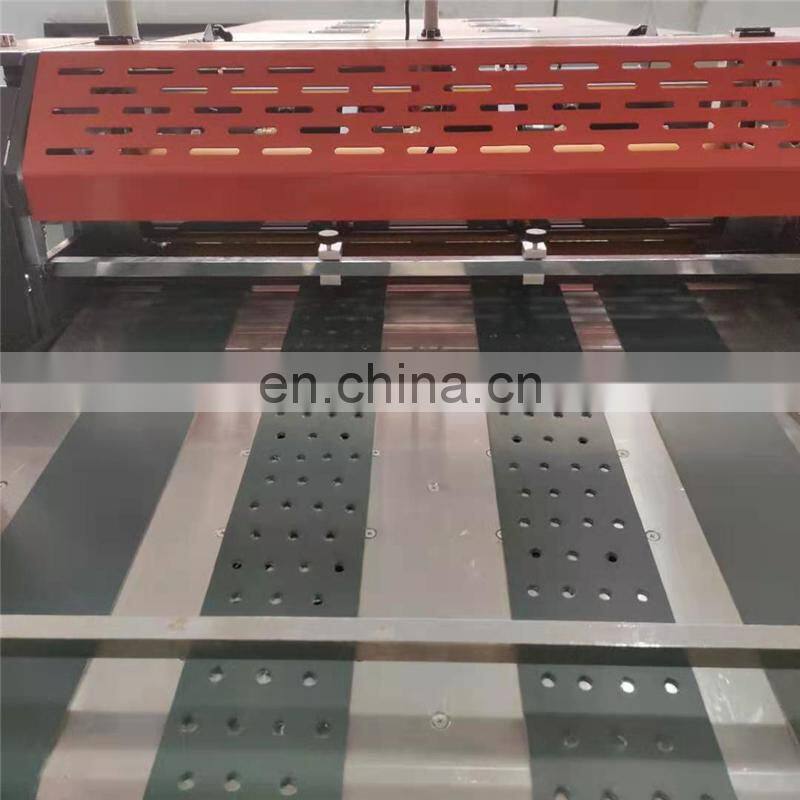

5, Vacuum airbed to maximize the power to hold paper sheets tight on conveyor
6, IR magnetic leakage transformer with parallel capacitor design endures the voltage fluctuating impact.
7, Two level lamp power setting.
8, Easy access to IR lamp chamber and replacement.
9, High speed blower fan for cooling and exhaust.
10, Safety locker on all machine doors and covers.
11, Full coverage protection against UV radiation around the UV lamp chamber.
12, Low temperature control on the UV lamp chamber surface.
13, Emergency stop switches at arms length throughout the machine .
14, Interlocks design prevents against incorrect operation.
Parameters:
Model |
SGUV620A |
SGUV760A |
Max. Sheet Width |
620mm |
760mm |
Min. Sheet Width |
150mm |
150mm |
Sheet Weight |
80-500GSM |
80-500GSM |
Speed |
0-40m/min |
0-40m/min |
Power |
12Kw |
12Kw |
UV Lamp |
1pcsx6.5Kw |
1pcsx6.5Kw |
IR Lamp |
3pcsx1.2Kw |
3pcsx1.2Kw |
Weight |
850kg |
950kg |
Dimension |
3250*1180*1230mm |
3250*1250*1230mm |
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Paper thickness in GSM
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
