Product Description
PCL520B Disposable Plastic Clamshell box Tray Thermoforming Machine, salad fruit plate bowl blister vacuum forming equipment
Video demonstration only for reference
Video 01: /watch?v=u94ymI56-o0
Features:

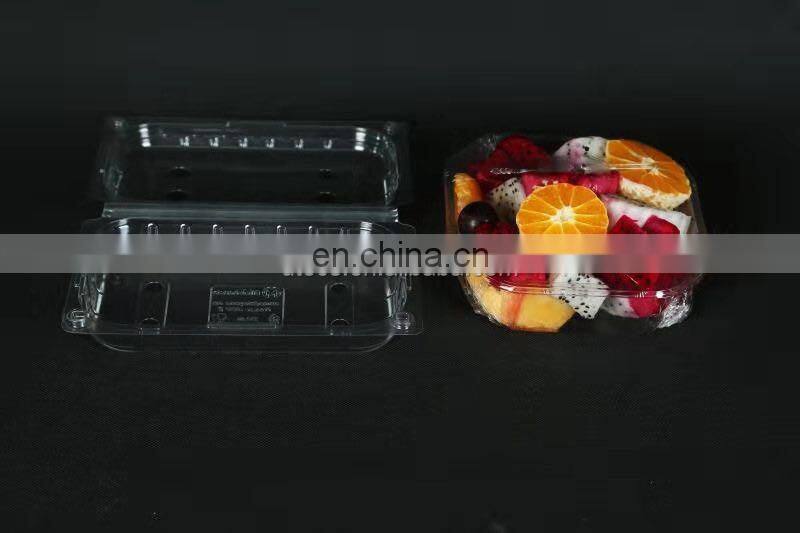

1. Suitable for producing PP, PVC, PET, PLA, PS and EPSmedicine trays, plastic cup lids and thermoforming boxes.
2, Speed reducer synchronized with the motion of main shaft reducing the error to the bottom
3. Equipped with photoelectric switch and PLC controller (optional) letting machine run high smoothly and durably .

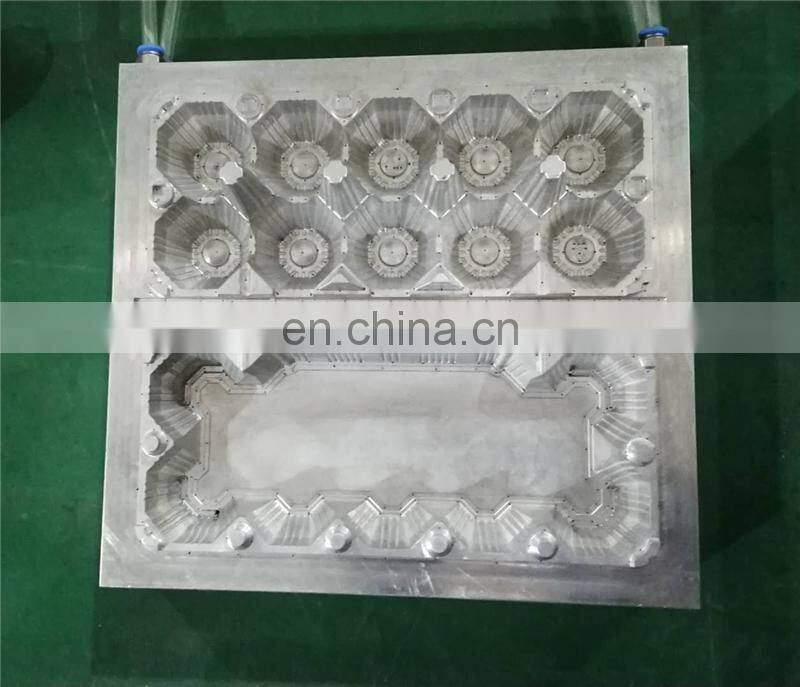

4. Speed and strokes adjustable, simple and convenient for mold changing, stable running and long service.
5. Material unwinding, cup lid forming, hole punching, cutting and collection process in just one pass.
Parameters:
|
Name |
PCL-520A/B |
|
Max. Cutting Speed |
10-35 times/min |
|
Max. Forming Length |
350mm |
|
Max. Forming Width |
530mm |
|
Max. Forming Depth |
50mm (PCL520A) 80mm (PCL520B) |
|
Available Material |
PP/PS/PET/PVC/PLA |
|
Material Thickness |
0.1mm-1.5mm |
|
Heating Power |
22KW |
|
Motor Power |
6KW |
|
Power and Total Power |
380V 50HZ(220V 60HZ) |
|
22KW Three-phase and four-wire |
|
|
Pressure of Water Supply |
0.2MPa |
|
Water Consumption |
0.3m3/h(Tap water or Circulatingcooling water) |
|
Exhaust Volume |
≥0.8m3/min |
|
Air Pressure |
0.6-0.8MPa |
|
Machine Install Size |
6000×1800×2000mm |
|
Packing Size |
6200×2000×2200mm |
|
Max.Width of Material |
560mm |
|
Weight |
4500KG |
Components Brand:
|
NAME |
BRAND |
|
Touch Screen |
Kunlun Tongtai |
|
PLC |
Siemens Germany |
|
Encoder |
Korea |
|
Relay |
Schneider France |
|
Proximity switch |
Schneider France |
|
power switch |
Schneider France |
|
Servo Motor |
INVT (Shenzhen, China) |
|
Temperature module |
Hexin China |
|
Frequency converter |
INVT (Shenzhen, China) |
|
Circuit breaker |
Schneider France |
|
Button switch |
Schneider France |
|
Emergency stop switch |
Schneider France |
|
Solenoid valve |
AIRTAC Taiwan |
|
Cylinder |
AIRTAC Taiwan |
|
solid state relay ; |
Yangming Taiwan |
|
Reducer |
Tongli China |
|
pressure reducing valve |
AIRTAC Taiwan |
We reserve the right to change the component brand without any notification in advance.
Pre-sale Service After-sale Service
A: Inquiry and consulting support A: English manuel and video instruction
B: Sample testing support. B: Your technians can get trained in my factory
C: Invoice and Contract confirmation. C: Engineers available for overseas if necessary
1.Q: What information should i let you know if i want to get a quotation?
A: Detailed size of your finished products in Max and Min?
B: Plastic sheet thickness in mm
C: Some photos of your finished products
2.Q: Are you a manufacturer?
A: Yes we have been manufacturing such machines over 20 years and also we are a professional exporter.
3.Q: What about the payment term?
A: Mostly 30%T/T in advanced, 60% when machine is finished after inspection and last 10% against copy of shipping documents..
4.Q: What is the warranty?
A: Two year warranty after sales (During the warranty period, we respond for free parts dispachment and the buyer is only required to cover the courier express once the machine has any problems. However we do not respond for the consumables and parts broken by mistakingly operation)
5.Q: What is your aftersale service?
A: Any questions will be responded within 24 hours by email, skype, phone call or Whatsapp/Wechat (+86-18258286679). In addtion, we have professional engineer available for overseas service..
6.Q:What is the delivery time?
A: Mostly it takes 10 to 30 workdays after receiving the deposit and confirming the drawing or samples as required.
