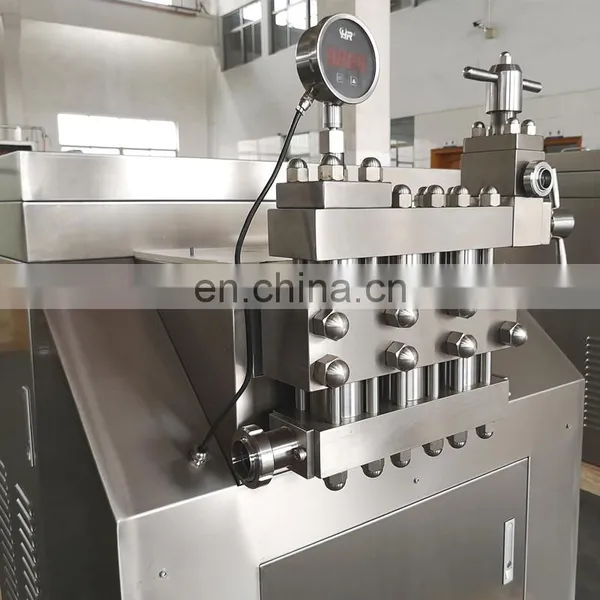

Soy milk homogenizer
- 1000 per Month
- T/T Credit Card
You May Like
Product Description
Product name |
two stage 500LPH to 1500LPH small milk homogenizer machine |
Our Factory manufacture all kinds of homogenizer , Vertical type homogenizer( aseptic milk homogenizer/Juice soft drinks homogenizer/ wine liquor homogenizer/ protein beverage homogenizer/ cold drinks(jelly) liquid homogenizer
Horizontal homogenizer ( lubricating grease homogenizer / chemical industry homogenizer/ Flavouring, condiment, seasoning homogenizer/ some special industry required homogenizer/ |
|
|
Processing capacity |
Depending on clients production requirement, processing capacity from 500litres/hour to 16000Litres/Hour More specific technical sizes plz feel free to Ph:+86 138 183 63408 |
Material |
Shell material choiceable: stainless steel 201, ss302, 316, ss 316l Sanitary stainless steel, ss304, ss316l, All parts, which contact liquid products, are applied with food degree stainless steel, and the main shaft is made of special stainless steel. Sanitary ,hygiene standard
Features: Driving assembly:House is made of grey cast iron HT200, and crank shaft, connecting rod, and gears are made of ductile cast iron. Plunger:the 4th generation stainless alloy(PH-type). Check valve:the 4th generation stainless alloy (GrMoFr),abrade-resisting and impact-resisting. Pump block: stainless steel. Plunger sealing:X4310 and PP spacer with heat-proof reaching 150°C. Homogenizing valve: the 3rd special stainless alloy. All the above-mentioned material are according with sanitary rules and suitable for CIP cleaning. |
Main Advantage |
Homogenizer integrates multi-functions: Homogenization, emulsification, spray, transmission without any milling medium. Generally, the machine is in simple structure, small size, light weight, low noise and running reliable. |
HS code |
8479820090 |
Package |
Plywood box, standard for exporting and protect goods safely delivery. |
Marks |
The processing capacity is depending on different liquid, please feel free to contact our engineer by tel: |
About US/Supplier Types |
1 .Trade Assurance,With Trade Assurance, you'll enjoy: •100% product quality protection •100% on-time shipment protection •100% payment protection for your covered amount 2. Gold Supplier 3. Assessed Supplier 4 . Onsite Checked 5 . A&VChecked 6. we accept Transactions via 7. Payment protection 8 . On-time shipment 9. Wholesale Low MOQS 9. Popular Buying Requests for "Homogenizer" and "milk homogenizer" |
Package |
Plywood box, standard for exporting and protect goods safely delivery. |
Production time |
If electricity is 380V,delivery time is in one week after confirming payment If electricity is 220V/440V, motor need to be customized, delivery time is in 15 to 18 days after payment |
Our Service |
|
Warm tips |
More products details , our Advantage,package ways, lowest price etc pls check next details and contact us ( E: sales at Phone:86-138183 63408 )it's our honor to service for you always |
Check below for more information on placing an order :
1. Inquiry-Professional quotation. |
2. Confirm the price, lead time, artwork, payment term etc. |
3.our sales send the Proforma Invoice with our seal. |
4. Customer make the payment for deposit and send us Bank receipt. |
5. Initial Production Stage-Inform the clients that we have got the payment, And will confirm with you again for the electricity, the pump inlet/outlet connection. After your approval, we inform that we will arrange the production & inform the estimated time. |
6. Middle Production-send photos to show the production line which you can see your products in . Confirm the estimated delivery time again. |
7. End Production-Mass production products photos will send to you for approval. You can also arrange the third party Inspection . |
8. Clients make payment for balance and Ship the goods , Inform the tracking number and check the status for clients. |
9. Order can be say “complete” when you receive the goods and satisfy with them . |
10. Feedback to our about Quality , Service, Market Feedback & Suggestion. And we can do better . |
1. Motor Specificatio
Standard and explosion proof motors (Siemens ,ABB etc) are available as standard.
2. Homogenizer Inlet and Outlet Connections
All sanitary screw or flange fittings available on request (e.g. ISS, D/N, RJT, SMS, Tri-clamp, etc.).
3. Sealing
Single mechanical shaft seals available as standard.
4. Cleaning
All homogenizers are designed for cleaning in place (CIP and SIP).
5.Cooling
Cooling jacket structure as standard, use tapping water could cool the homogenizer machine
6. Homogenizer working principle
