Help Center500L Stainless Steel Tank /Automatic Stainless Steel CIP System
Related Products
-
Pipe Cleaning Machine CIP Cleaning SystemNegotiableMOQ: 1 -
100L to 500L Small CIP Systems for Cleaning Beverage LinesNegotiableMOQ: 1
-
CIP Cleaning System for Filling Tanks WashingNegotiableMOQ: 1
-
CIP System for Cleaning Beverage TanksNegotiableMOQ: 1
-
Automatic Stainless Steel CIP Cleaning System EquipmentNegotiableMOQ: 1

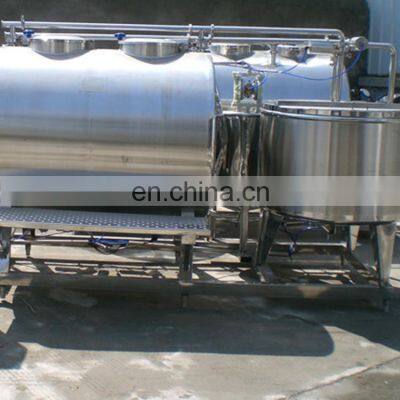

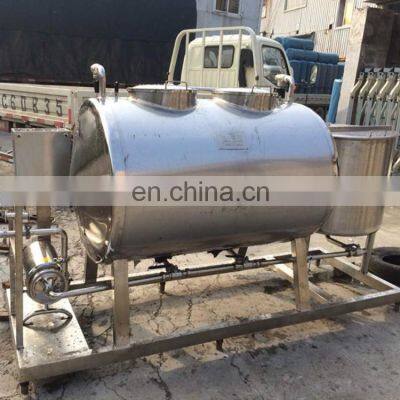

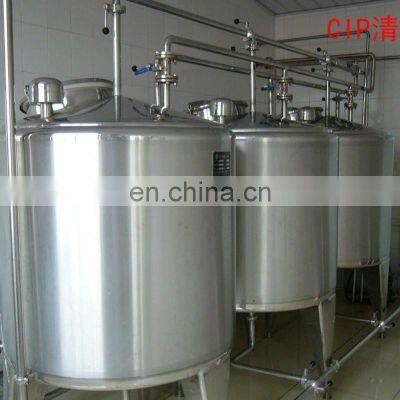

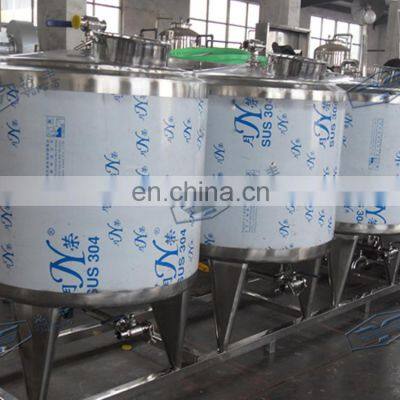

CIP cleaning system
|
CIP cleaning system is used to sterilize and clean the pipes, filling valves, filling tanks and other liquid filling parts which contact with the filling material. CIP cleaning system is applied to clean dairy, food, beverage, pharmaceutical production lines. |
|
CIP cleaning machine system unit is consisted by pure water tank, acid liquid tank, alkali liquid tank and other accessory parts. |
|
CIP Cleaning system1000L |
Acid tank1000L Circular pipe heating, Alkali tank 1000L circular pipe heating, water tank1000L |
|
Working Pressure |
Inside tank: Normal Pressure, Inside Steam Pipe: 0.3-0.7Mpa |
|
Working Temperature |
Inside acid tank, alkaline tank, water pipe, steam pipe: 60-138ºC |
|
Product Name |
2% Acid and Alkaline Liquid, 2% Nitric Acid, Caustic Soda Liquid, Steam. |
|
Centrifugal Pump Flux |
10T/h |
|
Max. Centrifugal Head |
35m |
|
Motor Power |
2.2KW, 3KW, 4.4KW according to different capacity of CIP cleaning machine |
|
Dimension(L*W*H) |
3000*1200*1900mm for 1000L CIP |
|
Weight |
880kg |
|
Other capacity CIP is available ,plz feel free to contact us sales at ; ph+86 138 183 63408 |
|
Packaging :
Bulk cargo: standard export plywood case which can avoid any clash during the sea or air transportation in case of causing damage to the equipment’s surface.
Container cargo: the equipment will be bound firmly and won’t easily swing to the side, or up, or down.
Service: Pre-sale service:
1. Free of technical guidance. And making offers, craft
2. We can provide company’s qualification certification and the drawings.
3. We can also make customized products according to customer’s needs.
After-sale service:
1. We provide long-term after-sale service.
2. Free training your technician to operate machines
3. Meanwhile, you can call or e-mail to consult any relevant questions since we have a special line of after-sale service. Or you can communicate online and solve the problems.
|
About US/Supplier Types |
1 .Trade Assurance,With Trade Assurance, you'll enjoy: •100% product quality protection •100% on-time shipment protection •100% payment protection for your covered amount 2. Gold Supplier 3. Assessed Supplier 4 . Onsite Checked 5 . A&VChecked 6. we accept Transactions via 7. Payment protection 8 . On-time shipment 9. Wholesale Low MOQS
|
CIP system features:
1, it can be operated by manual or by computer. Sterilizing and cleaning time can be controlled.
2, Cleaning liquid can be recycled and with low energy consumption.
3, Cleaning liquid is heated by steam.
4, Temperature of the cleaning liquid can be controlled in the setting range.
5, Whole unit is made by 304 stainless steel.
