Automatic PE LDPE LLDPE PVC PET High Speed Plastic Pulverizer Machine / Pulverizer Mill/ Plastic Pulverizer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Single Screw PP PE PVC ABS Pelletizer Mini Agglomerator Waste Plastic Film Recycling Granulator Pelletizing Machine Price
-
PE/PP/PVC/EVA Corrugated Plastic Pipe Extruder
-
HDPE PE PP PPR Plastic Pipe Extrusion Production Line Making Machine Production Line
-
PVC/ABS/PP/PS/PC Plastic Recycling Extruder Machine
-
Sj45 Nylon Tube Extrusion Line Nylon Pipe Making Machine
-
Mini Plastic Experimental Extruder Machine for PE/PA/TPU
Product Description
Specification
NO. | Accessories details | parameter |
1 | model | MF500 |
2 | Disc diameter | Ø500mm |
3 | speed | 2965 rpm |
4 | Number of knives | There are 12 fixed knives and 24 moving knives |
5 | Main motor power | AC 45KW energy consumption level 3 |
6 | Fan power | AC 4kw |
7 | Diameter of vibrating screen | Ø800mm |
8 | Vibrating screen motor power | AC 0.55kw |
9 | Motor power of cyclone butterfly valve | AC 0.75kw |
10 | Size of powder | 10-30 mesh |
11 | Contactor | Delixi |
12 | 304 tube cooling mode (two layers) | water-cooling |
13 | Feed size | 3-5mm |
14 | yield | About 180-250 kg |
15 | Voltage | 380V, 50Hz, 3-phase (customized) |

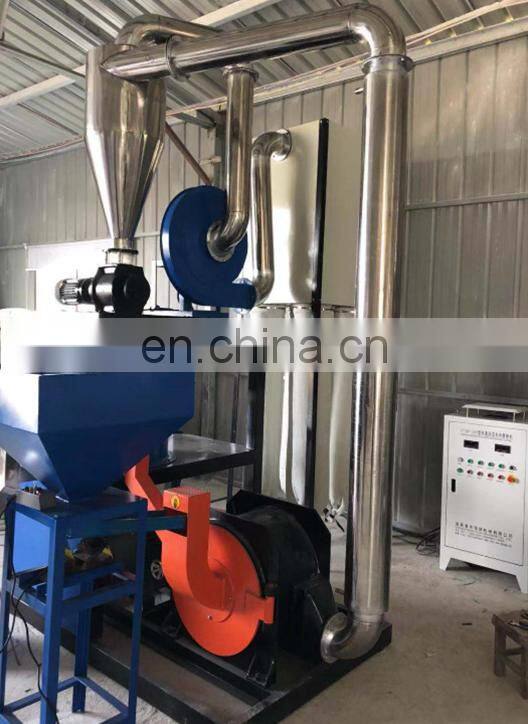

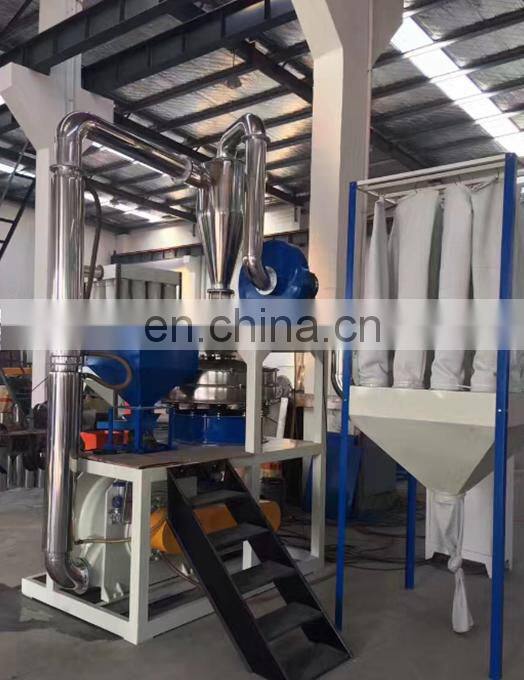

pulverizer main frame
include:
Grinding chamber, main motor and base
The final size of the finished product depends on the clearance between the moving knife and the fixed knife. At the same time, the grinding chamber and the fixed grinding head are cooled rapidly by water. The grinding plate is easy to disassemble and can be reused after sharpening.
The main shaft adopts the brand. The oil seal adopts the imported brand: in order to ensure the temperature of the shaft ≤ 85 ℃, there are cooling and lubrication systems at the place where the shaft contacts. The dynamic balance test of the spindle ensures the smooth operation of the whole machine. The grinding chamber and the main motor have a small one as a whole, which is convenient for installation.

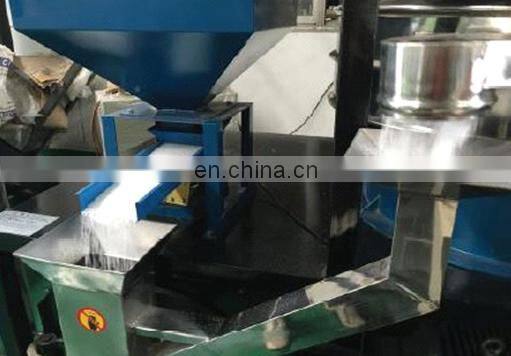

feeding system
Including: hopper and vibration device
The contact part is stainless steel and the rest is carbon steel.
The feeding speed is controlled by adjusting the valve at the outlet and the vibration frequency of the vibration feeding device.

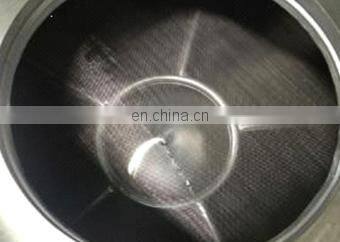

Circular vibrating screen
The screen is used to screen different sizes of powder, the appropriate powder is sent to the silo, and the large powder is returned to the grinding chamber for grinding again.
Material: the part contacting with the material is stainless steel, and the rest is carbon steel.
The filtered material is sent to the grinding chamber again for 30 mesh.
Material distribution system
Including: fan, air supply pipeline, cyclone separator and cyclone butterfly valve, the contact part with material is stainless steel, and the rest is carbon steel. The high-pressure fan sucks the powder from the grinding chamber to the cyclone separation device, and then the powder enters the circular vibrating screen.
a duster
The contact part is stainless steel and the rest is carbon steel.
The dust is collected from the cyclone separator into the integrator to ensure no pollution to the environment and no waste in operation.
Electric cabinet
Zhangjiagang Huiping Machinery Co., Ltd.
The company is located in Zhangjiagang City, Jiangsu Province, which is an important place of mechanical production. It mainly produces various plastic pipe and profile extrusion production equipment, such as PVC plastic pipe profile production line, PE pipe production line, PP-R pipe production line, 3D consumables production line, high-speed mixer, centralized feeding system, etc. Can accept a variety of non-standard customized products. We have been engaged in the field of plastic extrusion for 12 years, accumulated rich experience and cooperated with many famous domestic universities, such as Peking University, Beijing University of technology, Suzhou University, etc. We will create a bright future for Huiping with the enterprise concept of the new century
We have been engaged in the field of plastic extrusion for 12 years and accumulated rich experience. We can accept all kinds of non-standard customized products. Looking forward to working with you.
Our Advantages
Packing & Delivery
After sales
1、after checking, we offer 12 months as quality guarantee, free offer wearing parts and offer other parts at the lowest price. In quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
2、after quality guarantee, we offer technology support and after sales service. Offer wearing parts and other spare parts at favorable price; after quality guarantee, the technician of buyers should operate and maintain the equipments according to seller’s demand, debug some failures. If you could not solve the problems, we will guide you by phone; if the problems are still can not solve, we will arrange technician to your factory solving the problems. The cost of technician arrangement you could see the cost treatment method of technician.
FAQ
Q1. What material do you use?
A1.Such as PP、PPR、PVC、PE、ABS......
Q2. What diameter (mm) mould do you need（ Mold shape)?
A2. Round hole or square hole，What diameter or size?.
Q3.Other requirements of your equipment, such as port, power supply, output?
Our company will carry out customized production according to your needs.
