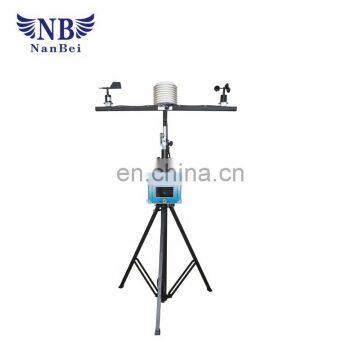

Outdoor Meteorological monitoring weather station
Product introduction

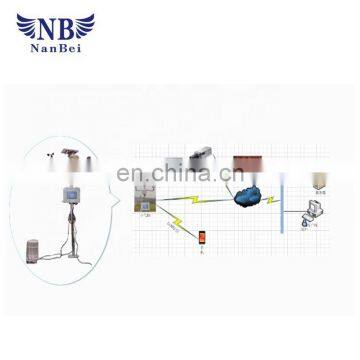

Wireless agricutural microlimate weather monitoring system is combined with datum collection terminal and various of environment sensors,Instrument can collect data and through GPRS/WIFI network transmission to the remote server or storage to collection terminal for customers to download,also can according to customers’ need to be real-time acquisition value according to the scene of LED screen.
Configurable sensors and accessories
1.Optional sensor:
Temperature/humidity sensor(including dew point and without),Rainfall sensor,C02 sensor,Soil temperature sensor,Soil moisture sensor,PH sensor,Soil salinity sensor
Features
1,7” colorful touch screen,Android system,English operation menu.
2,One-key switch,auto and manual collect data.
3,AC/DC power supply.
4,Max stock 120000groups data,can check data on host or output by U disk.
5,Probe is consistent,different sensors change free,no effection.
6,Data can be transfered through GPRS/WIFI to remote server.
7 , User can get message with real time monitoring through calling monitoring system number.
8,User can set system parameters and record parameters throught SMS commands.
9,LED display optional.
10,Solar energy.
Technical parameter
1,Record time:≤2s
2,Record capacity:120000groups
3,Record time interval :1min~99hours continuous adjustment
|
Temperature |
Range:-40℃~120℃ Accuracy:±0.4℃ Resolution:0.1℃ |
Rainfall |
Range :0~4mm/min Accuracy:±0.1mm Resolution:0.1mm |
| Humidity |
Range:0~100%RH Accuracy:±3%RH Resolution:1%RH |
C02 |
Range:0~2000ppm Accuracy : 40ppm+Record value
×3% Resolution:1ppm |
|
Dewpoint |
Range:0~100%RH Accuracy:±3%RH Resolution:1%RH |
Soil temperature |
Range:-40℃~100℃ Accuracy:±0.3℃ Resolution:0.1℃ |
|
Illumination |
Range:0~200000LUX Accuracy:±5LUX Resolution:1LUX |
Soil moisture |
Range:0~100% Accuracy:±0.2% Resolution:0.1% |
|
Radiation |
Range : 0 ~
2,700μmolm-2s-1 (400-700nm) Accuracy : ±1μmolm-2s-1 Resolution:1μmolm-2s-1 |
PH |
Range:pH:0~14 Accuracy:±0.1 |
|
Wind direction |
Range:0-359° Accuracy:±1° |
Soil salinity |
Range:0~100% Accuracy:±0.2% Resolution:0.1% |
|
Ammonia |
Range:0~10,50,100 200 , 1000 , 2000 ,
5000ppm optional Resolution : 0.01ppm (0~100ppm);0.1ppm (0~1000ppm);1ppm (≥1000ppm) Accuracy:≤±3% |
UV radiation |
Range:280 ~ 400nm (UV AB) 315~400nm(UV A) 280~315nm(UV B) |
|
Sunshine duration |
Measure range:0~24h Spectral range : 0.3 ~ 3μm Resolution:0.1h Respond time:<5s |
PM2.5 |
Range:0.3~1.0,1.0~ 2.5 , 2.5~10um Range : 0 ~ 500 ug/m3 |
|
Air pressure |
Range: 0~1100.0HPa Accuracy: 0.1Hpa |
Wind speed |
Range : 0-45m/s; Accuracy:±0.1m/s |
| Net radiation |
Spectral range : 3 ~ |
Total radiation |
Spectral range : 300 ~
3000nm Signal range : 0 ~ 2000W/m2
|
Certificate
After-Sale Service
Please feel free contact for more details .Thanks
