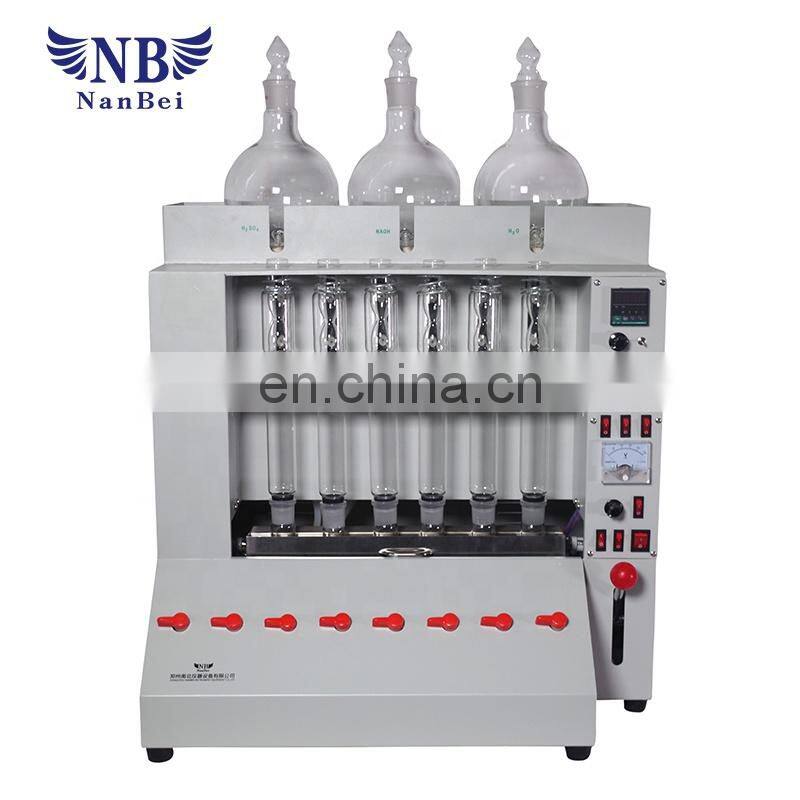

Lab grain,feed,food crude fiber fast test fiber analyzer
1.Feature and Description
CXC series Crude fiber analyzer is the machine which is based on Acid-based boiling method to digest sample,through weight difference to get crude fiber content.
Crude fiber analyzer use extract concentration acid and alkali,digestion under certain condition,remove the soluble matter with ethanol,After the high temperature burning after deducting the amount of minerals,the result called crude fiber content.It is not an exact chemical entity, but only in the recognized mandatory conditions measured under the rough ingredients, of which the main cellulose, there are a small amount of hemicellulose and lignin.

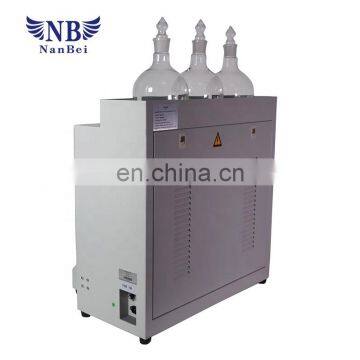

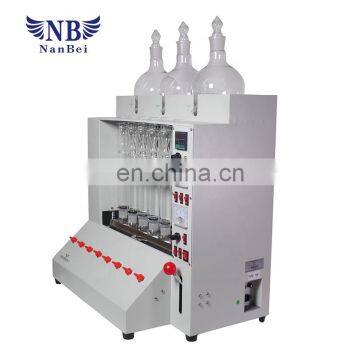

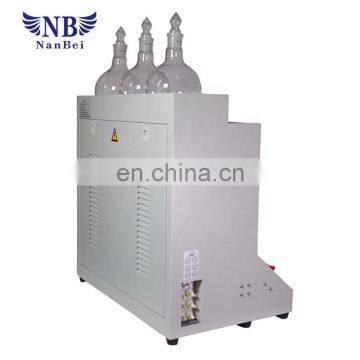

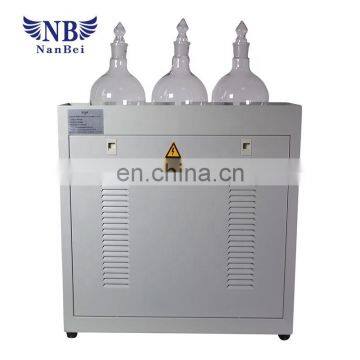

2.Picture for Our product
3.Usage and Application
Raw Fiber Analyzer tests raw fiber content according to acid and alkali boiling method.It adopts accurate concentration acid and alkali to boil samples in particular condition,then remove soluble substances by ether,deduct the amount of minerals by high temperature burning.
4.Technical data
Measuring object | Raw fiber content in various kinds of grain,food,feed and other agricultural andsideline products |
Measuring sample quantity | 6pcs / time |
Repeatability error | raw fiber level < 10%,absolute value error ≤0.4% raw fiber level >10%,absolute value error ≤ 4% |
Measuring time | about 100min(including acid 40min,alkali 40min,filter and wash 20min) |
Power | AC220V/50Hz,2800W |
Water supply | water pressure >1.5Mpa water temperature <20℃ |
Dimension | 670x450x670mm |
Weight | 30kg |
5.Packing and Shipping

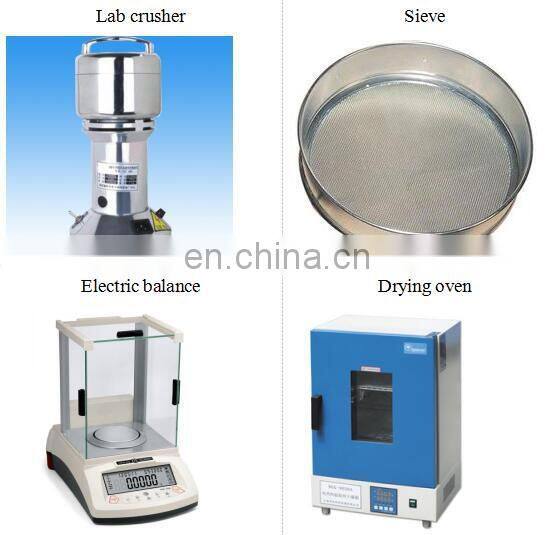

6.Related Product
1. How can I choose the suitable one? With your clear application or requirement,we can identify and give you correct suggestion and price. |
2. How can I pay? We accept many payment term, such as T/T, Western Union,L/C,Money Gram etc |
3. When I receive it after pay? Normal can be delivered with 5-7days, please contact us to check exact transport time if needed. |
4. How to deliver? We can send by Express, by Sea and by Air. |
5. Is will be broken during transport? It’s better you open the cargo when you receive,if broken,claim the express for compensation at first,they will compensate for the transporation broken.We will replace you new one later. |
6. What should I do if I do not know how to use? Don’t worry, User manual will be sent together, our techincal engineer also can supply phone,vedio guidance. If need,we will supply oversea service on site. |
7. What should I do if some parts broken? If broken not caused by human,we replace new part free. |
8.What is warranty ? We have 1 year warranty. |
1.Company Show
2.Factory Show
1.Certificaton
2.Warranty And After-sale Service
♥♥We Supply 1 Year Warranty , And Lifelong Free Technical Guiding And Training♥♥
1.Customer Response
| The machine works well,the quality is good,operation is great! |
| The machine is good,your service is great. We will reorder soon. |
