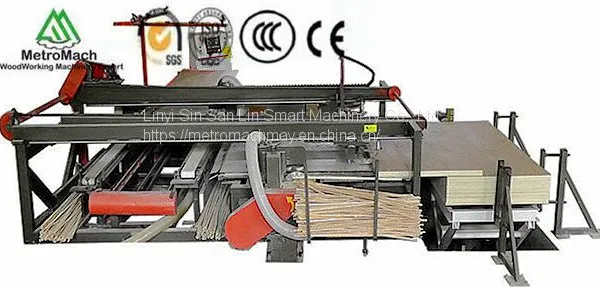

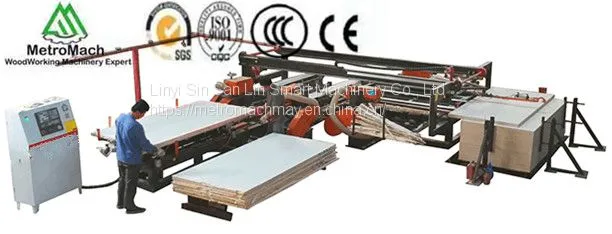

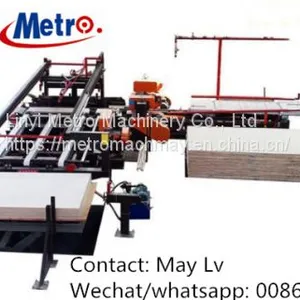

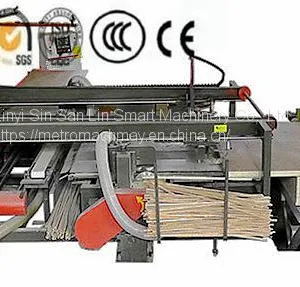

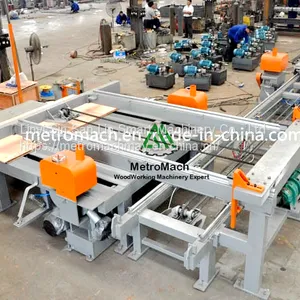

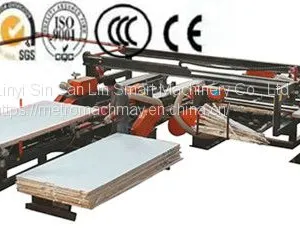

Automatic Woodworking Plywood Panel Adjustable Edge Trimming Cutting Saw
US$ 10000 - 20000
MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
METRO MACH
Place of Origin:
China
Model Number:
ABC1418
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
30 days
Related Products
-
Automatic WoodworkingAdjustable Plywood Panel Adjustable Edge Trimming Cutting SawUS$ 10000 - 20000MOQ: 1 Set -
Automatic Woodworking Plywood Roller Conveyor Edge Trimming Cutting SawUS$ 10000 - 20000MOQ: 1 Set
-
Automatic Woodworking Plywood Panel Adjustable Edge Trimming Cutting SawUS$ 10000 - 20000MOQ: 1 Set
-
Automatic Woodworking Plywood Panel Adjustable Edge Trimming Cutting SawUS$ 10000 - 20000MOQ: 1 Set
-
Automatic Roller Convery Woodworking Plywood Panel Edge Trimming Cutting SawUS$ 10000 - 20000MOQ: 1 Set
Brand Name
METRO MACH
Place of Origin
China
Model Number
ABC1418
Use
Woodworking
Certification
CE, ISO, FDA
After-sales Service Provided
Engineers available to service machinery overseas
Warranty
1 Year
Dimension(L*W*H)
4*8-3*6 Feet
Condition
New
Voltage
380/415v
Usage
Panel edge trimming cutting
Type
Table Panel Saw
Style
Horizontal
Woodworking Adjustable Plywood Panel Edge Trimming Cutting Saw
Product Features
1.Used servo control system, no sensor, proximity switch, with memory function (remember the position of the sawing board), avoiding the phenomenon that the sensor and the proximity switch fail to saw the broken board, and avoid the cumbersome damage of the sensor proximity switch. . Traction with servo motor, two-axis linkage, fast speed, large output, arbitrary setting of the program, two people operation, greatly reducing labor costs.
2. The size of the sawing edge is adjustable from 3*6 to 4*8, and the machine can solve the problem of sawing edges of different sizes.
3. It is made of pure iron base, stable operation and high precision. It adopts imported bearings, circulating lubricating oil and long service life.
4. It adopts 8 pieces saw shafts and runs at 8200 rpm. It has underline function, which fully solves the problems of bottoming, burrs, core pulling, etc. The sawing edge is smooth and does not need polish.
5. Infrared positioning, automatic arranging, load-type rail sawing, four-cylinder positioning, high straightness on the edge of the board, no angle adjustment.
6. Automatic lifting platform, automatic stacking. Install the lifting platform plate limiter to solve the problem of uneven packing of the plates.
7. It has the effect of dust removal, which is environmentally friendly and clean.
8. It is used for particle board, MDF, plywood, blockboard, multi-layer board, fire board, melamine board, building formwork, plastic steel film board, bamboo board, fire-retardant board, packaging board and so on.
CONTACT:
1.Used servo control system, no sensor, proximity switch, with memory function (remember the position of the sawing board), avoiding the phenomenon that the sensor and the proximity switch fail to saw the broken board, and avoid the cumbersome damage of the sensor proximity switch. . Traction with servo motor, two-axis linkage, fast speed, large output, arbitrary setting of the program, two people operation, greatly reducing labor costs.
2. The size of the sawing edge is adjustable from 3*6 to 4*8, and the machine can solve the problem of sawing edges of different sizes.
3. It is made of pure iron base, stable operation and high precision. It adopts imported bearings, circulating lubricating oil and long service life.
4. It adopts 8 pieces saw shafts and runs at 8200 rpm. It has underline function, which fully solves the problems of bottoming, burrs, core pulling, etc. The sawing edge is smooth and does not need polish.
5. Infrared positioning, automatic arranging, load-type rail sawing, four-cylinder positioning, high straightness on the edge of the board, no angle adjustment.
6. Automatic lifting platform, automatic stacking. Install the lifting platform plate limiter to solve the problem of uneven packing of the plates.
7. It has the effect of dust removal, which is environmentally friendly and clean.
8. It is used for particle board, MDF, plywood, blockboard, multi-layer board, fire board, melamine board, building formwork, plastic steel film board, bamboo board, fire-retardant board, packaging board and so on.
| Control |
PLC/Servo |
| working thickness（mm） | 3-60 |
| working size（mm） | 915-1220 1830-2440 |
| speed (m/min) | 0-30 |
| power（KW） | 40 |
| cutting power（KW） | 7.5 |

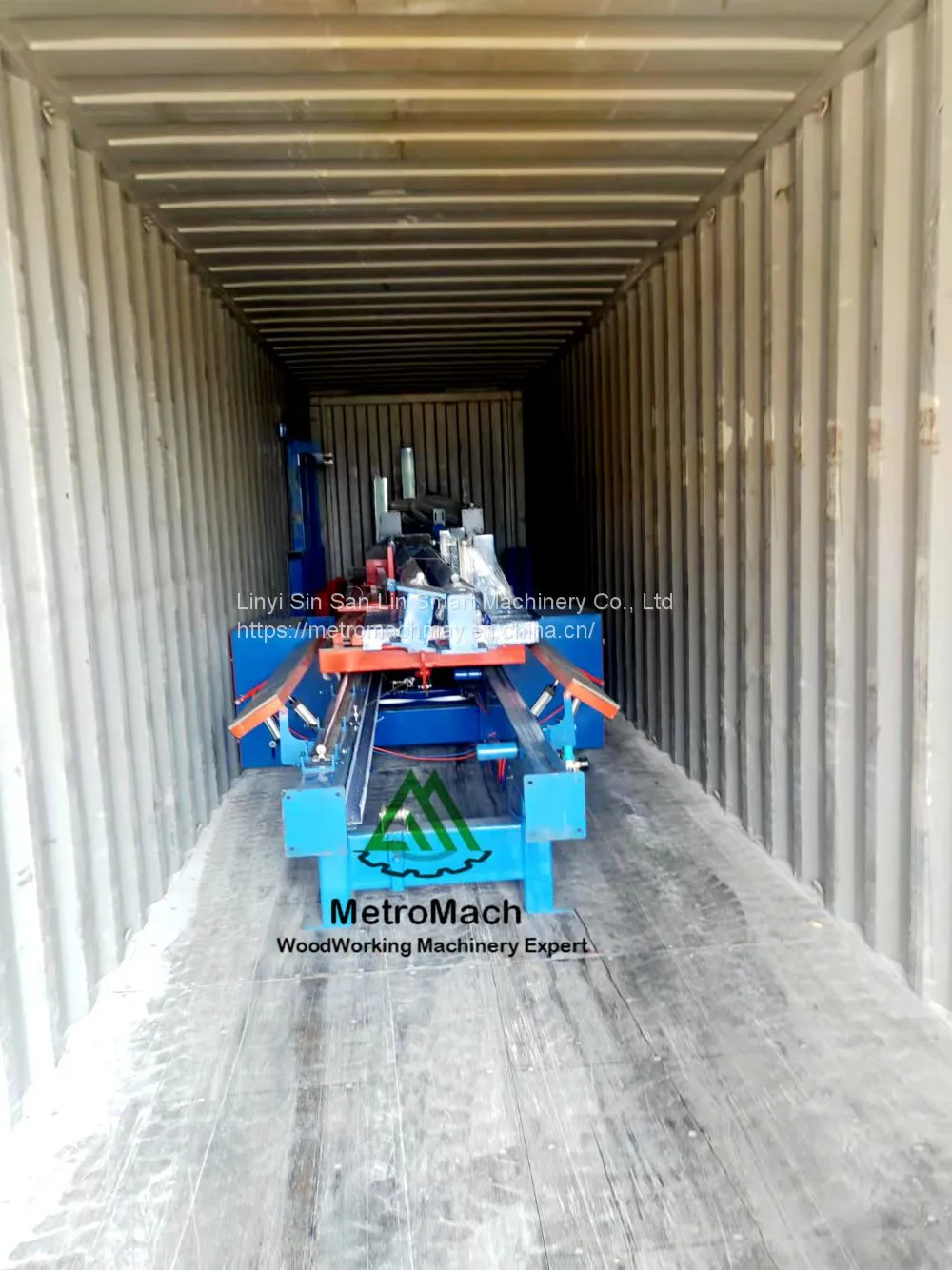

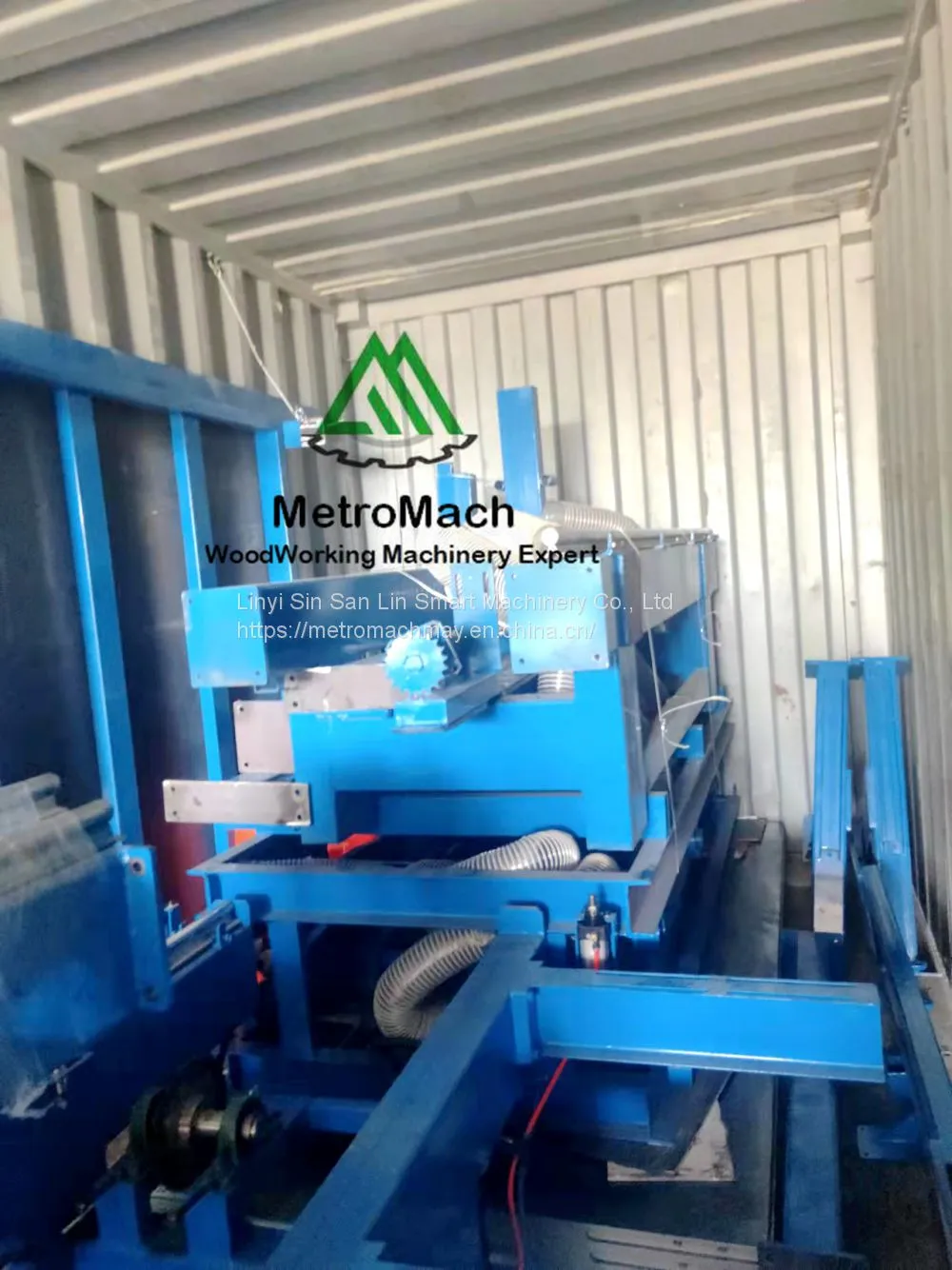

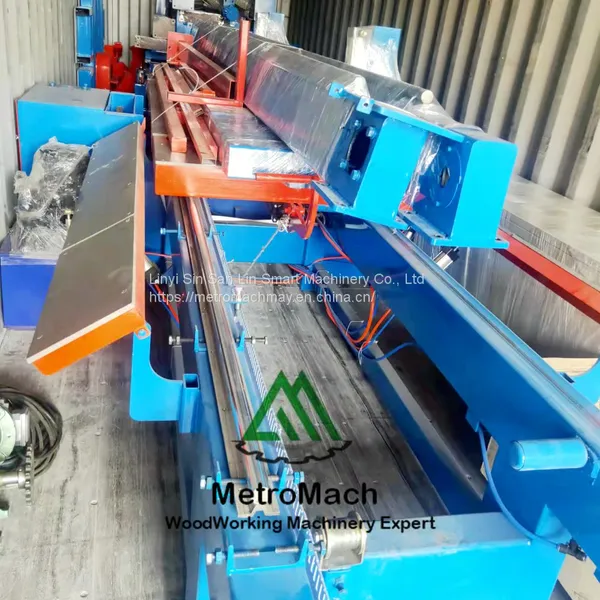

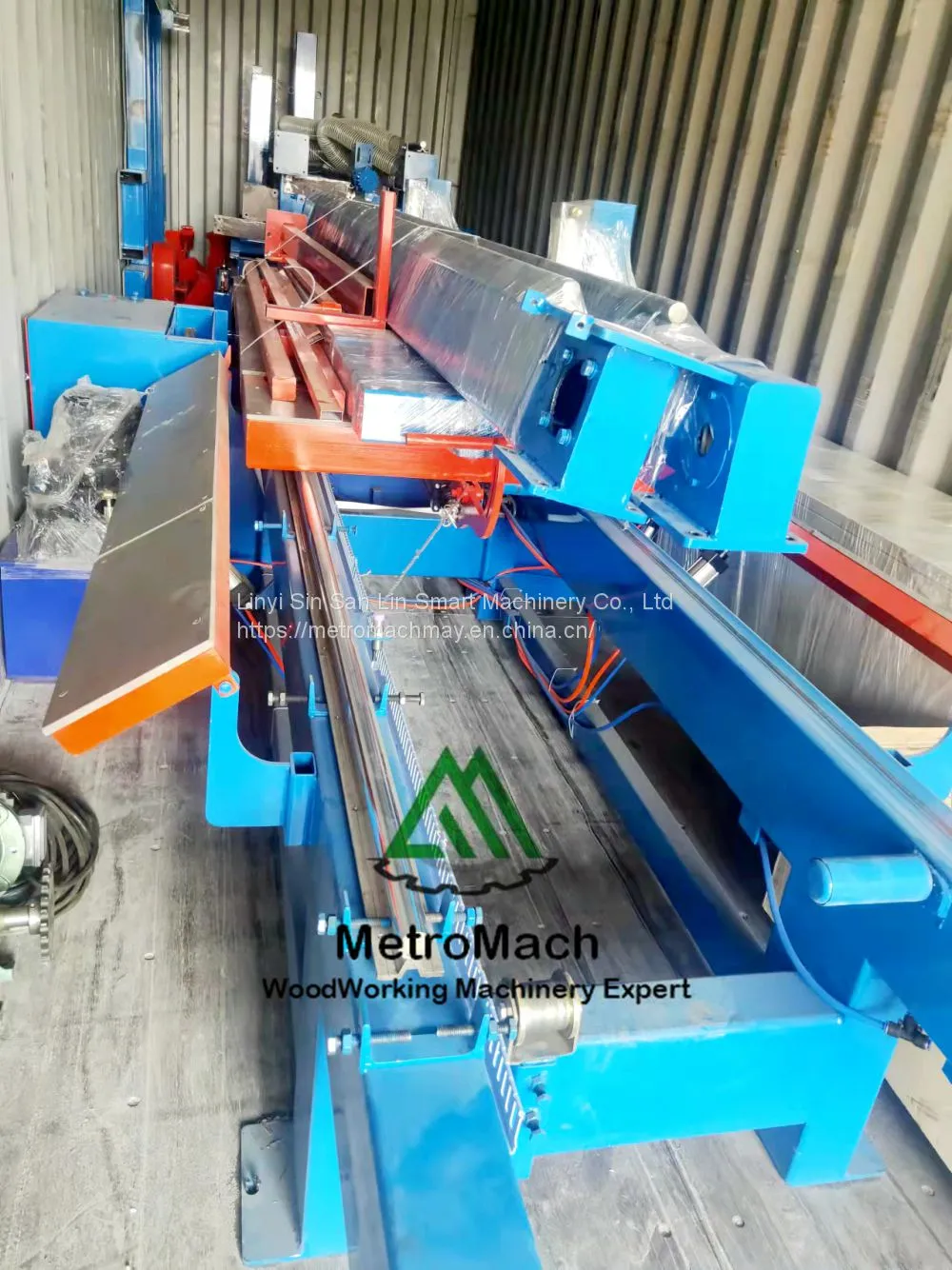

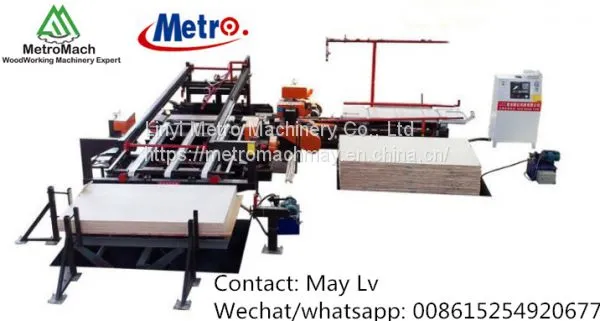

MORE PICTURES
CONTACT:
May Lv
Email: maylv@metromach.com
Whatsapp: +8615054649650
Welcome to contact:
Whatsapp: +8615054649650
Wechat: +8615254920677
Email: maylv@metromach.com
Send Inquiry to This Supplier
Business Type
Manufacturer
Year Established
1989
Overseas Office
Yes
Annual Export Value
US$50 Million - US$100 Million
