Asphalt Wheel Tracking Test

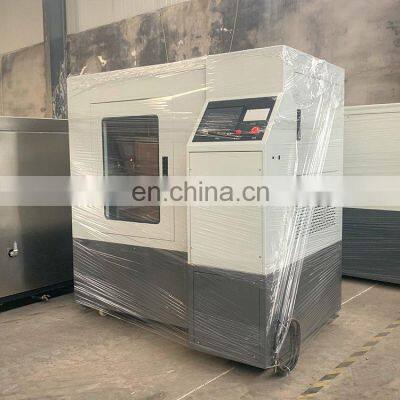

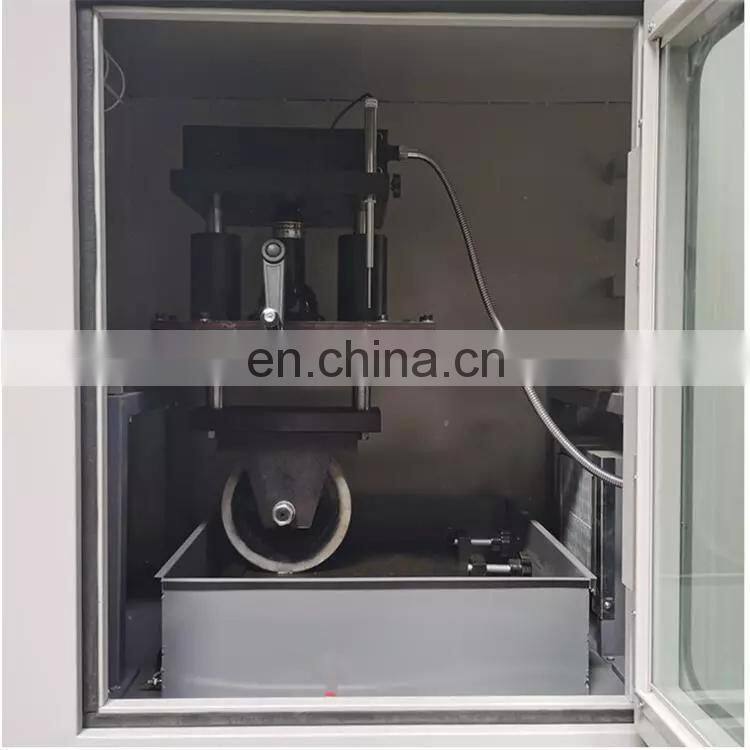

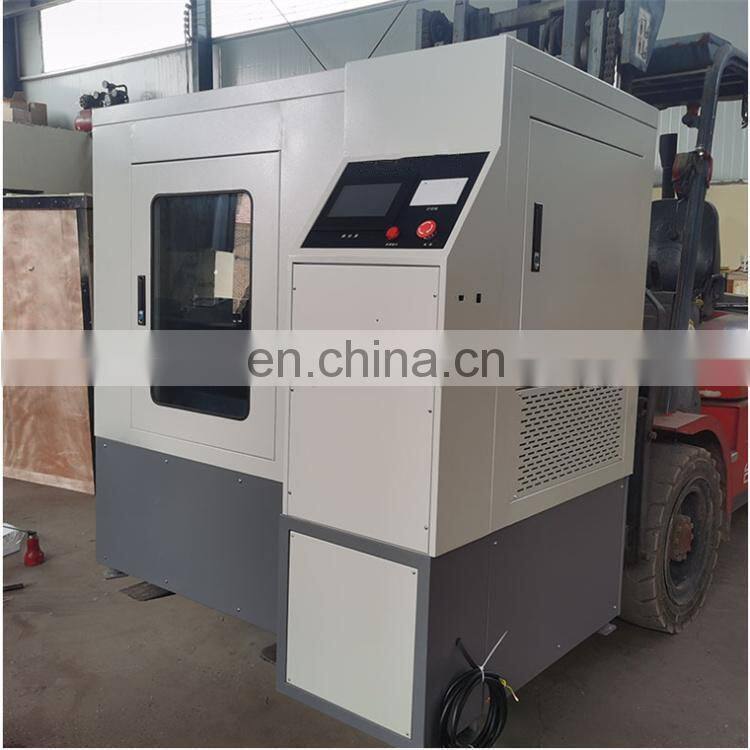

Lab Asphalt Bitumen Wheel Tacking Testing Machine/ Wheel Track Tester used to measure wheel tracking resistance ability of asphalt mixture against high temperature and supplemental tests of asphalt mixture design.

Feature :

Adopt automatic temperature control system with air circulation, and a constant temperature water tank inside, which can be used for water immersion rutting test. The cabinet heating adopts a constant temperature PTC heating unit, which is safer and more reliable. The temperature of the heated airflow. Highly limited, the flow rate is increased, the internal temperature uniformity of the box is increased

This machine has automatic temperature control, automatic timing, real-time display of the displacement of the rut, and automatically records the displacement curve and prints reports.

Simultaneously display the time and displacement, time and temperature change curves during the test, which provides a practical basis for scientific research units studying the rutting characteristics of asphalt mixtures.

Adopt absolute temperature sensor to collect temperature, and there is no temperature drift in long-term test (eliminate the influence of temperature drift of general thermoelectric corner temperature sensor on test data for a long time).

Temperature control adopts PWM modulation control, high temperature stability, to ensure no overshoot.

Adopt high-precision A/D (16-bit) and D/A (16-bit) modules to ensure the accuracy and resolution of displacement measurement and temperature control.

Sample Size: 300mm*300mm*30-100mm(300*400*30-100mm can be customized)

Test wheel moving distance: 230mm±10mm

Displacement Measure range: 0 ~ 50 mm.

Displacement measurement accuracy: 0.01mm

Resolution of displacement measurement: 0.005 mm

Temperature control range: room temperature ~ 80 ℃.

Temperature Resolution:0.1℃

Accuracy of temperature measurement: Initial accuracy (±0.5℃) after fixed point correction.

Temperature Control Accuracy (Relative to Temperature Measurement Points)

Temperature of the box: 45 minutes later, ±0.5℃, 60 minutes later, ±0.3℃

Flume temperature: 30 minutes later, ±0.5℃, 60 minutes later, ±0.3℃

Temperature difference in different positions of the box: 60 minutes later, the maximum temperature difference is 0.5℃

Round-trip speed of wheel milling: 21 roundtrips/min

Surface Hardness of Wheel Mill: 78 + 2 (60℃)

Wheel rolling load: 0.7MPa + 0.05MPa (factory adjustment)

Additional Load: 0.7 MPa (Heavy Load Test)

Power:3.5KW 380V50Hz
