Product Description

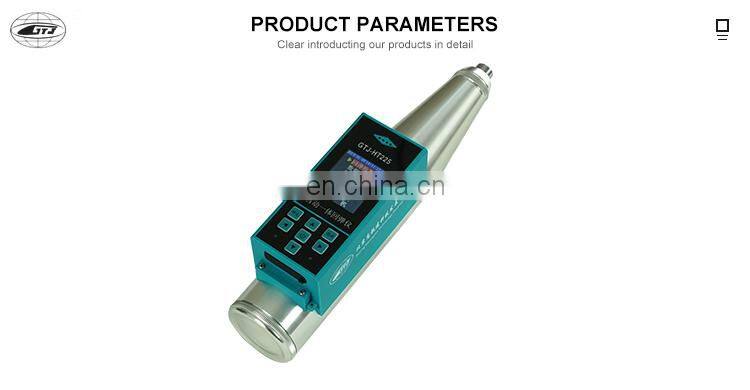

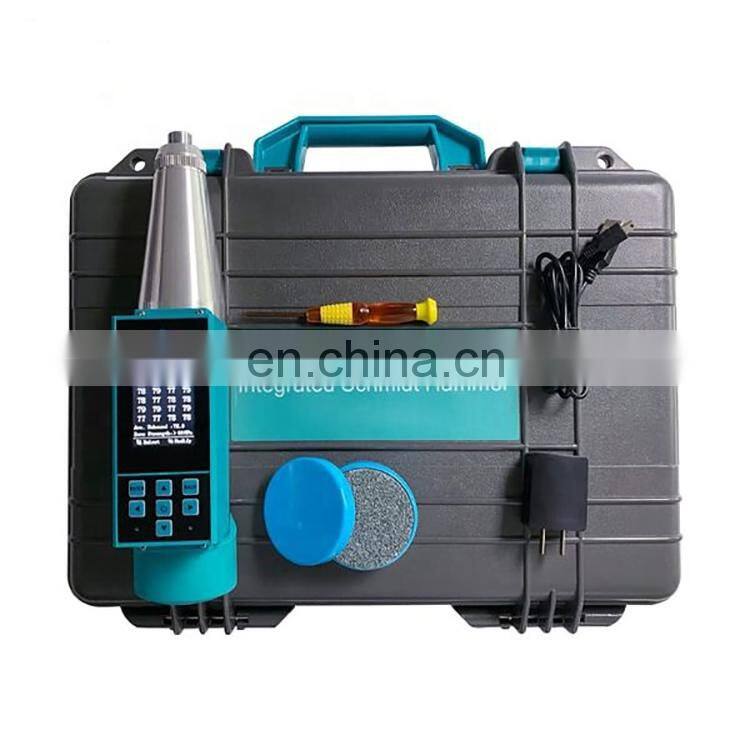

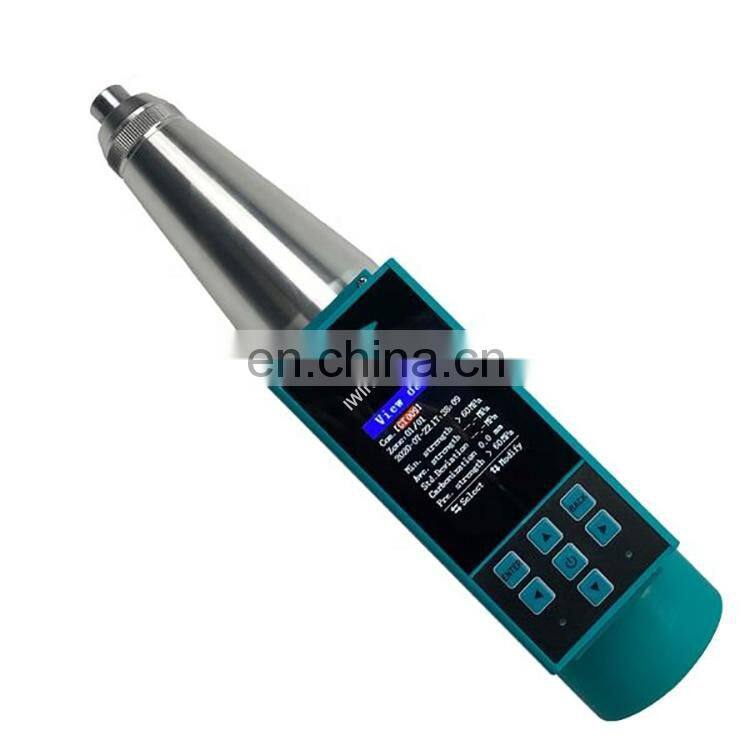

Test Digital Concrete Schmidt Hammer
HT225 fully automatic integrated resilience tester is used for non-damage detection and assessment of compressive strength of hardened concrete in building structures.It can detect and record the parameters such as rebound value, carbonization depth value, Angle and test surface.The strength estimation results of the component can be given immediately after testing.
| mos image sensor | ||
|
Automatically record the rebound value |
||
|
Automatic data correction, calculation and statistical analysis according to the specification |
||
| LCD | ||
|
Two hundred thousand observation points |
||
| Rechargeable large capacity lithium battery | ||
|
123mm×55mm×25mm |
||
|
200g |
||
|
-10℃~45℃ |
||
|
Mechanical resilience |
Scope of strength |
10-60Mpa |
|
The kinetic energy of the nominal |
2.207J |
|
|
Spring stiffness |
7.84N/cm |
|
|
Impact hammer stroke |
||
|
Consistency error |
≤±0.5(The difference between the reading of the pointer of the mechanical resilience meter and the reading of the instrument screen) |
|
|
Steel anvil rate set rebound value |
80±2 |
|
|
55×55×270 |
||
|
|
1.0kg |
|
|
-10℃~40℃ |
||
|
Material: engineering plastic svolume:420*140*335mm weight:6kg HT225 fully automatic integrated resilience tester is used for non-damage detection and assessment of compressive strength of hardened concrete in building structures.It can detect and record the parameters such as rebound value, carbonization depth value, Angle and test surface.The strength estimation results of the component can be given immediately after testing. |
||
Iwintesting equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments. The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scienitic research institute.
To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it. Our company always abides by the business philosophy of“customer first, quality firrst”.Do a good customer service,All products of the company implement the "three guarantees policy"

Q:What equipments do you supply?
A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other lab equipments.
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
