Factory Direct Ultraviolet Irradiation Black Light Lamp for Non-destructive Testing
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Hand-held High-power Ultra-long Standby Black Light Lamp for Non-destructive Testing
-
Digital Crack Meter Measuring Tool Kit Crack Width Gauge
-
Rapid Chloride Penetration Test Meter for Concrete RCPT
-
Handheld NDT Magnaflux Black Light Ultraviolet Inspection Light
-
Blacklight Inspection Light UV NDT Light Inspection Equipment
-
Soil Compaction Ground Density Testing Equipment
Product Description
Our Advantages

Product Description



Features:
Power energy - energy saving of only 9VA
The average service life of the light source – 30000h
The content of UV-B is 0
5-6hours of battery life.
External without wiring
Quartz and optical glass module, non PMMA material, excellent weather resistance.
Continuous working outside surface temperature<5K(5℃)
The average service life of the light source – 30000h
The content of UV-B is 0
5-6hours of battery life.
External without wiring
Quartz and optical glass module, non PMMA material, excellent weather resistance.
Continuous working outside surface temperature<5K(5℃)

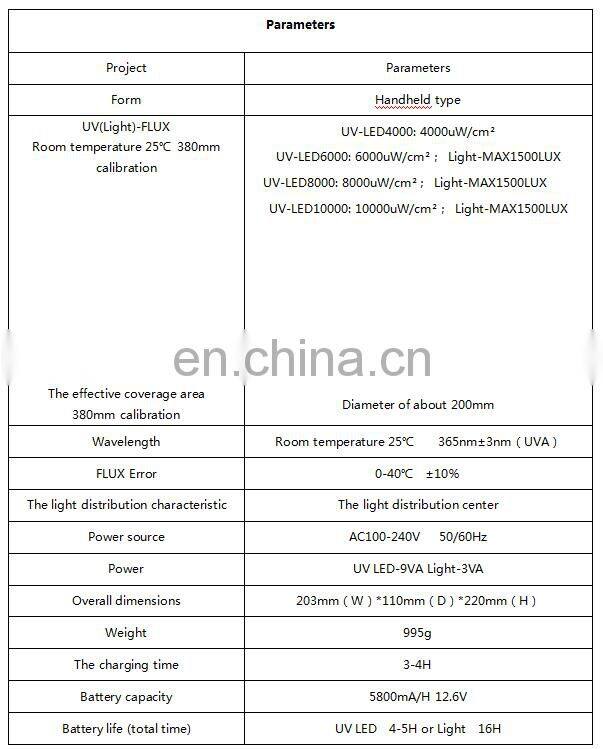

Specification:
Form:Handheld type
UV(Light)-FLUX Room temperature 25℃ 380mm calibration
UV-LED8000: 8000uW/cm²; Light-MAX1500LUX
UV-LED10000: 10000uW/cm²;Light-MAX1500LUX
The effective coverage area 380mm calibration: Diameter of about 200mm
Wavelength: Room temperature 25℃ 365nm±3nm(UVA)
FLUX Error: 0-40℃ ±10%
The light distribution characteristic: the light distribution center
Power source: AC100-240V 50/60Hz
Power: UV LED-9VA Light-3VA

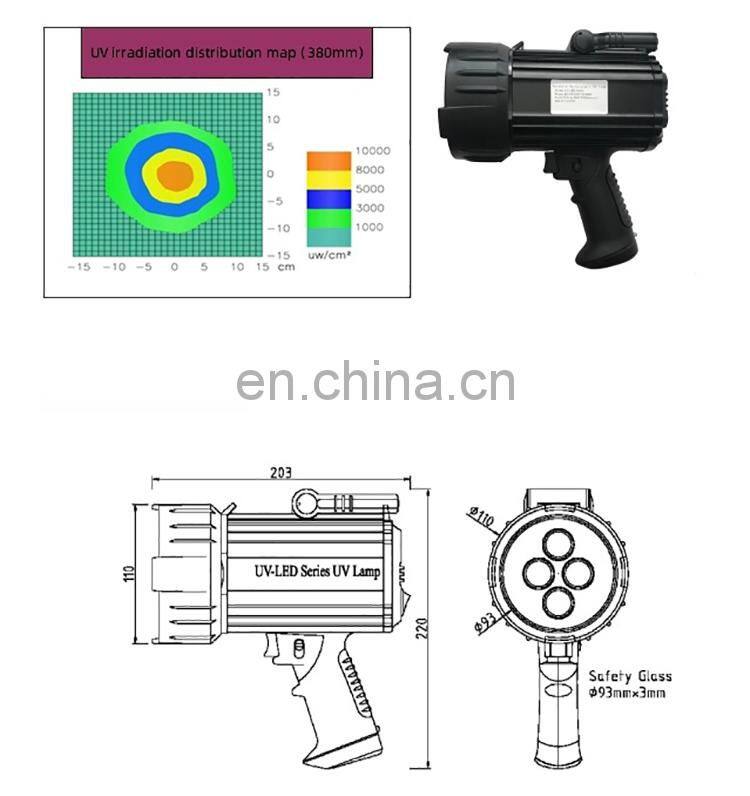

Overall dimensions: 203mm(W)*110mm(D)*220mm(H)
Weight: 995g
The charging time: 3-4H
Battery capacity: 5800mA/H 12.6V
Battery life (total time): UV LED 4-5H or Light 16H
UV(Light)-FLUX Room temperature 25℃ 380mm calibration
UV-LED8000: 8000uW/cm²; Light-MAX1500LUX
UV-LED10000: 10000uW/cm²;Light-MAX1500LUX
The effective coverage area 380mm calibration: Diameter of about 200mm
Wavelength: Room temperature 25℃ 365nm±3nm(UVA)
FLUX Error: 0-40℃ ±10%
The light distribution characteristic: the light distribution center
Power source: AC100-240V 50/60Hz
Power: UV LED-9VA Light-3VA
Overall dimensions: 203mm(W)*110mm(D)*220mm(H)
Weight: 995g
The charging time: 3-4H
Battery capacity: 5800mA/H 12.6V
Battery life (total time): UV LED 4-5H or Light 16H


Specification
item | value |
Warranty | 1 Year |
Customized support | OEM |
Place of Origin | Hebei, China |
Brand Name | iwin |
Model Number | SC100 |
Power | Electronic |
Application | Industrial, Factory |
LED | 4 pieces |
Form | Handheld type |
Wavelength | Room temperature 25℃ |
FLUX Error | 0-40℃ ±10% |
The charging time | 3-4 hours |
Switch Mode | Manual Button |
Materia | Aluminum |
Size | 203mm*110mm*220mm |
Keyword | uv inspection light |
Transaction process


Why Choose Us


Product packaging

Our logistics

FAQ
Q:What equipments do you supply?
A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other
building lab equipments.
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead
times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even
it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and
help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and
timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training,
each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of
equipment to customer s company when you need. products are widely recognized and trusted by users.
A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other
building lab equipments.
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead
times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even
it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and
help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and
timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training,
each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of
equipment to customer s company when you need. products are widely recognized and trusted by users.
