Desktop Hardness Tester Micro Rockwell Hardness Tester
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Specific Gravity & Absorption of Fine Aggregate Set
-
Tiandi Glass Picnometer Pycnometer Specific Gravity Bottle
-
Universal Hardness Tester Touch Screen Digital Display Brinell Rockwell Vickers Hardness Tester Price
-
Pycnometer Specific Gravity With Thermometer
-
25 ml Glass Pycnometer For Density Measurement
-
25ml Pycnometer Density Specific Gravity Price
Product Description
Our Advantages
Product Description

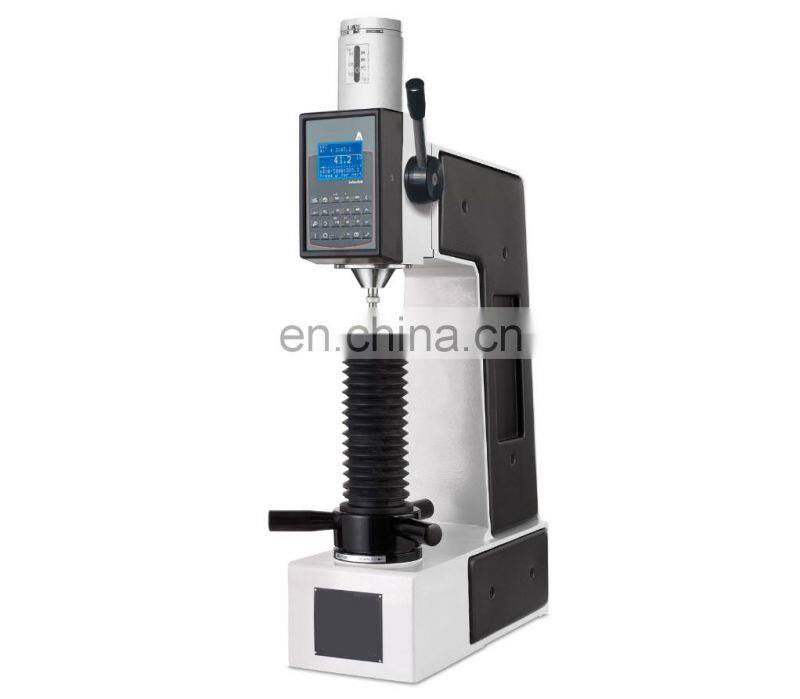

Rockwell Hardness Tester：
Semi-automatic hardness testers for Rockwell, Superficial Rockwell, Brinell and Vickers hardness test methods in compliance with ASTM and ISO standards. Iwin Series are bench hardness testers for tough or lab applications. Rockwell and Brinell HBTW hardness values with absolute accuracy (better than 0.5 %) in every condition, accurate measurements even on the first test will eliminate the need for repeated tests. Load forces are applied through a dynamometric load cell which eliminates problems associated with dead weight systems on traditional testers. Digital durometers with LCD screen, user friendly interface, real time statistics, graphs and large archive storage. Hardness testing on all metals: iron, steel, tempered steel, cast iron, brass, aluminum, copper and metal alloys. Heat treatment, hardening, nitriding, cementation and hardfacing.

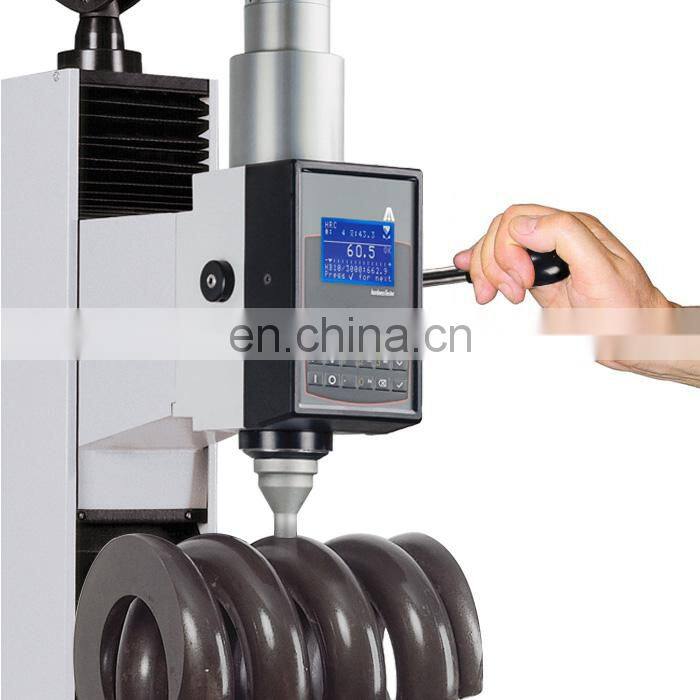

MANUAL DRIVE & AUTOMATIC CYCLE
Just pull the START lever and the hardness tester's head moves down to make contact with the sample's surface, locking it. The hardness test cycle will automatically begin in automatic succession without breaching a phase. Within seconds results appear.
CLOSED LOOP TECHNOLOGY
(PAT. AFFRI)
Load forces are generated by a dynamometric load cell which assures long term accuracy and eliminates problems associated with dead weight systems on traditional testers. Results are not affected by any structural deflection, misalignment or vibration.
REPEATABILITY & REPRODUCIBILITY
Accurate measurements on the first test, even in extreme conditions, will eliminate the need for repeated tests. The R&R data is at the top of its class.

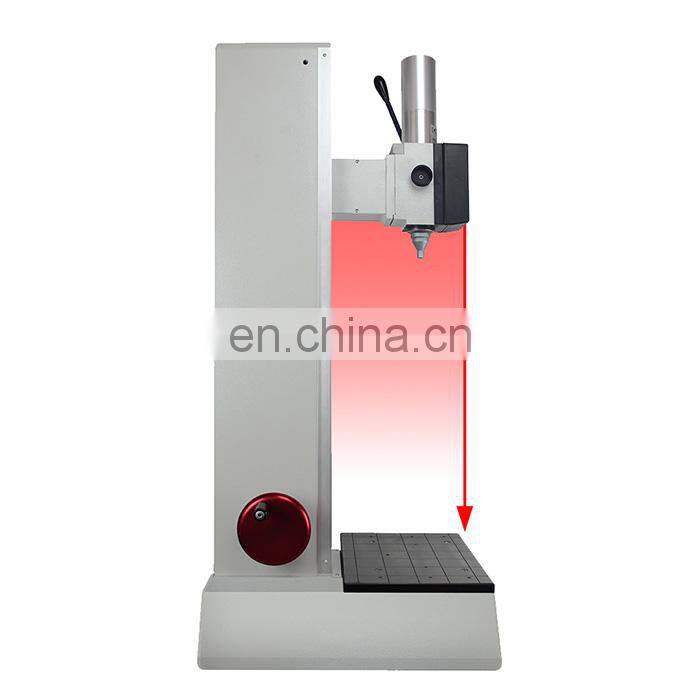

INDENTER STROKE
When testing unstable samples or deflecting parts, the AFFRI System will follow the sample without losing contact thanks to its 50mm stroke for indenter and clamping hood. Easy and fast hardness measurements on pieces with different thicknesses without acting
on tester head or elevating screw.
on tester head or elevating screw.

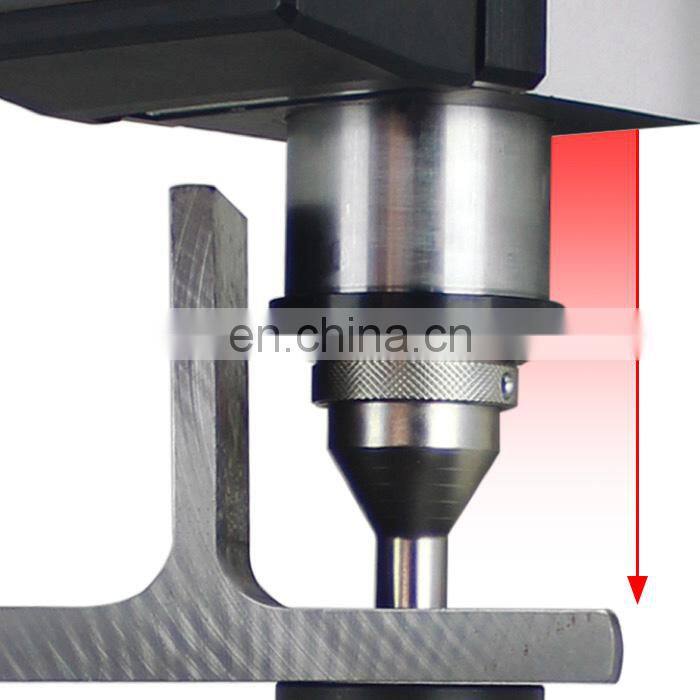

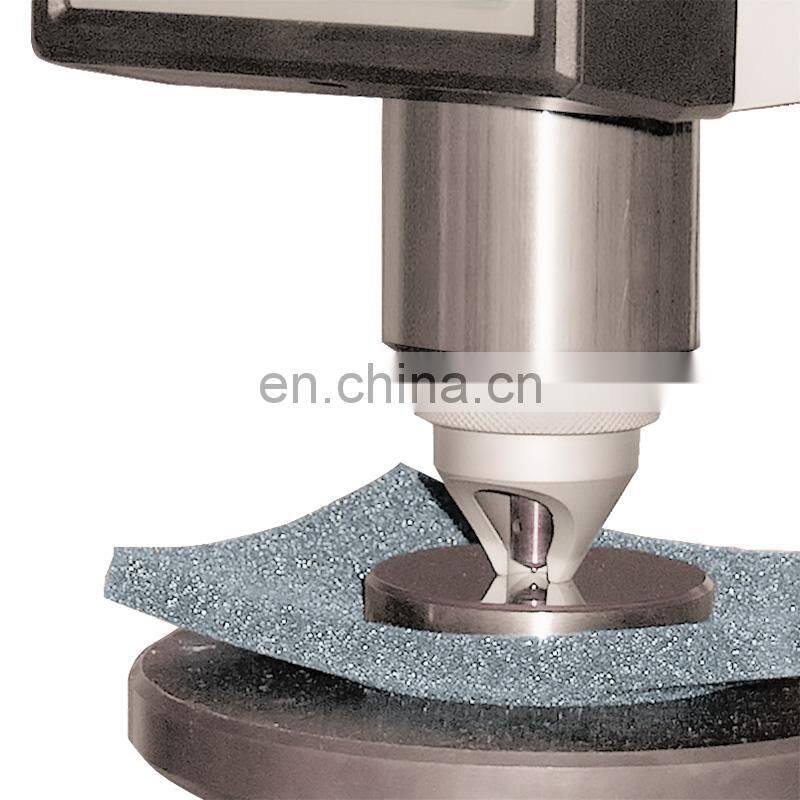

CLAMPING SYSTEM (PAT. AFFRI)
Secure contact with the specimen is always maintained, even in the unlikely event of any specimen movement during the operation cycle. The clamping system assures perfect stability of any test piece throughout the test cycle, even if it's oiled, rusty or dirty.

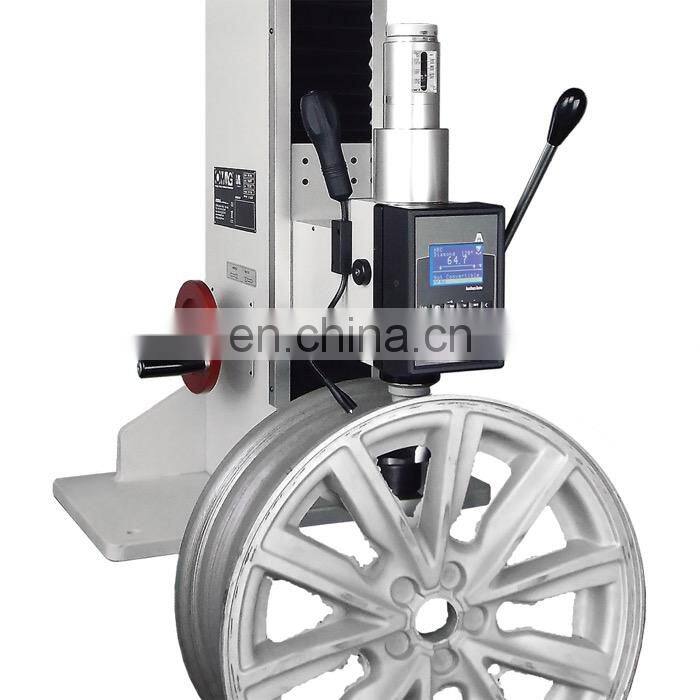

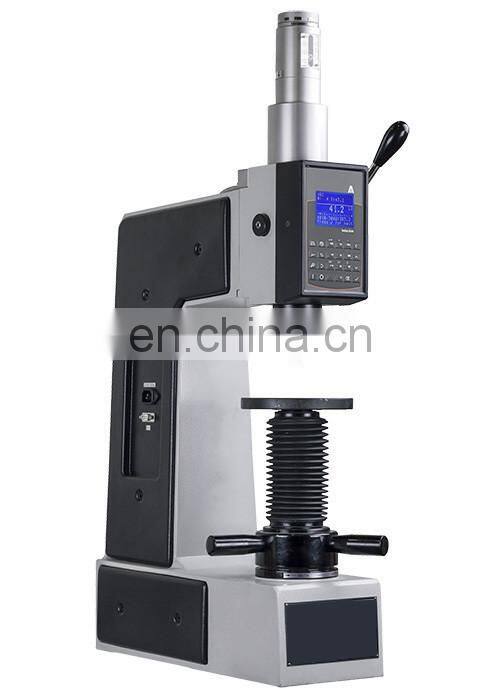

MOVING TESTER'S HEAD

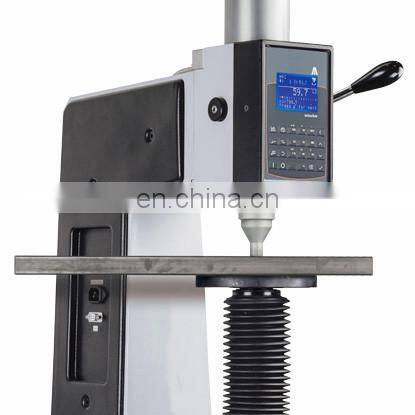

Total of 700 mm of vertical stroke. The moving tester's head permits easy measurements on large pieces, reaching points at the top of the sample that would be difficult to be measured with common testers.

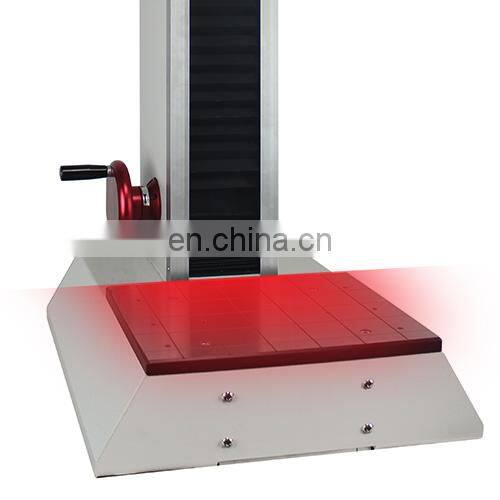

LARGE BASE
The 330 RSD’s wide work table base is capable of bearing masses beyond 1000 kg which allows for steady hardness measurements on bulky or irregular pieces It also offers a comfortable working base for small pieces.
OPTIONAL TABLE FOR RING SHAPE SAMPLES
Optional interchangeable base for hardness testing on external ring shape tubes, cylindrical surfaces and various samples diameter.
Specification
item | value |
Warranty | 1 year |
Customized support | OEM, ODM |
Place of Origin | Hebei, China |
Brand Name | Iwin |
Power | Electronic |
Type | hardness tester |
Customized support | OEM, ODM |
Hardness Scale | HRA HRB HRC |
Measuring range | 20-70HRC / 20-95HRA / 10-100HRB |
Test force | 60kgf(588N) 100kgf(980N) 150kgf(1471N) |
Display | Digital Display LCD |
Accuracy | 0.5% |
Conversion Scale | Generic - ASTM - ISO |
Application | Metals (all) |
Brand | Iwin |

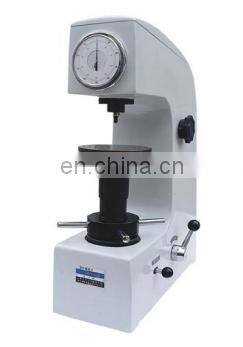

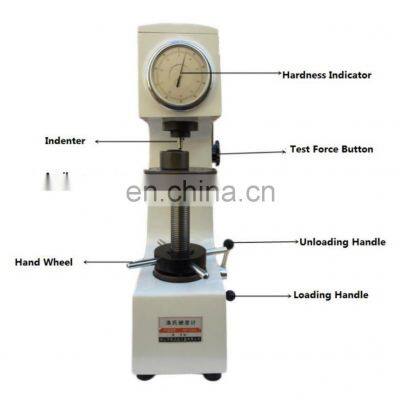

Another Model ROCKWELL HARDNESS TESTER
Application:
It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal
materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials,
such as quenching, hardening and tempering, etc.;measurement for curved surface is steady and
reliable.
It's suitable to determine the Rockwell hardness of ferrous, non-ferrous metals and non-metal
materials. It can be widely applied in the Rockwell hardness testing for heat treatment materials,
such as quenching, hardening and tempering, etc.;measurement for curved surface is steady and
reliable.
Measuring range: 20-88HRA, 20-100HRB,
20-70HRC
Test force: 588.4, 980.7, 1471N (60, 100,
150kgf)
Initial test force:98.7N (10kgf)
Max. height of test piece: 170mm
Depth of throat: 135mm

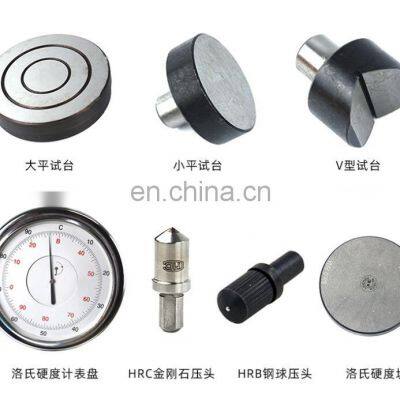

Type of indenter:Diamond cone indenter,
φ1.588mm ball indenter
Min. scale value: 0.5HR

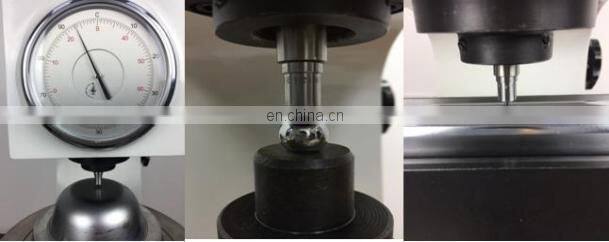

Hardness Reading: Dial Gauge
Dimensions: 466 x 238 x 630mm
Weight: 67/78Kg
