Factory supply P5 precision replace THK RU85 RU85UUC0P5 RU85UUCC0P5 cross roller bearing
Negotiable
1 (Min.Order)
- 1000 per Month
- T/T Credit Card
You May Like
-
Top quality replace THK P5 precision RU124X RU124G Turntable Slewing Bearing
-
Replace THK RU228X RU228G RU228UUCC0P5 Crossed cylindrical roller bearing rotary table bearings
-
P5 Precision slewing bearing RU297UUCC0P5 robot bearing RU297 rotary table bearings
-
25mm LIN-01RF-25 round flange Linear bearing replace IGUS FJUM-01-25 plastic slide bushing
-
Square flange LIN-01RT-40 replace IGUS FJUM-02-40 self-lubricating plastic linear bearing
-
8mm LIN-00-08 plastic Linear bearing LM8UU replace IGUS RJMP-01-08 linear motion slide bearing
Product Description
Factory supply P5 precision replace THK RU85 RU85UUC0P5 RU85UUCC0P5 cross roller bearing
Product Description
Crossed Roller Bearing is mainly consisted of an outer ring, an inner ring, a plurality of rollers and a plurality of spacers. The
roller lies between the inner ring and the outer ring. The spacer is placed between rollers to prevent the mutual friction between
rollers so as to decrease the torque resistance for rotation. In addition, the surface of the roller and the rolling track is
linear contact. So, when the bearing is loaded, the loading area will be very large. Thus, the elastic deformation will be less,
and the bearing will achieve a long service life. Each roller in Crossed Roller Bearing is crossed at 90° angle, which is able to
bear the loading force from axial, radial and the other direction at the same time.
This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need
high rigidity, high speed close and still ensure accurate the occasion.
roller lies between the inner ring and the outer ring. The spacer is placed between rollers to prevent the mutual friction between
rollers so as to decrease the torque resistance for rotation. In addition, the surface of the roller and the rolling track is
linear contact. So, when the bearing is loaded, the loading area will be very large. Thus, the elastic deformation will be less,
and the bearing will achieve a long service life. Each roller in Crossed Roller Bearing is crossed at 90° angle, which is able to
bear the loading force from axial, radial and the other direction at the same time.
This type of bearings are widely used in industrial automation, such as robots, machine tools and medical facilities, and need
high rigidity, high speed close and still ensure accurate the occasion.

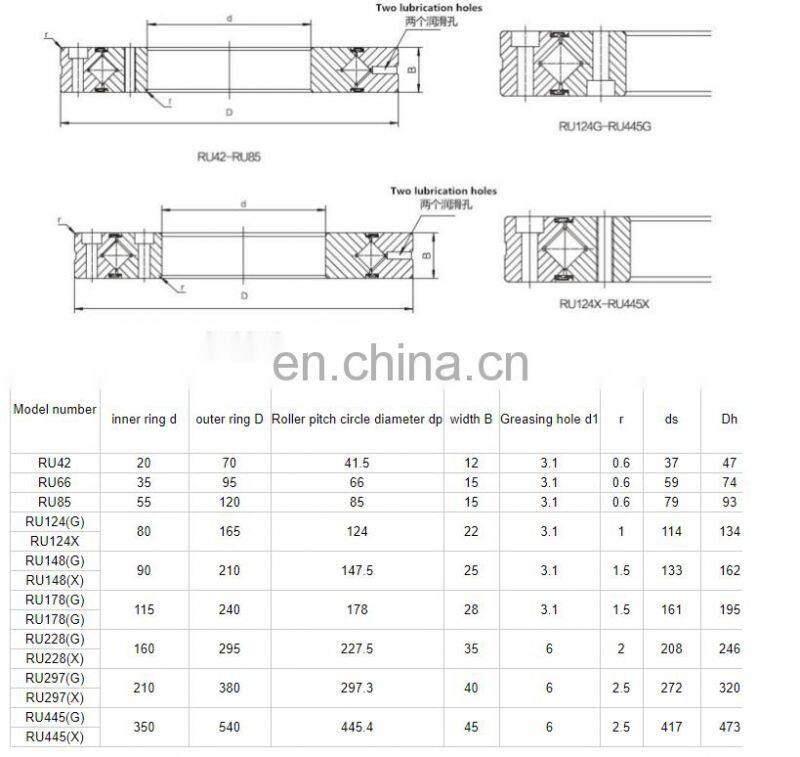

Specification

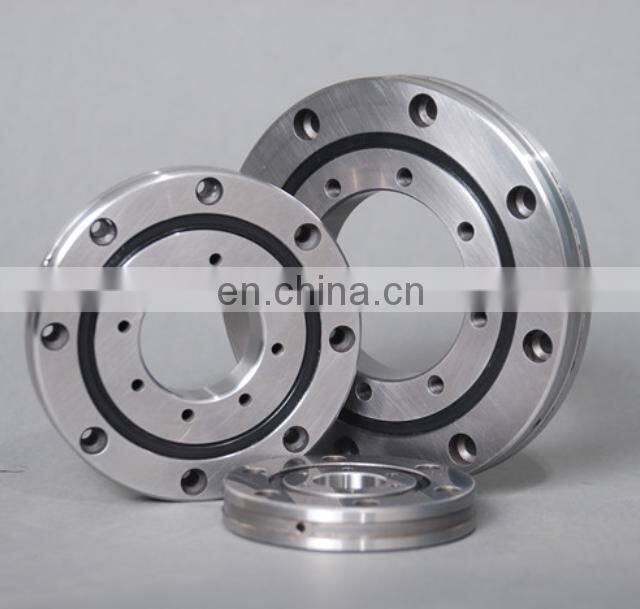

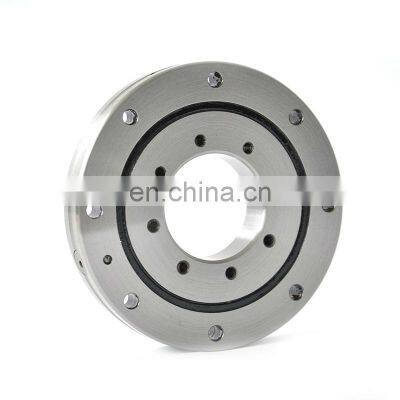

Details Images
Recommend Products
Company Profile
Hunan Austan Machinery Co.,Ltd. has more than 10 years exporting experience. Our main products are linear guideway ,ball screw, ball transfer unit, roller chian,sprocket, bearing,universal joint,cross guideway and so on. We are aslo dealing with HIWIN THK INA REXROTH PMI TBI IKO NSK brand. Various products exports more than 80 countries, we can also provide one stop solution, welcome to send enquiry here.
Packing & Delivery
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 50% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below.
