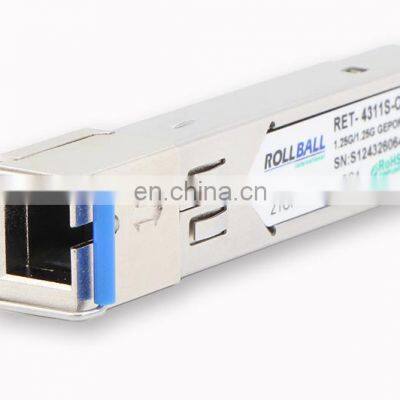

GPON OLT SFP Transceiver Modules/1.25g Gpon Sfp B+/C+/C++ 1490/1310nm 20km sc Port

GEPON OLT SFP PX20++  Clas B+/C+ 20KM 1.25G/1.25G PON OLT transceiver Module TX1490nm/RX1310nm SC Port

Description

1.The gpon sfp 3 com is the high performance module for single fiber by using 1310nm continuous-mode transmitter and 1490nm burst-mode receiver.

2.It is optical line terminal(OLT) for IEEE Std 802.3ah™ -2004 1000BASE-PX20. The optical transceiver is compliant with the Small Form- Factor Pluggable (SFP) Multi-Source Agreement (MSA).

3.The transmitter section uses a 1490nm DFB LD with automatic power control (APC) function and temperature compensation circuitry to ensure stable extinction ratio over all operating temperature range. and is ClassⅠlaser compliant IEC825 and CDRH standards.

4.The receiver has a hermetically packaged APD-TIA (trans-impedance amplifier) pre-amplifier and a limiting amplifier with LVPECL compatible differential outputs.

5.The receiver also supports burst mode RSSI output which is enabled by a trigger. Burst mode RSSI function can satisfy system the demand of monitoring the power from any ONU.

Features

1.Single Fiber Transceiver with single mode SC receptacle

2.1490nm continuous-mode 1.25G/s transmitter with DFB laser

3.1310nm burst-mode 1.25G/s receiver with APD-TIA

4.Single 3.3V power supply

5.LVPECL compatible data input /output

6. Burst mode received signal strength indication (RSSI) output

7.Support more than 24dB dynamic range

8.Complies with IEEE Std 802.3ah™ -2004 1000BASE-PX20

9.Digital diagnostic interface compliant with SFF-8472 Rev 9.4 ,

10.Complies with RoHS directive (2002/95/EC)

11.Operating case temperature:

Standard : 0 to +70°C

Applications

* Ring topologies with fixed and reconfigurable OADMs
* Fast Ethernet, Giga Ethernet
* Fiber Channel

Product List

Absolute Maximum Ratings

Recommended Operating Conditions
