10G WDM SFP+ BIDI TX-1490nm/RX-1550nm 80km BIDI SFP+ Transceiver Module

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

10G SFP+ BIDI TX-1490nm/RX-1550nm 80km BIDI SFP+ Transceiver Module

1. PRODUCT FEATURES

l SFP MSA package with single LC connector

l Typical bidi 1490/1550nm and

1550nm/1490nm for commission

l APD receiver for high sensitivity

l Very low EMI and excellent ESD protection

l Digital Diagnostic Monitor Interface

l Hot pluggable

l Support 9.95Gb/s to 11.1Gb/s serial optical interface

l Up to 80km distance

l Compliant with SFP+ MSA

l High transmission margin

l +3.3V single power supply

l Below <1.5W power consumption

2. APPLICATIONS

l 10GBASE-BX at 10.3125 Gb/s

l Other optical link

3.STANDARD

l SFP+ MSA Compliant

l SFF-8472 reversion 9.5 compliant

l IEEE802.3-2005 compliant

l Telcordia GR-468-CORE compliant

l FCC 47 CFR Part 15,Class B compliant

l FDA 21 CFR 1040.10 and 1040.11,class1 compliant

l RoHS compliant

4.PRODUCT DESCRIPTIONS

RBSFPP-4955192-80D is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gbps,it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to 80km in 9/125um single mode fiber. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

5. Order list

Part Number	Product Description
RBSFPP-2733192-10R	1270nm/1330nm, 10Gbps, 10km, 0ºC ~ +70ºC
RBSFPP-3327192-10R	1330nm/1270nm, 10Gbps, 10km, 0ºC ~ +70ºC
RBSFPP-2733192-20R	1270nm/1330nm, 10Gbps, 20km, 0ºC ~ +70ºC
RBSFPP-3327192-20R	1330nm/1270nm, 10Gbps, 20km, 0ºC ~ +70ºC
RBSFPP-2733192-40R	1270nm/1330nm, 10Gbps, 40km, 0ºC ~ +70ºC
RBSFPP-3327192-40R	1330nm/1270nm, 10Gbps, 40km, 0ºC ~ +70ºC
RBSFPP-2733192-60R	1270nm/1330nm, 10Gbps, 60km, 0ºC ~ +70ºC
RBSFPP-3327192-60R	1330nm/1270nm, 10Gbps, 60km, 0ºC ~ +70ºC
RBSFPP-4955192-80R	1490nm/1550nm, 10Gbps, 80km, 0ºC ~ +70ºC
RBSFPP-5549192-80R	1550nm/1490nm, 10Gbps, 80km, 0ºC ~ +70ºC

6. Normal 10G Product list

Part Number

Data Rate

Wavelength

Distance

Package

Temp.

Source

XFP (10G)

RXFP-85192-SRD

10G

850

300M

XFP

0~70

VSCEL+PIN

RXFP-31192-LRD

10G

1310

10KM

XFP

0~70

EML+PIN

RXFP-55192-ERD

10G

1550

40KM

XFP

0~70

EML+PIN

RXFP-55192-ZRD

10G

1550

80KM

XFP

0~70

EML+APD

X2 (10G)

RX2-85192-SRD

10G

850

300M

0~70

VSCEL+PIN

RX2-31192-LRD

10G

1310

10KM

0~70

DFB+PIN

RX2-55192-ERD

10G

1550

40KM

0~70

EA-DFB+PIN

RX2-55192-ZRD

10G

1550

80KM

0~70

EA-DFB+APD

XENPAK (10G)

RXENPAK-85192-SRD

10G

850

300M

XENPAK

0~70

VSCEL+PIN

RXENPAK-31192-LRD

10G

1310

10KM

XENPAK

0~70

DFB+PIN

RXENPAK-55192-ERD

10G

1550

40KM

XENPAK

0~70

EA-DFB+PIN

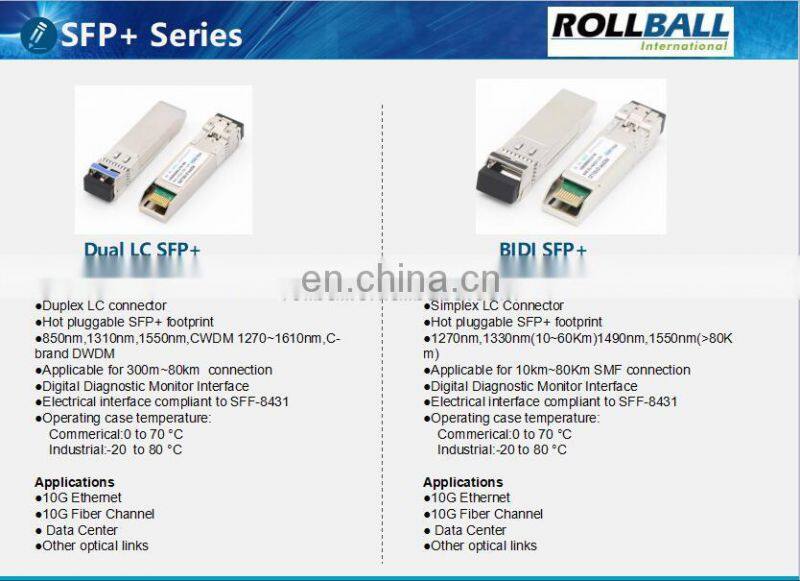

BIDI SFP+ (10G)

RBSFPP-2733192-10D	10G	1270Tx/1330RX	10KM	SFP+	0~70	DFB+PIN
RBSFPP-3327192-10D	10G	1330Tx/1270RX	10KM	SFP+	0~70	DFB+PIN
RBSFPP-2733192-40D	10G	1270Tx/1330RX	40KM	SFP+	0~70	DFB+PIN
RBSFPP-3327192-40D	10G	1330Tx/1270RX	40KM	SFP+	0~70	DFB+PIN
RBSFPP-2733192-60D	10G	1270Tx/1330RX	60KM	SFP+	0~70	DFB+PIN
RBSFPP-3327192-60D	10G	1330Tx/1270RX	60KM	SFP+	0~70	DFB+PIN
RBSFPP-2733192-80D	10G	1490Tx/1550RX	80KM	SFP+	0~70	DFB+PIN
RBSFPP-3327192-80D	10G	1550Tx/1490RX	80KM	SFP+	0~70	DFB+PIN

SFP+ (10G)

RSFPP-85192-SRD

10G

850

300M

SFP+

0~70

VSCEL+PIN

RSFPP-31192-LRD

10G

1310

10KM

SFP+

0~70

DFB+PIN

RSFPP-55192-ERD

10G

1550

40KM

SFP+

0~70

EML+PIN

RSFPP-55192-ZRD

10G

1550

80KM

SFP+

0~70

DWDM XFP (10G) with DDMI, XX is C-Band and L-Band ITU, XX=17, 18, 19…, which 17=1563.86nm, 18=1563.05nm…

RDXFP-XX192-40D

10G

XXXX.XX

40KM

DWDM XFP

0~70

DFB+PIN

RDXFP-XX192-80D

10G

XXXX.XX

80KM

DWDM XFP

0~70

DFB+PIN

CWDM XFP(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm

RCXFP-XX192-10D

10G

(1270-1330nm)

10KM

CWDM XFP

0~70

DFB+PIN

RCXFP-XX192-40D

10G

(1470-1610nm)

40KM

CWDM XFP

0~70

EML+PIN

CWDM SFP+(10G) with DDMI, XX=27, 29, 31…61, which 27=1270nm, 29=1290nm, and 61=1610nm

RCSFPP-XX192-10D

10G

(1270-1330nm)

10KM

CWDM SFP+

0~70

DFB+PIN

RCSFPP-XX192-40D

10G

(1270-1330nm)

40KM

CWDM SFP+

0~70

DFB+PIN

6.Compatible brand
