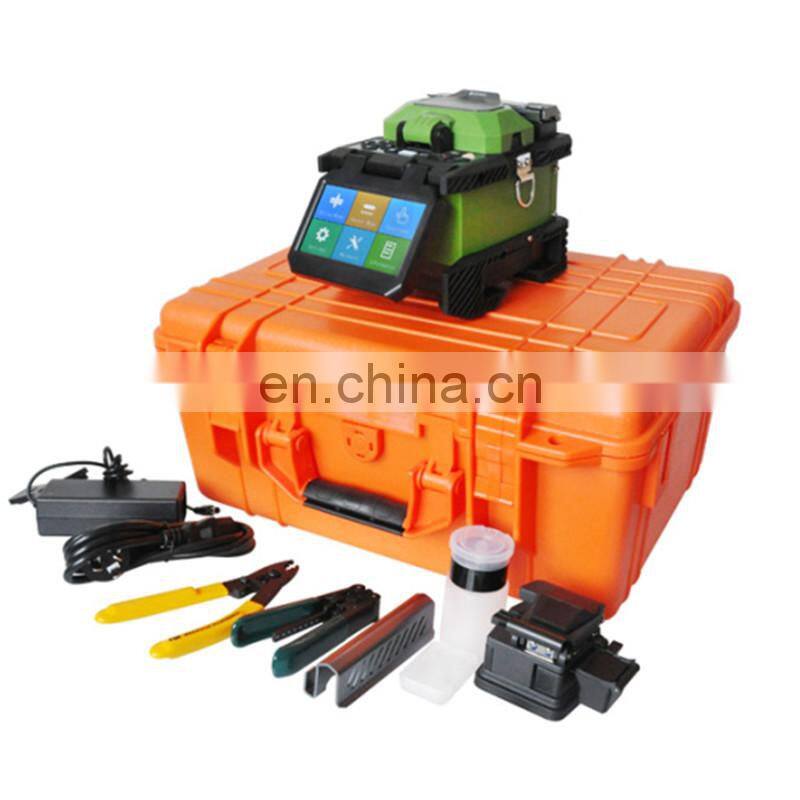

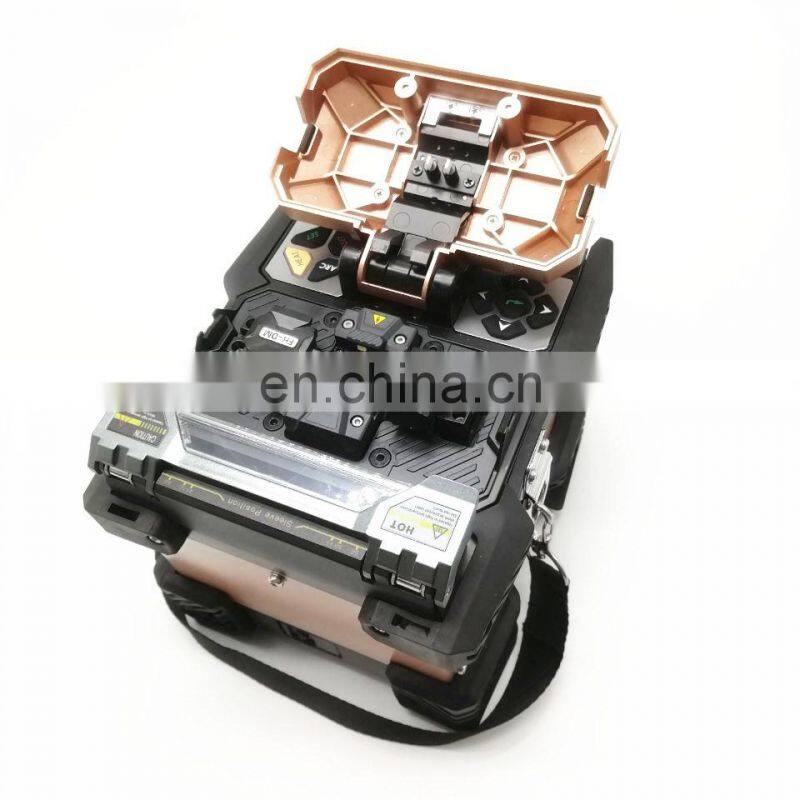

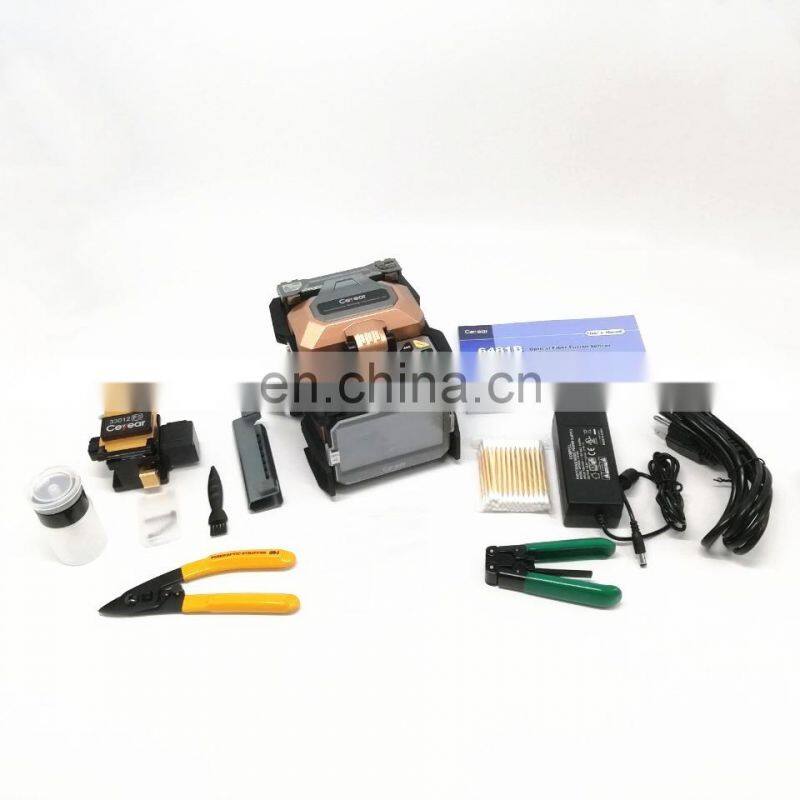

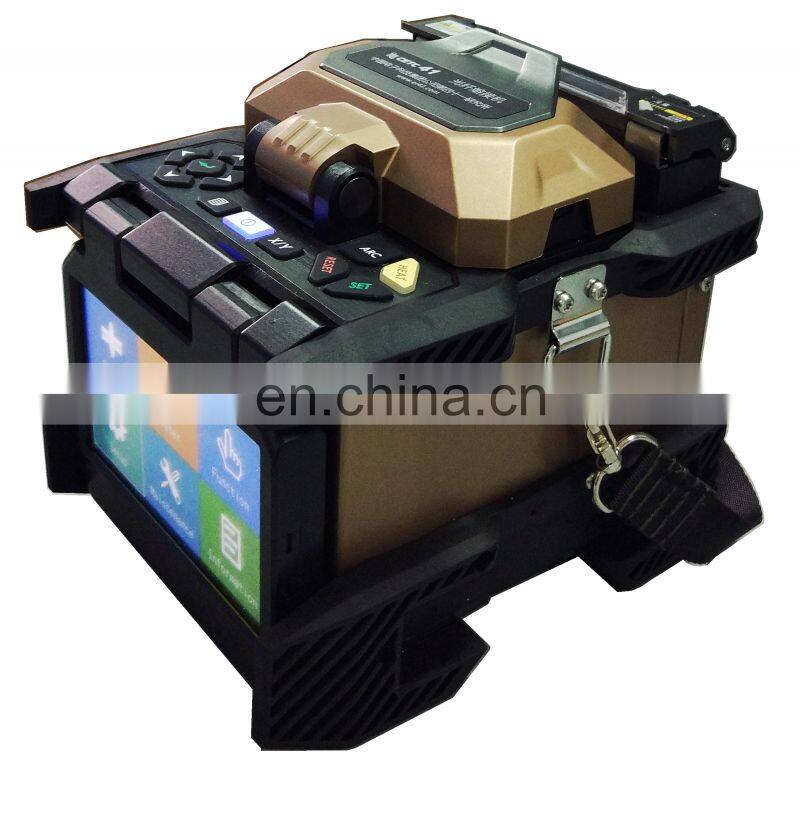

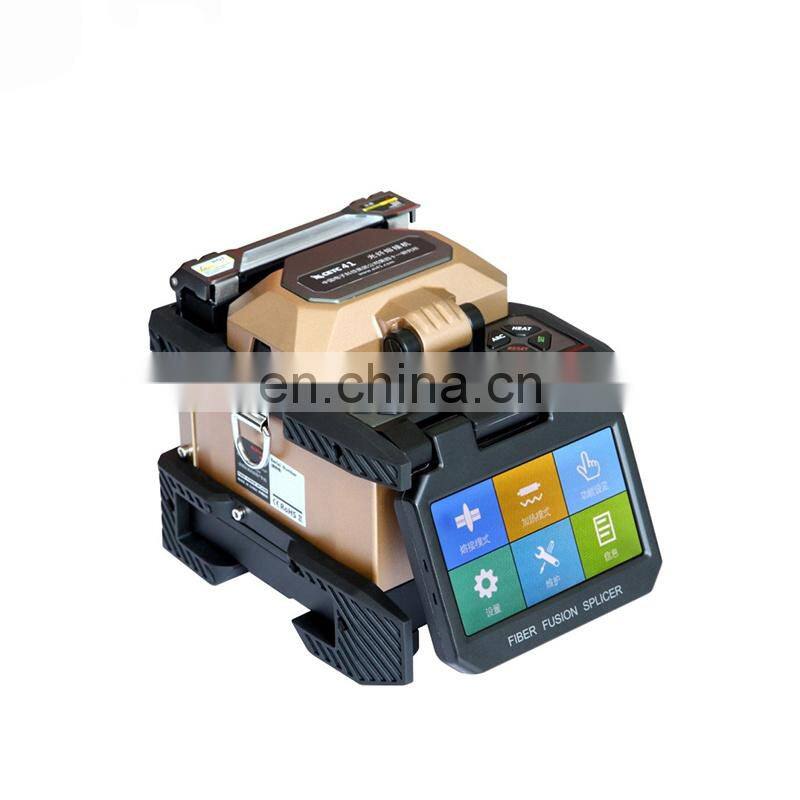

High Quality Automatic Splicing Machine AV6481 Optical Fiber Fusion Splicer
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Distributor/Wholesaler
Year Established:
1993
Annual Export Value:
Below US$1 Million
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Hot Sale FTTH Equipment AV6481 Fusion Splicer Splicing Machine AV6481 Fusion SplicerNegotiableMOQ: 1 -
Hot Sale FTTH Equipment AV6481 Six Motors Signal Fire Fusion Splicer Splicing Machine AV6481 Fusion SplicerNegotiableMOQ: 1
-
LC/FC/SC Otdr Dead Zone Eliminator Fiber Jumper Box OTDR Test Extension Cord OTDR Cable Launch BoxNegotiableMOQ: 1
-
Hot Sale Fiber Optic Tool Kit for FTTH SolutionNegotiableMOQ: 1
-
0.8m Event Dead Zone SM MM OTDR 1310/1550/1625nm 38/35/36dB Ftth Testers & ToolsNegotiableMOQ: 1
The rich functions and ultra-low splice loss make the splicer adaptive to fiber splicing in various
environments. Multiple fusion modes and heating modes are available to meet various customers’ demands. Fiber loading becomes more convenient and accurate thanks to the ceramic V-groove of
high precision, which is easy for clean and maintenance. The splicer is capable of dual-directional

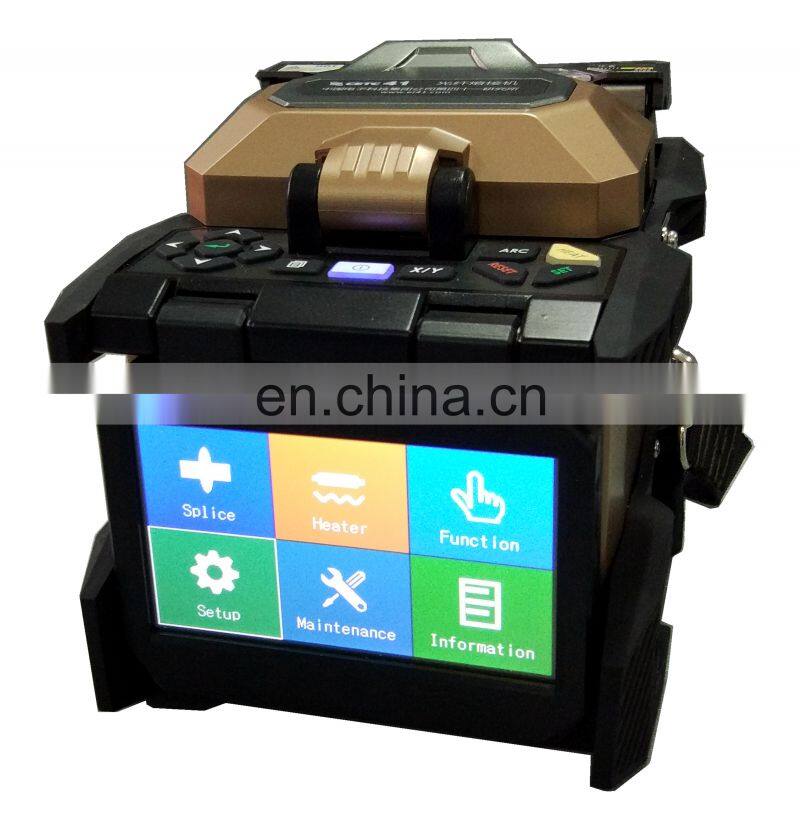

fusion. The monitor is a touch screen with GUI for smooth operation. The modular pluggable
lithium-ion battery with large-capacity ensures long-time field operations. The auto environmental
compensation system greatly improves adaptability of the splicer to extreme environments to
ensure your work smoothly and continuously
Specification
item | value |
Model Number | SNT-FOSM |
Type | Fiber fusion splicer |
Place of Origin | Qingdao |
Brand Name | SUNET |
Single-Mode Fiber | Singlemode |
Multi-Mode Fiber | Mutimode |
No. of Fiber | 1 |
Use | FTTH |
Application | FTTH |
Warranty Time | 18 months |
Product name | Fiber Optic Fusion Splicer |
Motor qty | 4 motor, 6 motor |
Splicing time (typical) | 7s (Fast mode) |
Battery capacity | 11.1V, 6800mAh |
Alignment method | Cladding alignment, Core alignment |
Dimension | 120mm (W)x130mm (H)x154mm (D) |
Optical fiber diameter | Cladding: 80~150μm, coating layer: 0.1~3mm |
Cleave length | 5~16mm ;10mm |
Splice loss (typical) | 0.02dB (SMF); 0.01dB (MMF); 0.04dB (DSF); 0.04dB (NZDSF) |
Return loss | Better than 60 |
