Sc APC-Sc Upc 3m Simplex Mode 2.0mm or 3.0mm FTTH Optical Patchcord Jumper

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Description

1. Fiber optic patch cords are available in all standard connector styles, all standard fiber types and all standard cable configurations to meet all your interconnection needs. They are available in any length

2.The patch cord are factory terminated, assembled, tested and inspected prior to shipment.

3.All patch cords are manufactured using OFNR riser grade cable, LSZH, plenum, and premium customized specs available upon request, and 100% factory tested to ensure the performance to meet TIA/EIA-568-8-2, iso11801:2002 and EN 50173-1 standards. All assemblies are tested to meet Telcordia GR326-CORE.

Feature:

1.Price-CompetitiveLow Insertion Loss & PDLFactory-terminated and TestedFiber Options: G.652 /G.657/OM1/OM2/OM3 and PM Panda FiberConnector Options: FC/SC/LC/ST/MU/E2000/MT-RJ/MPO/MTPPolishing Options: PC/UPC/APCFeature Connector with Ceramic Ferrules

Applications

1.Access Network
2.Telecom/CATV Systems

3.FTTx

Specifications

Parameters	Standard Fiber Cable Assemblies

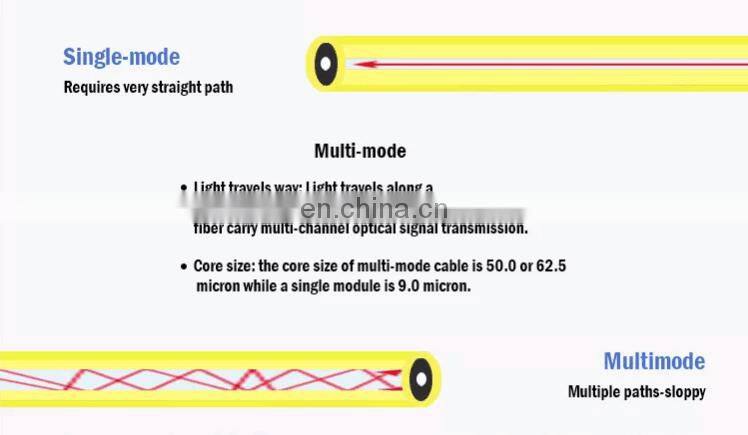

Fiber Type	SM(G.652/G.657)	MM(OM1/OM2/OM3/OM4/OM5)

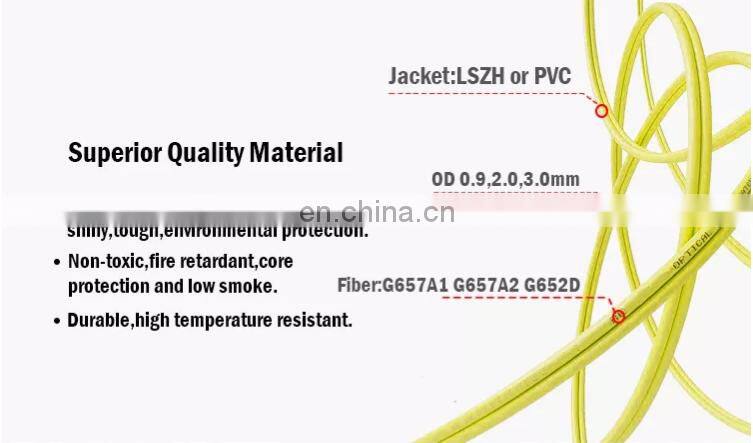

Jacket Materials	LSZH/PVC
Connector Type	FC/SC/LC/ST/MU/DIN/SMA/E2000/MT-RJ/MPO/MTP
Ferrule Materials	Ceramic
Testing Wavelengths	1310±30/1550±30nm	850±30/1300±30nm
Insertion Loss(dB)	≤0.25dB	≤0.3dB
TIA/EIA-455-107	(PC/UPC/APC)	(PC/UPC)
Return Loss(dB)	≥50dB (PC/UPC)	≥40dB (PC/UPC)
TIA/EIA-455-107	≥60dB(APC)	≥40dB (PC/UPC)
Exchange-ability	≤0.2dB
Cable Assemblies	Pigtail/Simplex/Duplex/Fan-out Patch cord
Operating Temperature(°C)	-10~+70
Storage Temperature(°C)	-40~+85
Package	1pieces/bag
