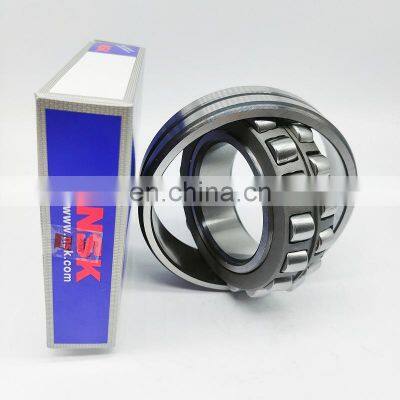

NSK Good Quality Spherical Roller Bearing SX-24160 24164 24168 CA CC MB E E1 EAE4 K W33

FOB Price

Negotiable

1 (Min. Order)

Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

Products Description

Welcome to choose UFINE BEARING CO.,LTD.

our adwantages

1. 15 years bearing products manufacturing and exporting experiences.
2. OEM order and non-standard bearing order can be accepted.
3. Many sizes of bearing are available. Large quantity bearing can be provided.
4. To respect customers, you can choose the loading port.
5. A certain number of free sample can be provide to support our customer's after-sale services and warranty.

Description: Spherical roller bearing
Race: we use the most advanced technology-cold extrusion process. Besides, the race will make two or three times temper to guarantee its high precision.
Rolling element: we use the rolling technology to process the roller and the steel ball of high precision bearing, the most
advantage of our technology is to promote productive and productive efficiency. At the same time, our technology can prolong the bearing working life. The hardness and the diamention stability will also promote.
Steel cage: in order to avoid avoid cracks and guarantee the hardness, we use pattern "high temperature+long time", our cage of high precision bearing have reached advanced level in china at surface abrasion resistance and fatigue strength.
C(J), CC--Two window-type steel cages, flangeless inner ring and guide ring centre on the inner ring
EC(J), ECC(J)--Two window-type steel cages, flangeless inner ring, guide ring centre on the inner ring and reinforced roller
complement.
CA--One-piece machined brass cage, double-pronged, retaining flanges on the inner ring and guide ring centre on the inner ring CAF-- As CA, but with a steel cage.
ECA, ECAC-- Reinforced roller complement, one-piece machined brass cage, double-pronged, retaining flanges on the inner ring,guide ring centred on the inner ring.
ECAF-- As ECA, but with a steel cage.
E-- For bearings with a bore diameter d ≤ 65 mm: Two pressed window-type steel cages, flangeless inner ring and guide ring centred on the inner ring.
CAFA-- One-piece machined steel cage, double-pronged, centred on the outer ring raceway, retaining flanges on the inner ring and guide ring centred on the inner ring
Features:
Double row spherical roller bearing for applications that support radial and oscillating axial loads
C4 radial clearance allows thermal expansion for continuous operating temperatures up to 200 degrees C/392 degrees F
Straight bore for fitting to a conventional cylindrical shaft
Outer ring-guided brass cage evenly spaces rollers for reduced friction, vibration, and noise
Open design, circumferential groove and three lubrication holes in the outer ring allow for lubrication in place

Types of Spherical Roller Bearing
- CA/W33 Brass cage
- CC/W33 Steel cage
- MB/W33 Brass cage
- E /W33 Steel cage
- E1/W33 Steel cage

Bearing introduction:
Model :SX-24160 24164 24168
LEVEL: Z2V2 P5
STOCK:20000 PCS
CONTACT: ZACH YU

SPHERICAL ROLLER BEARING MODEL TABLE
MODEL	SIZE	MODEL	SIZE
22205CC CA E MB W33	25x52x18mm	22226CC CA E MB W33	130x230x64mm
22206CC CA E MB W33	30x62x20mm	22228CC CA E MB W33	140x250x68mm
22207CC CA E MB W33	35x72x23mm	22230CC CA E MB W33	150x270x73mm
22208CC CA E MB W33	40x80x23mm	22232CC CA E MB W33	160x290x80mm
22209CC CA E MB W33	45x85x23mm	22234CC CA E MB W33	170x310x86mm
22210CC CA E MB W33	50x90x23mm	22236CC CA E MB W33	180x320x86mm
22211CC CA E MB W33	55x100x25mm	22238CC CA E MB W33	190x320x92mm
22212CC CA E MB W33	60x110x28mm	22240CC CA E MB W33	200x360x98mm
22213CC CA E MB W33	65x120x31mm	22244CC CA E MB W33	220x400x108m
22214CC CA E MB W33	75x125x31mm	22248CC CA E MB W33	240x440x120mm
22215CC CA E MB W33	75x130x31mm	22252CC CA E MB W33	260x480x130mm
22216CC CA E MB W33	80x140x33mm	22256CC CA E MB W33	280x500x130mm
22217CC CA E MB W33	85x150x36mm	22260CC CA E MB W33	300x540x140mm
22218CC CA E MB W33	90x160x40mm	22264CC CA E MB W33	300X580X150mm
22219CC CA E MB W33	95x170x43mm	22272CC CA E MB W33	360X580X150mm
22220CC CA E MB W33	100x180x46mm	22276CC CA E MB W33	380X700X175mm
22222CC CA E MB W33	110x200x53mm	22276 CCK CAK W33	380X700X175mm
22224CC CA E MB W33	120x215x58mm	22276 MBK EK W33	380X700X175mm

Company Profile

Company profile

UFINE BEARING CO., LTD is a Chinese bearing manufacturer which is located in the city of JiNan - the provincial capital of ShanDong province, China. UFINE BEARING concentrates on manufacturing all kinds of bearings as our own brand “UFE”, mainly include roller bearings and ball bearings. And we have also set a long-term cooperation with several famous bearing companies in the world. The products we produce have already been sold to all over China and also abroad. The bearing brand “UFE” enjoys high states in the rolling bearing industry of China and is highly praised by our customers. What we offer : 1.Good quality control 2.Highly competitive prices 3. state-of-art technology products 4. Best professional team of lifestyle consumer electronics. 5.Smooth communication 6) Effective OEM&ODM service.

Factory and Warehouse

Product packaging

Shipping service

FAQ

1.What is the producing process?

A:Production process including raw material cutting,machine processing,grinding,accessories cleaning,assemble,cleaning,

stoving,oil coating,cover pressing,testing,testing,package.

2.How to control the products quality?

A:Combining advanced equipment and strict management,we provide high standard and quality bearings for our customers all over the word.

3: Are you trading company or manufacturer ? A: We are factory. 4: How long is your delivery time? A: Generally it is 5-10 days if the goods are in stock. or it is 15-30 days if the goods are not in stock, it is according to quantity. 5: Do you provide samples ? is it free or extra ? A: Yes, we could offer the sample for free charge but do not pay the cost of freight. 6: What is your terms of payment ? A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us as below
